Quick Details
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
1600*650*1550 MM
-
Weight:
-
250 KG
-
Refrigeranting capacity:
-
15000Kcal/h
-
Refrigerant:
-
R22/R134a/R407c/R410a
-
Compressor Brand:
-
USA Copeland
-
Compressor power:
-
5 Hp
-
Pump power:
-
0.75KW
-
Pump Flow Rate:
-
100 L/min
-
Water tank:
-
100L SUS 304
-
Condenser Type:
-
Efficiency Copper Aluminum Fins
-
Evaporator type:
-
Stainless Steel 316 Shell Tube
-
Keywords:
-
5hp water chiller
Quick Details
-
Condition:
-
New
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HUANQIU
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
1600*650*1550 MM
-
Weight:
-
250 KG
-
Refrigeranting capacity:
-
15000Kcal/h
-
Refrigerant:
-
R22/R134a/R407c/R410a
-
Compressor Brand:
-
USA Copeland
-
Compressor power:
-
5 Hp
-
Pump power:
-
0.75KW
-
Pump Flow Rate:
-
100 L/min
-
Water tank:
-
100L SUS 304
-
Condenser Type:
-
Efficiency Copper Aluminum Fins
-
Evaporator type:
-
Stainless Steel 316 Shell Tube
-
Keywords:
-
5hp water chiller
Product Description

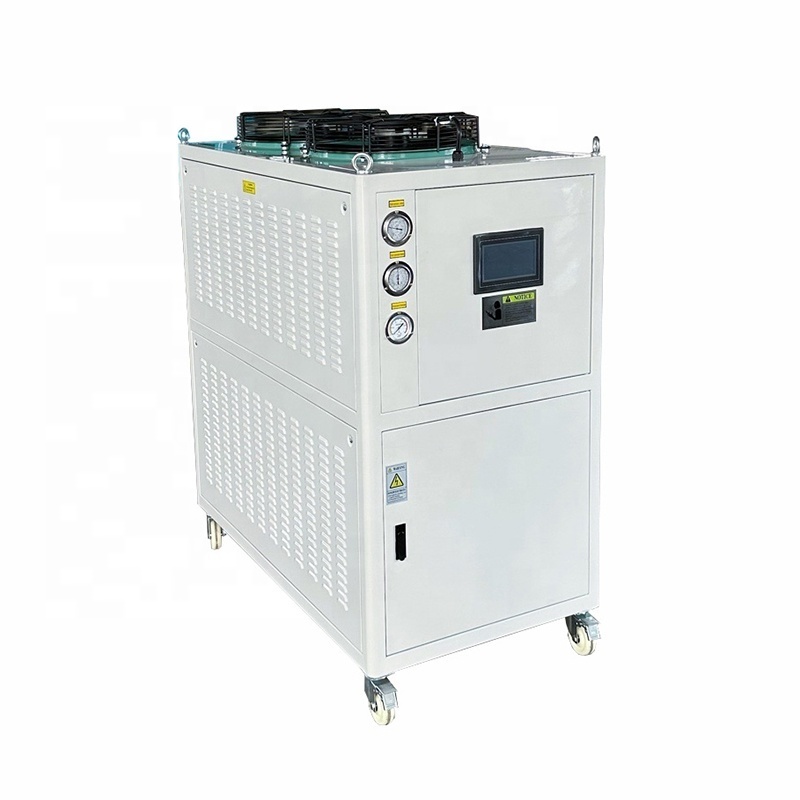

CE Standard 5HP Air Cooled Water Chiller For Pet Bottle Blowing Machine
The chiller is divided into two types:
Air-cooled chiller
and
Water-cooled chiller
. The chiller is divided into a low-temperature chiller and a normal-temperature chiller in temperature control. The normal temperature is generally controlled the water within the range of 0 to 35 degrees. The temperature control of the cryostat is generally in the range of 0 degrees to minus 45 degrees.
Application Range.
Plastic industry:
Accurately control the mold temperature of various plastic processing.
Electronics industry:
Stabilizing the molecular structure inside the production line of electronic components.
Electroplating industry:
Control plating temperature, increase the density and smoothness of the plated parts.
Machinery industry:
Control the pressure oil temperature of the oil pressure system.
Construction industry:
chilled water for concrete.
Vacuum coating:
Control the temperature of the vacuum coating machine.
Food industry:
Controlling the temperature of fermented foods.
Product Details
Protection Measures
1.Alarm for lack of phase and phase error
2.Alarm for pump overload
3.Alarm for compressor overload
4.Alarm for anti-freezing
5.Alarm for compressor high pressure
6.Alarm for compressor low pressure
7.Protection for low water flow velocity
8.Protection for the shutdown due to blower delay
2.Alarm for pump overload
3.Alarm for compressor overload
4.Alarm for anti-freezing
5.Alarm for compressor high pressure
6.Alarm for compressor low pressure
7.Protection for low water flow velocity
8.Protection for the shutdown due to blower delay
Parameter
SML-F Series Air-cooled Industrial Chiller.
SML-S Series Water-cooled Industrial Chiller.
