Quick Details
-
Mounting Type:
-
easy
-
Description:
-
Photoelectric Sensor
-
Model Number:
-
G100-1
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Winston
-
Theory:
-
Photoelectric
-
Output:
-
Analog SENSOR, Analog SENSOR
-
Material:
-
Metal
-
Certificate:
-
CE
-
Color:
-
Blue
-
Protection grade:
-
IP54
-
Detection distance:
-
1m
-
Warranty:
-
12 Months
Quick Details
-
Usage:
-
Detection distance
-
Series:
-
G100-1
-
Features:
-
Photoelectric Sensor
-
Mounting Type:
-
easy
-
Description:
-
Photoelectric Sensor
-
Model Number:
-
G100-1
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Winston
-
Theory:
-
Photoelectric
-
Output:
-
Analog SENSOR, Analog SENSOR
-
Material:
-
Metal
-
Certificate:
-
CE
-
Color:
-
Blue
-
Protection grade:
-
IP54
-
Detection distance:
-
1m
-
Warranty:
-
12 Months

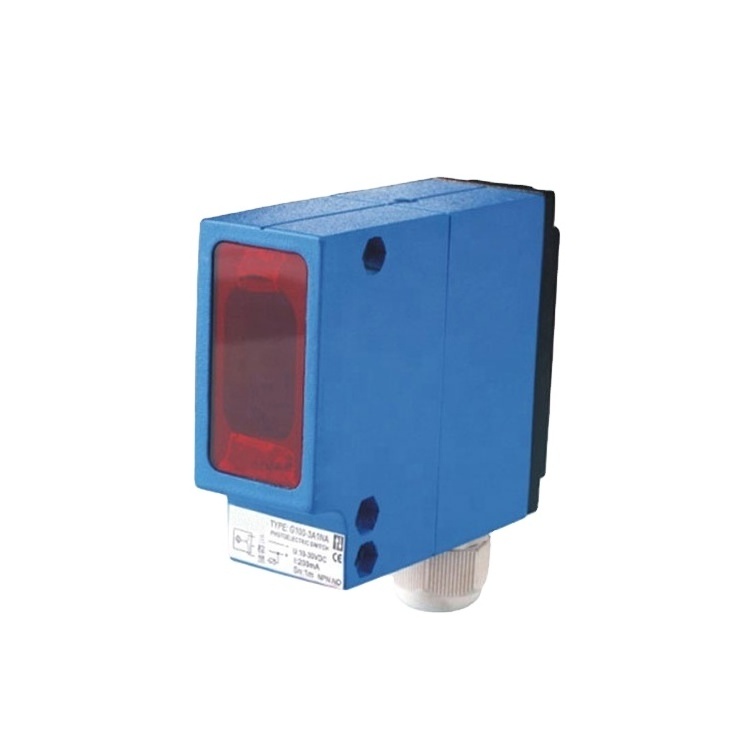

Winston G100 1m NPN PNP IP54 CE Diffuse Type Infrared Ray Photoelectric Sensor Switch
Product Description
Structural category
| Outward appearance code | G100 | ||||
| Outward appearance illustration |
|
||||
| Overall dimension |
|
||||
| DETECTION DISTANCE | 1m | ||||
| Diffuse type | DC10-30VDC | NPN | NO | G100-3A1NA | |
| NC | G100-3A1NB | ||||
| NO+NC | G100-3A1NC | ||||
| PNP | NO | G100-3A1PA | |||
| AC90-250VAC | NC | G100-3A1PB | |||
| NO+NC | G100-3A1PC | ||||
|
SCR Control
Hable silicon |
NO | G100-2A1LA | |||
| NC | G100-2A1LB | ||||
| Relay output | G100-2A1JC | ||||
| DC/SCR Control output | DC:200mA AC:300mA relay:2A | ||||
| DC/AC Consumption current | DC<15mA AC<10mA | ||||
| DC/AC Response time | DC<2ms AC<20ms | ||||
| Directional angle | 3°-10° | ||||
| Detected object | transparent or opaque body | ||||
| Working environment temperature | -25℃~+55℃ | ||||
| Intensity of illumination of working environment |
Sunlight under 10000LX
Incandescent lamp unber 3000LX |
||||
| Shell materia | Metal | ||||
| Protection grade | IP54 | ||||
Model composition and definition
Application illustration
