Quick Details
-
Charging Port:
-
Type1/Type2/Tesla
-
Connection:
-
Type 1, Type 2
-
Voltage:
-
110V-250V, 110V/250V
-
Place of Origin:
-
Suzhou
-
Brand Name:
-
NIUERA
-
Model Number:
-
XNY-ZLP01-16
-
Design Style:
-
New design
-
Standard:
-
EN 61851
-
Power:
-
3.5KW/ 7KW/ 10KW
-
Current:
-
16A/32A/40A
-
Contract Resistance:
-
0.5mΩ max
-
Withstand Voltage:
-
1500V
-
Display Screen:
-
LCD
-
Charging Interface::
-
Type1/Type2/Tesla + 5m cables or custom cable length
-
Material:
-
Thermoplastic
-
Operating Temperture:
-
-30℃-50℃
Quick Details
-
Function:
-
Stereo, Colorful lights, screen display, Signal Stabilization, Voltage Monitoring, Adjustable Current
-
Car Fitment:
-
BYD, Hongqi
-
Type:
-
ev charger, portable ev chargers
-
Charging Port:
-
Type1/Type2/Tesla
-
Connection:
-
Type 1, Type 2
-
Voltage:
-
110V-250V, 110V/250V
-
Place of Origin:
-
Suzhou
-
Brand Name:
-
NIUERA
-
Model Number:
-
XNY-ZLP01-16
-
Design Style:
-
New design
-
Standard:
-
EN 61851
-
Power:
-
3.5KW/ 7KW/ 10KW
-
Current:
-
16A/32A/40A
-
Contract Resistance:
-
0.5mΩ max
-
Withstand Voltage:
-
1500V
-
Display Screen:
-
LCD
-
Charging Interface::
-
Type1/Type2/Tesla + 5m cables or custom cable length
-
Material:
-
Thermoplastic
-
Operating Temperture:
-
-30℃-50℃

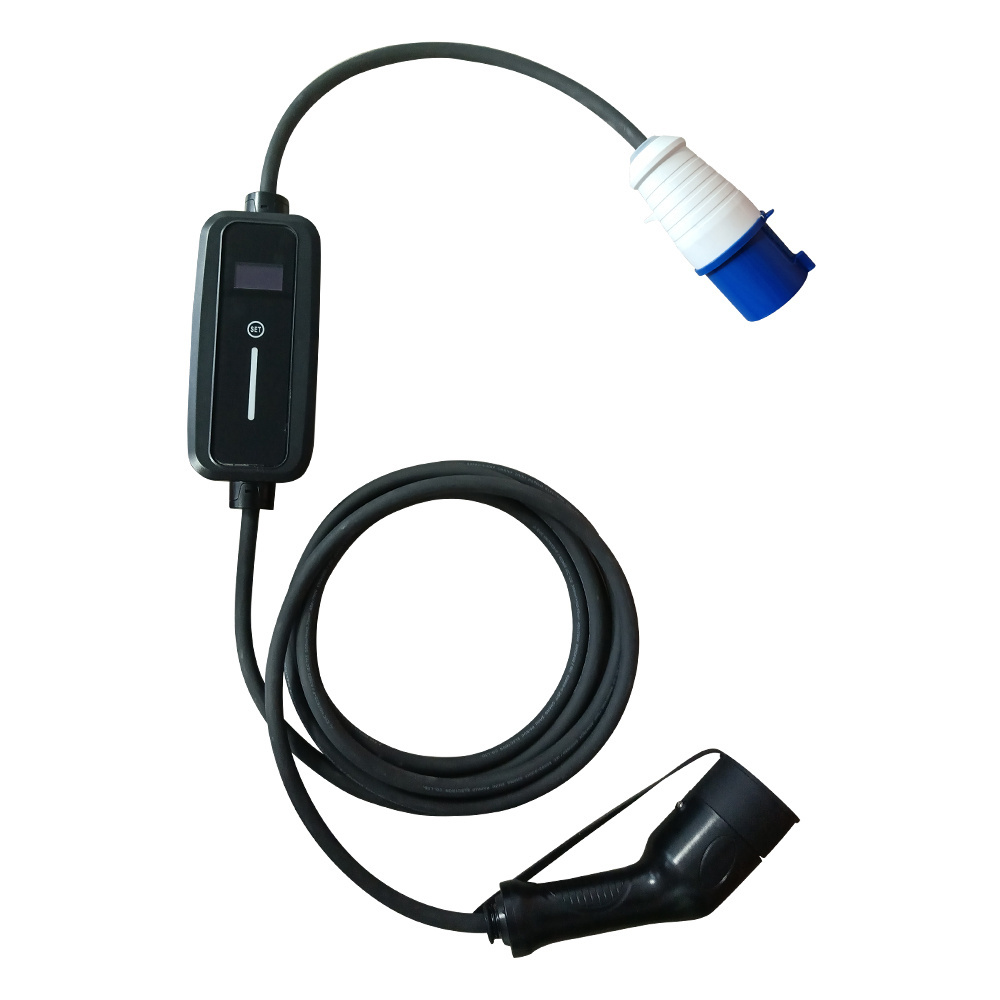

Product Description
Both TYPE1&TYPE2
Specification
ELECTRICAL PERFORMANCE
Rated current:16A/32A
(Single phase)
Rated Power:3.5KW/7KW
Rated Power:3.5KW/7KW
Operation voltage:250V
MECHANICAL PROPERTIES
Mechanical life:no-load plug in/out >10000
times
lmpat ofexternal force:can afford 1M drop
Coupledinsertion force:45N-100N
APPLIED MATERALS
Case material: thermoplastic,flame retardant grade UL94 V-0
Terminal:Copper alloy,silver plating
Operating temperature:-30°C-+ 50
|
CONTROL BOX FUNCTION
|
|
|
|
|
||||
|
Leakage protection
|
Overvoltage under-voltage protection
|
Over load protection
|
Ground protection
|
Over-temperature protection
|
||||
|
item
|
value
|
|
Type
|
ev charger, portable ev chargers
|
|
Function
|
Stereo, Colorful lights, screen display, Signal Stabilization, Voltage Monitoring, Adjustable Current
|
|
Charging Port
|
no
|
|
Connection
|
Type1 & Type 2
|
|
Voltage
|
110V/250 V
|
|
Warranty
|
2 years
|
|
Place of Origin
|
Suzhou
|
|
Brand Name
|
NIUERA
|
|
Model Number
|
XNY-ZLP01-16
|
|
Design Style
|
New design
|
|
Standard
|
EN61851
|
|
Power
|
3.5KW/ 7KW/10KW
|
|
Current
|
16A/32A/40A
|
|
Contract Resistance
|
0.5mΩ max
|
|
Withstand Voltage
|
1500V
|
|
Display Screen
|
LCD
|
|
Charging Interface:
|
Type1/Type2 + 5mcables or custom cable length
|
|
Material
|
Thermoplastic
|
Product Features
1.Connect the input
Connect wall power
2.Put the charging gun
Connect the on-board charging
interface
3.The interface and indicators of the charging box show normal
4.The vehicle is charging
5.Unplug the charging gun
6.Unplug the input plug
