Quick Details
-
Brand Name:
-
source & peak
-
Model Number:
-
YL1
-
Max. Current:
-
1A
-
Working current:
-
1(1)A
-
Working voltage:
-
AC250V
-
Insulation resistance:
-
100MΩ 500VDC
-
Color:
-
White
-
Contact resistance:
-
≤50mΩ
-
Withstand voltage:
-
AC1500V,50/60Hz, 1min
-
Electric life:
-
10000 times
-
Certification:
-
CQC,TUV,CB,CE, CQC,CE,CB,TUV
-
Materials:
-
PA66/PC
-
Product name:
-
Factory direct supply electrical wall fan cord swtch
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
source & peak
-
Model Number:
-
YL1
-
Max. Current:
-
1A
-
Working current:
-
1(1)A
-
Working voltage:
-
AC250V
-
Insulation resistance:
-
100MΩ 500VDC
-
Color:
-
White
-
Contact resistance:
-
≤50mΩ
-
Withstand voltage:
-
AC1500V,50/60Hz, 1min
-
Electric life:
-
10000 times
-
Certification:
-
CQC,TUV,CB,CE, CQC,CE,CB,TUV
-
Materials:
-
PA66/PC
-
Product name:
-
Factory direct supply electrical wall fan cord swtch
|

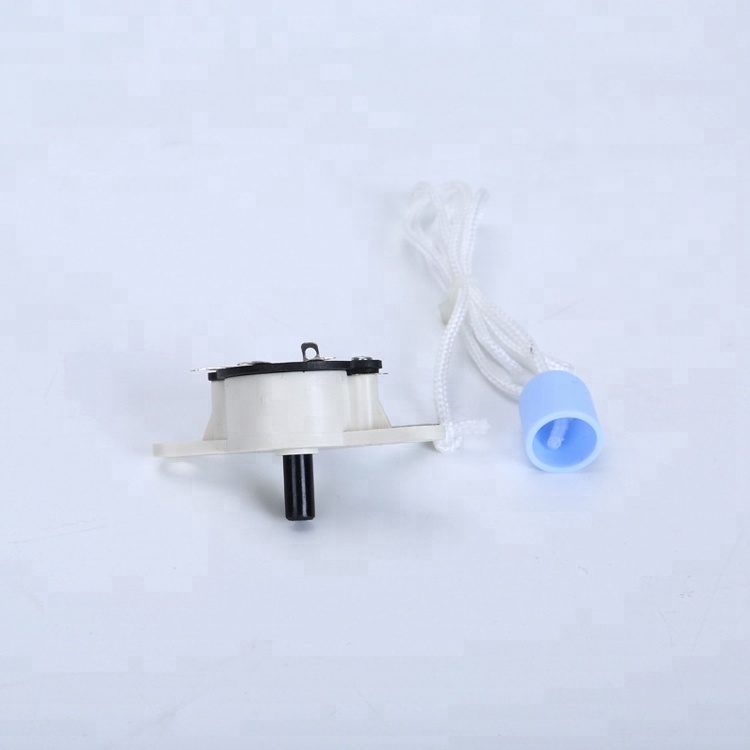

Product Name |
Pull cord switch |
|
|
Type |
YL1 |
|
|
Certification |
YUV,CE,CB,CQC |
|
|
Working Current |
1(1)A |
|
|
Working Voltage |
AC250V |
|
|
Insulation Resistance |
100MΩ 500VDC |
|
|
Contact Resistance |
≤50mΩ |
|
|
Withstand Voltage |
Between homopolardisjoint terminals |
AC1500V, 50/60Hz, 1min |
|
|
Between electrical metal parts and earth |
AC2000V, 50/60Hz, 1min |
|
|
Between terminals and de-energized metal parts |
AC2000V, 50/60Hz, 1min |
|
Electric Life |
10000 times |
|
|
Vibration Resistance |
10~55Hz, 1.5 Double-amplitude |
|
|
Working temperature and humidity |
-25℃~+85℃ |
|
|
Materials |
PA66/PC |
|
|
Electrical Production Level |
Class I |
|
|
Protective Structure |
IEC IP40 |
|
