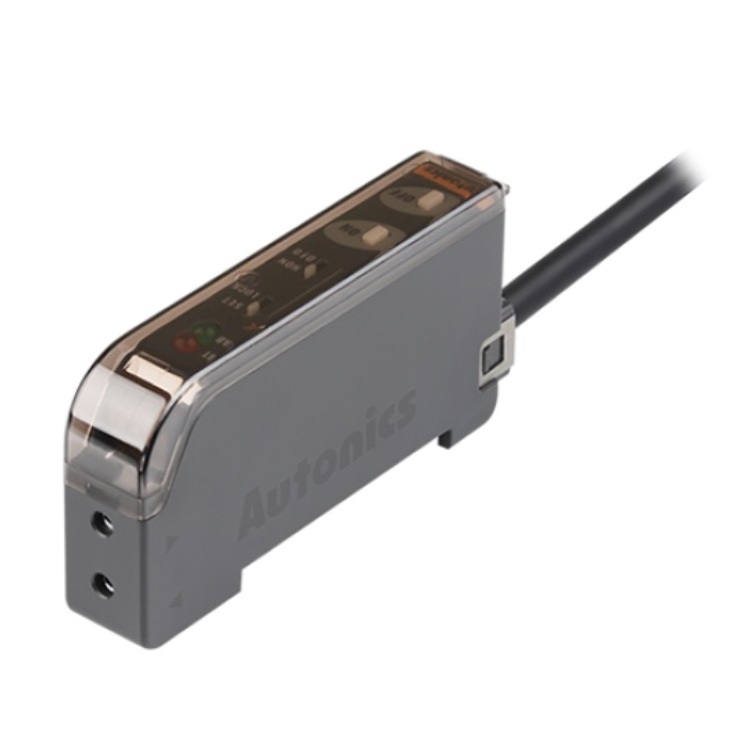

Autonics BF4R fiber optic sensor amplifier EAC photo electric switch

Korea Autonics BF4R fiber optic sensor amplifier EAC photo electric switch
High reliability of fiber optic amplifier for convenient mounting
High performance fiber optic amplifier with convenient mounting structure
standout device that realizes high speed response of under 0.5ms,to detect small targets and mount to tiny place.
it provides users convenient work environment
with external synchronization input function,
mutual interference protection, self-diagnosis function.
*High speed response : Under 0.5ms
*Auto sensitivity setting(Button setting) / Remote sensitivity setting.
*External synchronization input function, Mutual interference protection, Self diagnosis function.
*Overcurrent protection and Reverse power polarity protection.
*Timer function : OFF Delay approx. 40ms fixed.
(Standard Type, Remote sensitivity setting type only)
*Automatically selectable Light ON / Dark ON mode.
*Able to detect small targets and mount to tiny place.
authorized Autonics distributor
Type :Remote sensitivity setting type
Light source : Red LED(660nm)
Response time : Frequency 1: Max. 0.5ms ; Frequency 2: Max. 0.7ms
Power supply : 12 - 24VDC ±10%(ripple P-P: max. 10%)
Current consumption : Max. 45mA
Load current : ≤ 50 mA
Operation mode : Light ON/Dark ON(set by ON/OFF button)
Control output : NPN open collector
Timer function : OFF Delay(40ms)
Sensitivity adjustment : Manual External input(SW1, SW2)
Environment_Ambient illumination : Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature : -10 to +50℃, storage: -20 to +70℃
Approval : CE
Environment_Ambient humidity : 35 to 85% RH, storage: 35 to 85% RH
Mutual interference prevention : Built-in differential frequency mode(frequency 1(normal mode): max. 0.5ms, frequency 2: max. 0.7ms)
Self-diagnosis output : ON state under unstable sensing(when the target stays for 300ms in unstable level),
ON state when control output is short-circuited
Load voltage: Max. 30VDC @(=)
Load current: Max. 50mA
Residual voltage - Max. 1V(load current: 50mA), Ma
Material : Case: Heat-resistance acrylonitrile butadiene styrene, Cover: Polycarbonate
Cable specification : 4mm, 6-wire, 2m(AWG24, core diameter: 0.08mm, number of cores: 40, insulator out diameter: 1mm)
Accessories : Fixing bracket, Bolts, Nuts
Weight : Approx. 120g(approx. 65g)
Autonics sensor model:
BF3RX;
BF4R; red ;
BF4R-E; External synchronization input type
BF4R-R; Remote sensitivity setting type
BF4RP,
BF4G,
BF4GP,
BF4G-E,
BF4G-R, Remote sensitivity setting type ; 525 nm, modulated green LED
