Quick Details
-
Brand Name:
-
Diamond
-
Voltage:
-
220V
-
Fan Diameter:
-
2M big barrel fans
-
Max rotating speed:
-
300RPM
-
Air volume:
-
1300 cubic meter/min
-
Protection:
-
IP55
-
Number of blade:
-
6PCS
-
Noise:
-
39db
-
Effective area:
-
300㎡
-
Long distance:
-
40m
-
Net Weight:
-
100kg
Quick Details
-
Mounting:
-
FREE STANDING
-
Power:
-
1000w
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Diamond
-
Voltage:
-
220V
-
Fan Diameter:
-
2M big barrel fans
-
Max rotating speed:
-
300RPM
-
Air volume:
-
1300 cubic meter/min
-
Protection:
-
IP55
-
Number of blade:
-
6PCS
-
Noise:
-
39db
-
Effective area:
-
300㎡
-
Long distance:
-
40m
-
Net Weight:
-
100kg
Product Description

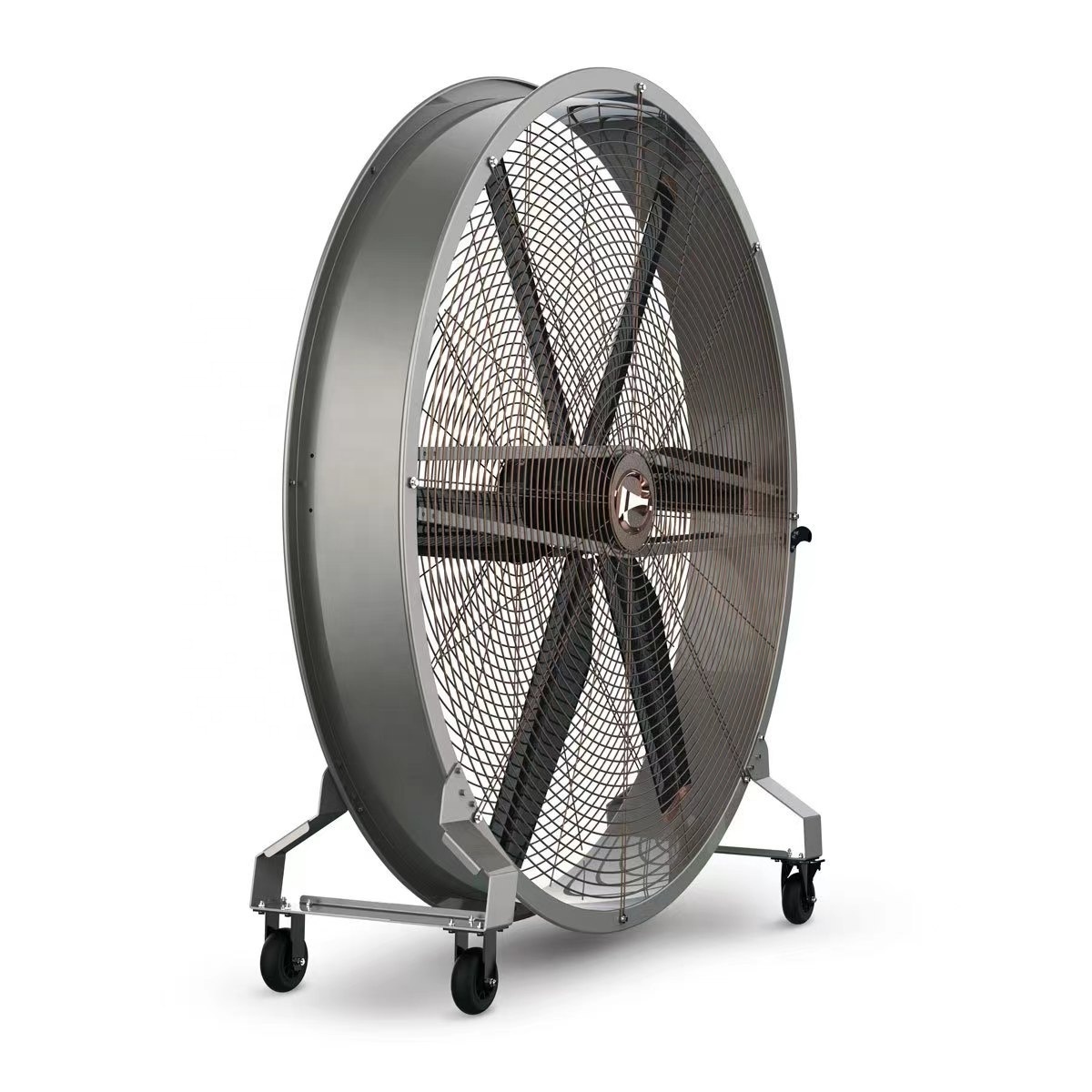

2m Big Sized Portable Outdoor waterproof industrial stand fan
Super large air volume, ultra-long air blowing,feel the free wind everywhere
|
Model
|
Big movable fan HDY-200D
|
|
Diameter
|
2m
|
|
Voltage &Power
|
220V-380V 1000W
|
|
Max rotating speed
|
300rpm
|
|
Air volume
|
1300m3/min
|
|
Number of blades
|
6pcs
|
|
Noise
|
39db
|
|
Long distance
|
40m
|
|
Effective area
|
300 square meters
|
|
Net Weight
|
100kgs
|
Grid fan diamensions (mm)
L: 2220mm W: 610mm H:2190mm
Detailed Images
The whole big movable fan is made of Permanent magnet synchronous motor , blades, controller，bear and other spare parts
Permanent magnet synchronous motor
FEATURES:
Without rotor losses
High efficiency and precision
Large power factor
Improve grid operating environment.
Frequency modulation width (0~200HZ)
Small size and light weight
Saving energy and high efficient
Smart Control System
The system is no position vector control,anti-electromagnetic interference,anti-radiation,small size,light weight,beautiful appearance.
System function is simple,4 buttons easy to operation(start,stop,speed up,slow down).
System with overvoltage ,undervoltage, voltage loss regulation ,current,lack of phase ,overload , collision, overheating, lightning,abnormal protection.
Fan blades
Blade material : aluminum and magnesium . The fan blade surface is treated with T5+ bright surface oxidation treatment,which enhances the corrosion and oxidation resistance of the fan blade and can cope with special enviromental operations
Big Sized Warehouse Portable Large Stand DC Fans Airmove series Main Features
1. Super large air volume: Ultra-long air blowing, the effective distance is more than 40m;
2. Move easily: Designed with 4 wheels, the fan is able to move everywhere easily;
3. Energy saving: With only 1KW power, very low energy comsuption;
4. Quiet & Low noise: Low noise with only 39DB level.
5. Stepless Speed Control: PMSM motor driving fan blade, VFD stepless peed control, easy to operate;
6. Waterproof/Dustproof: Protection level is IP55, waterproof in overall.
7. Durable: All materials of appearance are treated with spray-painted , the barrel is 2mm thick, the ovrall hollowing out to reduce weight. 8. Plug and play: No on-site installation, all factory pre-installed and commissioned avoiding cumbersome installation and maintenance-free use.
2. Move easily: Designed with 4 wheels, the fan is able to move everywhere easily;
3. Energy saving: With only 1KW power, very low energy comsuption;
4. Quiet & Low noise: Low noise with only 39DB level.
5. Stepless Speed Control: PMSM motor driving fan blade, VFD stepless peed control, easy to operate;
6. Waterproof/Dustproof: Protection level is IP55, waterproof in overall.
7. Durable: All materials of appearance are treated with spray-painted , the barrel is 2mm thick, the ovrall hollowing out to reduce weight. 8. Plug and play: No on-site installation, all factory pre-installed and commissioned avoiding cumbersome installation and maintenance-free use.
Packing&Shipping
|
Size
|
2140*360*2250mm
|
|
Packing
|
plywood case/ or by your requirements
|
|
Gross weight
|
193kgs
|
Application case
The PM VFD movable fan is widely used in fitness center ,outdoor wedding venues , industrial factory ,logistics warehousing, waiting room ,exhibition hall, physical education hall and other large space places,as a new type of ceiling fan space ventilation ,personnel cooling .It can push a large amount of airflow to the ground ,forming a certain height of the moving airflow layer ,thus contributing to the overall air circulation; Like the natural breeze system,enjoy the intimate experience of natural wind.
Company Introduction
For more than ten years, the company focuses on the research, development and production of HVLS Ceiling fan, movable fans. Main markets are USA , Canada, The Philippines, Malaysia, India,Thailand,etc.
Pre-sales service
* Inquiry and consulting support.
* Sample testing suppoting
* Sample testing suppoting
* View our factory
After-sales service
* Training how to install and use the fans * Technical supporting video
