Quick Details
-
Light Source:
-
LED
-
Product Weight（kg）:
-
3
-
Input Voltage(V):
-
DC 12V (Solar powered Way)
-
Lamp Luminous Flux(lm):
-
Red 2,000cd ±25%
-
CRI (Ra):
-
100
-
Beam Angle(°):
-
360 Horizontal Beam Angle
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
geelian
-
Product name:
-
Solar Double Aviation Obstruction Light
-
Light Intensity:
-
≥ 32.5cd(Option 10cd,50cd,80cd,100cd)
-
Working mode:
-
Steady-burning mode or Flashing mode(20-60times/minute)
-
Operating voltage:
-
AC120V, DC12V,DC24V,DC48V
-
Overall Size (mm):
-
330mm x 158mm x 140mm
-
Beam Angle(°)::
-
360 Horizontal Beam Angle
-
Weight:
-
3Kg
-
Standard::
-
ICAO, FAA L-810
-
Lamp Luminous Efficiency(lm/w)::
-
100
-
Protection standard:
-
IP68
Quick Details
-
Warranty(Year):
-
3-Year
-
Color Temperature(CCT):
-
red
-
Lamp Body Material:
-
Aluminum Alloy
-
Light Source:
-
LED
-
Product Weight（kg）:
-
3
-
Input Voltage(V):
-
DC 12V (Solar powered Way)
-
Lamp Luminous Flux(lm):
-
Red 2,000cd ±25%
-
CRI (Ra):
-
100
-
Beam Angle(°):
-
360 Horizontal Beam Angle
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
geelian
-
Product name:
-
Solar Double Aviation Obstruction Light
-
Light Intensity:
-
≥ 32.5cd(Option 10cd,50cd,80cd,100cd)
-
Working mode:
-
Steady-burning mode or Flashing mode(20-60times/minute)
-
Operating voltage:
-
AC120V, DC12V,DC24V,DC48V
-
Overall Size (mm):
-
330mm x 158mm x 140mm
-
Beam Angle(°)::
-
360 Horizontal Beam Angle
-
Weight:
-
3Kg
-
Standard::
-
ICAO, FAA L-810
-
Lamp Luminous Efficiency(lm/w)::
-
100
-
Protection standard:
-
IP68
Product Description
Video Description
Product Details

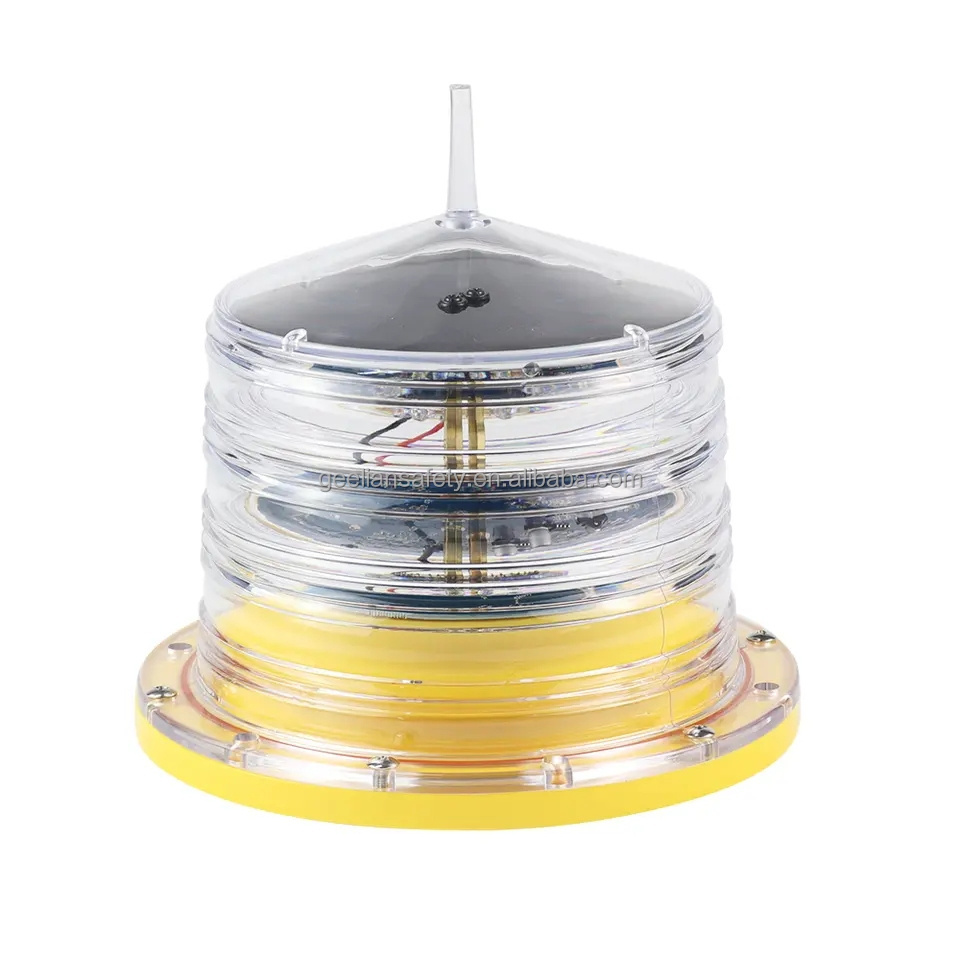

Solar double aviation obstruction light / twin obstacle light for telecom towers or buildings
Adopts insert high efficient solar panels integrated design. Control circuit adopts micro-power consumption, which reduce
controlling circuit 's power consumption. Light source adopts high efficient LED chip, which has specific of high light intensity,low power consumption, long service life and so on.
The product base is made of stainless steel integrated that has the specific of light weight and corrosion insistence. It's very convenient for installation and transportation.
Solar double aviation obstruction light / twin obstacle light for telecom towers or buildings
Adopts insert high efficient solar panels integrated design. Control circuit adopts micro-power consumption, which reduce
controlling circuit 's power consumption. Light source adopts high efficient LED chip, which has specific of high light intensity,low power consumption, long service life and so on.
The product base is made of stainless steel integrated that has the specific of light weight and corrosion insistence. It's very convenient for installation and transportation.
Lampshade adopts PC material, which can corrosion resistance, anti-UV anti-shock.
Specification
|
LIGHTING
|
|
|
|
Effective Intensity
|
32.5cd
|
|
|
Compliant with
|
FAA L810, ICAO TYPE B
|
|
|
Emitting Color
|
Red (optional: yellow amber, green blue, white)
|
|
|
Operation Mode
|
Steady Burning / Flash Pattern
|
|
|
Vertical Divergence
|
>10°
|
|
|
Horizontal Out-put
|
360°
|
|
|
Light source
|
LED
|
|
|
Light lifespan
|
>100,000 Hours
|
|
|
POWER SUPPLY
|
|
|
|
Solar panel
|
4W, 8.5V
|
|
|
Battery
|
6.4V 3Ah, lithium iron phosphate battery
|
|
|
Power consumption
|
≤1W
|
|
|
solar panel lifespan
|
>20 Years
|
|
|
STRUCTURE
|
|
|
|
Lens
|
Polycarbonate, UV Stabilize, Corrosion Resistance
|
|
|
Body
|
SS 304
|
|
|
Temperature Range
|
-40℃~70℃
|
|
|
Wind Load
|
>80m/s
|
|
|
Overall size(mm)
|
356 by 186 by 282
|
|
|
Installation size(mm)
|
3/4 inch or Φ100 x M10
|
|
|
Water-proof
|
IP68
|
|
|
Weight
|
3KG
|
|
Function & Features
* Adopts Fresnel lens PC lamp shade, Converging angle meets FAA standard
* With automatically light control function that can change to working mode at rainy day and night.
* Led light source, it service life is up to 100,000hours.
* Low voltage design, high safety degree for using.
* With the impact resistance, anti lighting, resistant to sunlight, anti snow, can resist typhoons, hail and other severe
weather.
* With over-current protection function.
* Possess lightning protection function.
* It can be added with warning function at dry contact.
* It contains switch for changing flashing light and steady light.
* No radio frequency(rf), no electromagnetic interference.
* Adopts Fresnel lens PC lamp shade, Converging angle meets FAA standard
* With automatically light control function that can change to working mode at rainy day and night.
* Led light source, it service life is up to 100,000hours.
* Low voltage design, high safety degree for using.
* With the impact resistance, anti lighting, resistant to sunlight, anti snow, can resist typhoons, hail and other severe
weather.
* With over-current protection function.
* Possess lightning protection function.
* It can be added with warning function at dry contact.
* It contains switch for changing flashing light and steady light.
* No radio frequency(rf), no electromagnetic interference.
