Quick Details
-
Product name:
-

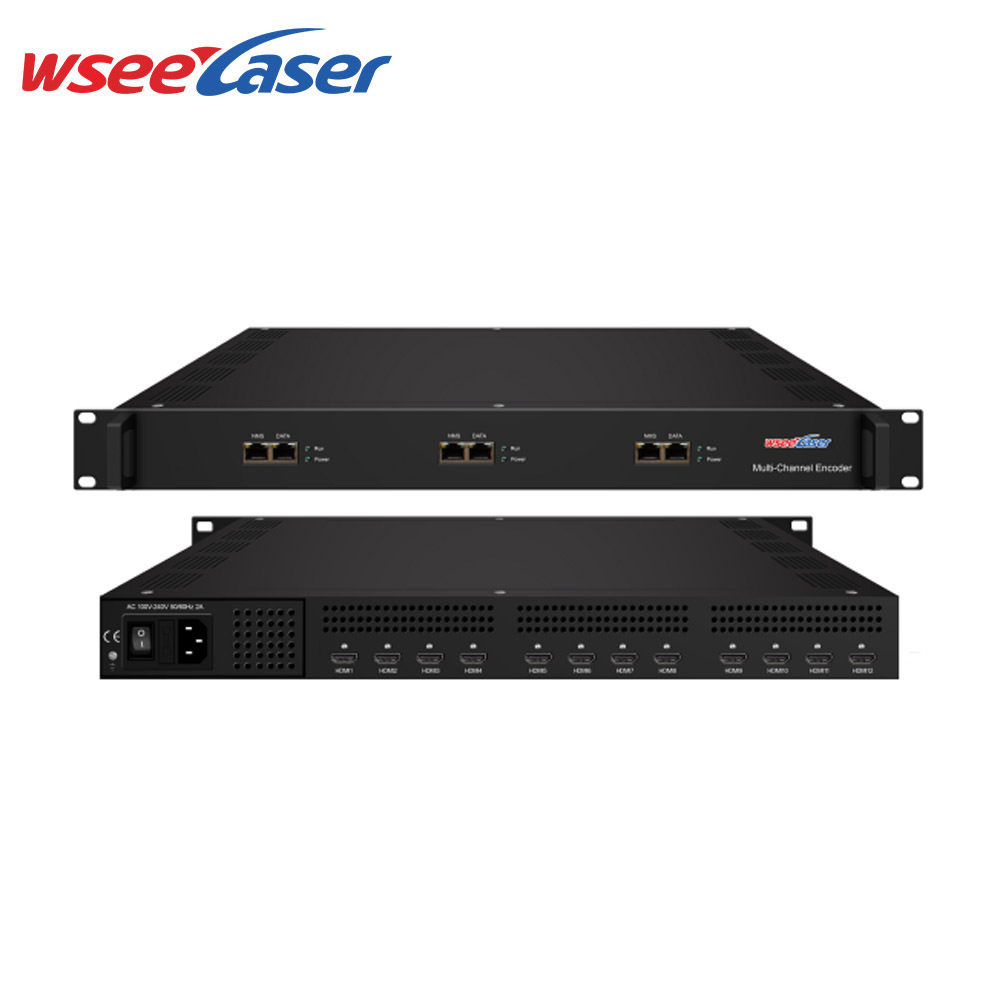

Multi Channel H.264 Encoding 1080p digital Rf Encoder Modulator
-
Input:
-
4*1080P 4*1080I 4*720P
-
Chroma:
-
4:2:0
-
Bitrate:
-
0.5Mbps~20Mbps (HEVC/ H.265) 4 Mbps~20Mbps (MPEG 4 AVC/H.264)
-
Rate Control:
-
CBR/VBR
-
GOP Structure:
-
IBBP, IPPP
-
Advanced Pretreatment:
-
De-interlacing, Noise Reduction, Sharpening
-
Encoding Format:
-
MPEG-1 Layer 2, LC-AAC, HE-AAC, HE-AAC V2, AC3 Passthrough
-
Upgrade:
-
Ethernet software
-
Warranty:
-
1 Year
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
wseelaser
-
Model Number:
-
WS3224H/HV
-
Product name:
-
Multi Channel H.264 Encoding 1080p digital Rf Encoder Modulator
-
Input:
-
4*1080P 4*1080I 4*720P
-
Chroma:
-
4:2:0
-
Bitrate:
-
0.5Mbps~20Mbps (HEVC/ H.265) 4 Mbps~20Mbps (MPEG 4 AVC/H.264)
-
Rate Control:
-
CBR/VBR
-
GOP Structure:
-
IBBP, IPPP
-
Advanced Pretreatment:
-
De-interlacing, Noise Reduction, Sharpening
-
Encoding Format:
-
MPEG-1 Layer 2, LC-AAC, HE-AAC, HE-AAC V2, AC3 Passthrough
-
Upgrade:
-
Ethernet software
-
Warranty:
-
1 Year
Principle Chart of Per Module
Technical S pecification
|
4/8/12 × HD-SDI or HDMI(1.4) input for option , HDCP 1.4 |
|||||
|
Video Encoding |
Encoding Format |
HEVC / H.265 , MPEG 4 AVC /H.264 |
|||
|
Resolution (DX3224HV) |
Input |
Output |
|||
|
HEVC/H.265 |
MPEG-4 AVC/H.264 |
||||
|
4*1080P-50 |
4* 1080P-50 |
4*1080P-25 2*1080P-50 |
|||
|
4*1080P-60/59.94 |
4* 1080P-60, 4* 1080P-59.94 |
4*1080P-30 4*1080P-29.97 2*1080P-60 2*1080P-59.94 |
|||
|
4*1080I-50 |
4* 1080P-50, 4* 1080P-25 |
4*1080I-50 4*1080P-25 2*1080P-50 |
|||
|
4*1080I-60/59.94 |
4* 1080P-60, 4* 1080P-30 |
4*1080I-60 4*1080P-30 2*1080P-60 |
|||
|
4*720P-50 |
4* 720P-50 |
4*720P-50 |
|||
|
4*720P-60/59.94 |
4* 720P-60, 4* 720P-59.94 |
4*720P-60 4* 7 20P-59.94 |
|||
|
Resolution (DX3224H) |
Input |
Output |
|||
|
HEVC/H.265 |
MPEG-4 AVC/H.264 |
||||
|
4*1080P-50 |
4* 1080P-50 |
4* 1080P-50 |
|||
|
4*1080P-60/59.94 |
4* 1080P-60, 4* 1080P-59.94 |
4* 1080P-60 4* 1080P-59.94 |
|||
|
4*1080I-50 |
4* 1080P-50, 4* 1080P-25 |
4* 1080P-25 4* 1080P-50 4* 1080I-50 |
|||
|
4*1080I-60/59.94 |
4* 1080P-60, 4* 1080P-30 |
4* 1080P-30 4* 1080P-60 4* 1080I-60 |
|||
|
4*720P-50 |
4* 720P-50 |
4* 720P-50 |
|||
|
4*720P-60/59.94 |
4* 720P-60, 4* 720P-59.94 |
4* 720P-60 4* 720P-59.94 |
|||
|
Chroma |
4:2:0 |
||||
|
Bitrate ( per channel) |
0.5 Mbps~ 20 Mbps ( HEVC / H.265 ) 4 Mbps~ 20 Mbps (MPEG 4 AVC /H.264) |
||||
|
Rate Control |
CBR/VBR |
||||
|
GOP Structure |
IBBP, IPPP |
||||
|
De-interlacing, Noise Reduction, Sharpening |
|||||
|
Audio Encoding |
Encoding Format |
MPEG-1 Layer 2 , LC-AAC, HE-AAC, HE-AAC V2, AC3 Passthrough |
|||
|
Sampling rate |
48KHz |
||||
|
Bit-rat e ( each channel ) |
48Kbps~384Kbps ( MPEG-1 Layer 2 & LC-AAC) 24 Kbps~ 128 Kbps (HE-AAC) 18 Kbps~ 56 Kbps (HE-AAC V2) |
||||
|
Audio Gain |
0~255 |
||||
|
Stream output |
1 MPTS and 4 SPTS output over UDP/RTP/RTSP per module , Base-T Ethernet interface ( 1000M/100M self-adaption) (unicast/ multicast) IP null packet filter d |
||||
|
System |
Web based management |
||||
|
Chinese-English control interface |
|||||
|
Ethernet software upgrade |
|||||
|
Miscellaneous |
Dimension (W× L× H) |
482mm×328mm×44mm |
|||
|
Approx weight |
5 kg |
||||
|
Temperature |
0~45 ℃ (work), -20~80 ℃ ( Storage ) |
||||
|
Power |
AC 100V-220V±10%, 50/60Hz |
||||
