Quick Details
-
Brand Name:
-
Customized/OEM/ODM
-
Model Number:
-
SH03
-
Warranty:
-
12 Months
-
Product name:
-
Portable Tire Inflator
-
Type:
-
Electric Air Compressor Inflator
-
Power:
-
60W
-
Battery capacity:
-
3*4000mAh
-
Air pressure:
-
2-150PSI
-
Cylinder Diameter:
-
Dual-cylinder(24mm+24mm)
-
Inflation time:
-
3-4minutes
-
Display:
-
LED digital display dual readings
-
Power supply:
-
battery+12V car cigaratte lighter
-
Air flow:
-
50L/m
Quick Details
-
Car Fitment:
-
Universal
-
Size:
-
188x97x63mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Customized/OEM/ODM
-
Model Number:
-
SH03
-
Warranty:
-
12 Months
-
Product name:
-
Portable Tire Inflator
-
Type:
-
Electric Air Compressor Inflator
-
Power:
-
60W
-
Battery capacity:
-
3*4000mAh
-
Air pressure:
-
2-150PSI
-
Cylinder Diameter:
-
Dual-cylinder(24mm+24mm)
-
Inflation time:
-
3-4minutes
-
Display:
-
LED digital display dual readings
-
Power supply:
-
battery+12V car cigaratte lighter
-
Air flow:
-
50L/m

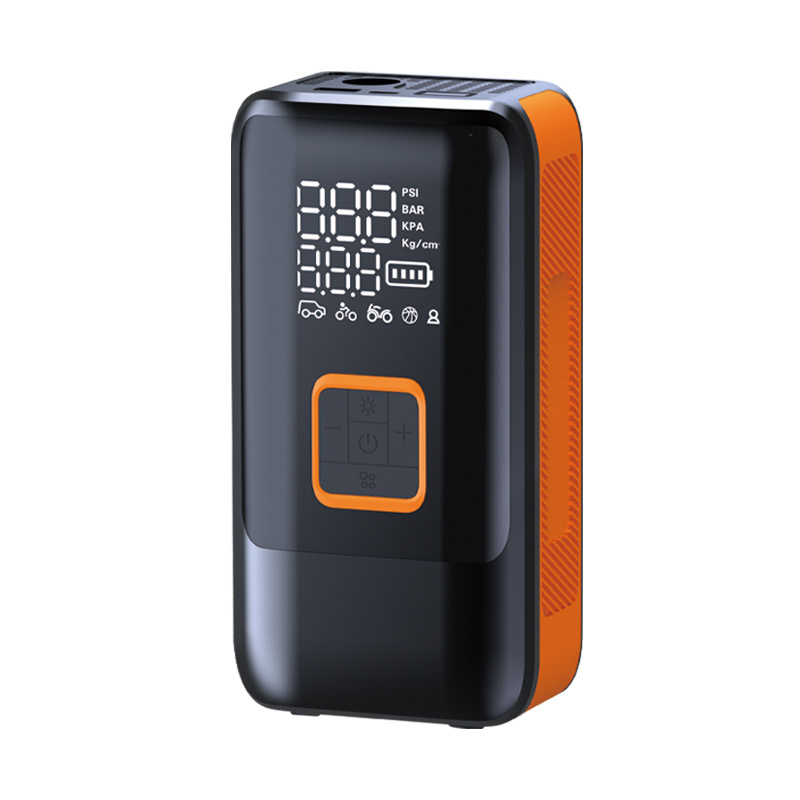

Newo Portable Tire Inflator Compact Air Compressor for Truck & SUV 12V On/Off Road Tire Pump Air Compressor 150 PSI
Description:
SH03 is a portable dual-cylinder air pump built-in rechargeable battery with TYPE-C charging interface. Novel appearance, large digital display and air flow up to 50L/m. At the same time, it has built-in high-precision air pressure sensor and adopts five kinds of air pressure setting operation interfaces which are convenient for users to use safely. The interactive interface is: ball gear, bicycle gear, motorcycle gear, car gear and user-defined gear(2-150PSI). The user can adjust to the corresponding gear to inflate the inflatable object, when the air pressure reaches the preset air pressure value of the system, the air pump will automatically stop inflating, which provides a safe and reliable use guarantee for users who are not familiar with the setting of air pressure value.
Specifications:
| Product size | 188x97x63mm | |
| Battery | Capacity | 3*4000mAh (11.1V/44.4Wh) |
| Battery overcharge/overdischarge protection voltage | 12.4V/9V | |
| Charging time | 2-3H | |
| Lifespan | After 300 cycles, more than 80% remaining capacity | |
| Motor | Motor overcurrent protection | Yes |
| Style | Brushed | |
| Working time | 200-400H | |
| Display | LED digital display dual readings: pre-set pressure & real-time pressure | |
| Motor operating power | 100w | |
| Cylinder | Dual-cylinder (24mm cylinder+ 24mm cylinder) | |
| Operating temperature | -10℃~45℃ | |
| Air pressure | 2-150PSI | |
| Air flow | 45~50L/min | |
| Working time | 15min (can charge up to 4*205 car tires) | |
| Operating noise | 85dB (1m distance) | |
| Charging interface | TYPE-C | |
| Input | 5V/2A 9V/2A 20V/1A | |
| Output | 5V/2A 9V/2A 20V/1A | |
Advantages:
| SH03 Function & Advantages | ||
| Cylinder | Dual-cylinder (24 cylinder + 24 cylinder) | Full-metal body, lifespan up to 400 cycles |
| Max Air Pressure | 150PSI | Test verified |
| Max Air Flow | 50L/m (1.77 SCFM) | Comparable to industrial air compressor |
| Sensor | Digital sensor | Air pressure accuracy error is around ±1.5PSI |
| Power Source | 3*4000mAh rechargable battery |
3 minites to inflate a 205 tire (up to 4 tires in total);
4 minites to inflate a 225 tire (up to 4 tires in total); 8 minites to inflate a 285 tire (up to 1 tires in total); |
| Car cigarette lighter power supply | Working time up to 30 minutes | |
|
Innovative Technology
(Patent holder) |
Double gear asynchronous operation | More stable air flow, low vibration and low noise |
| Turbo fan | Heat dissipation performance double than normal fan | |
| Quick connected hose | More easy for operation | |
| Software algorithm upgrade | Compatible with small volume device inflation | |
|
Digital display dual readings:
Pre-set pressure & Real-time Pressure |
The industry pioneer who firstly designed the dual-value screen display for air pumps | |
| Additional Function | Power bank function | Compatible for phone, pad etc. |
| Led emergency lighting | Easy to use at night or in dark scenes | |
Packaging:
| Product packaging (Color box) | Dimension | 228x121x104mm |
| Material | 350g single copper paper KE | |
| N.W | 1014g | |
| G.W | 1348g | |
| Outer box packaging (Carton) | Dimension | 507X243X225mm |
| QTY | 8PCS per carton | |
| G.W | 12kg |
Our Services:
Newo is the manufacturer with more than 9 years experience in R&D and production of smart electric pumps, including tire inflators, ball pumps, air pumps and car vacuum cleaner.
