Quick Details
-
Brand Name:
-
CNAWELD
-
Model Number:
-
A141
-
Air Pressure:
-
4.5-5.0 Bar
-
Duty Cycle 60%:
-
140A
-
Current:
-
140A High Frequency
-
Cooling type:
-
Air cooled
-
MOQ:
-
1pcs
-
Weight:
-
2.8kg/pc
-
Packing:
-
1pc/box
-
Air flow volume:
-
220LPM
-
Gas delay:
-
140s Post Flow
-
Connector:
-
Nut
Quick Details
-
Type:
-
CUTTING TORCH
-
Warranty:
-
6 months
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
CNAWELD
-
Model Number:
-
A141
-
Air Pressure:
-
4.5-5.0 Bar
-
Duty Cycle 60%:
-
140A
-
Current:
-
140A High Frequency
-
Cooling type:
-
Air cooled
-
MOQ:
-
1pcs
-
Weight:
-
2.8kg/pc
-
Packing:
-
1pc/box
-
Air flow volume:
-
220LPM
-
Gas delay:
-
140s Post Flow
-
Connector:
-
Nut
Product Description
We are known in the industry as the leading manufacturer and supplier of Trafimet A141 Plasma Torch. It is widely used in the process of cutting steel as well as other metals of vivid thickness. The torch uses a plasma torch for doing so. The offered machine range has been widely appreciated in the markets for the optimum quality of it. Customers can avail it from us at the most comprehensive and market leading price range.
Specification
|
TECHNICAL OF PLASMA CUTTING TORCH
|
|
|
|
Product Name
|

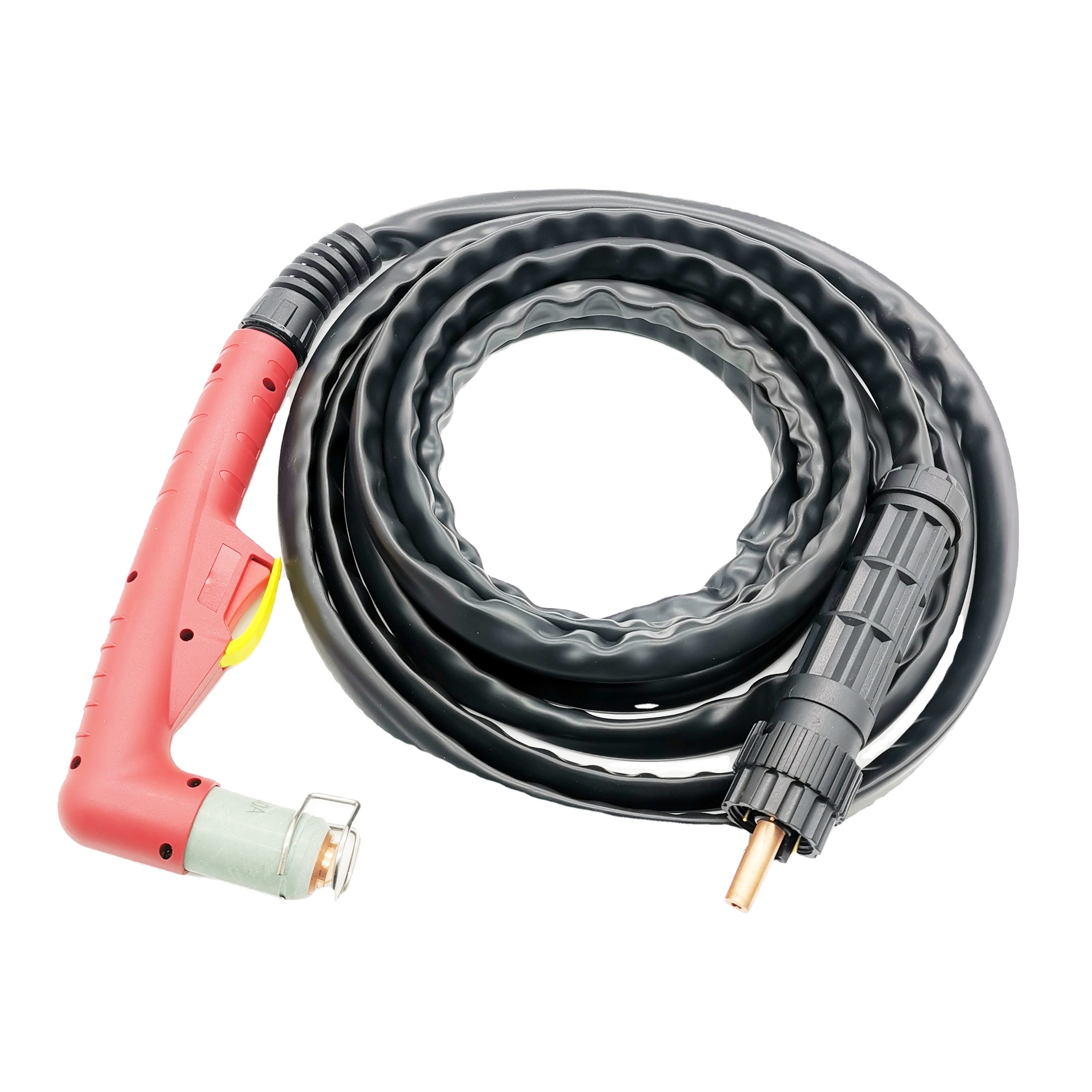

A141 Air Plasma cutting Torch
|
|
|
Air Pressure
|
4.5-5.0 bar
|
|
|
Duty Cycle
|
60%- 140A
|
|
|
Length of Torch
|
6meters - 8meters - 10meters
|
|
|
Connector of Torch
|
M16x1.5 Nut
|
|
|
Brand
|
ChiNa - CNAWELD
|
|
|
REF.Number
|
Products Description
|
|
1. PF0155
|
Torch Head -Hand
|
|
2. PF0102
|
Torch Head - Machine
|
|
3. EA0131
|
O-Ring - Torch Head
|
|
4. FH563
|
Diffuser
|
|
5. P1502
|
Extended Diffuser
|
|
6. PR0101
|
Electrode Harfnium
|
|
7. PR116
|
Extended Electrode
|
|
8. PE0101
|
Swirl Ring
|
|
9. PE0103
|
Swirl Ring for Extended Electrode
|
|
10. PD0101-11
|
Tip 1.1mm
|
|
PD0101-14
|
Tip 1.4mm
|
|
PD0101-17
|
Tip 1.7mm
|
|
PD0101-19
|
Tip 1.9mm
|
|
PD0101-30
|
Gouging Tip 3.0mm
|
|
11. PD111-12
|
Extended Tip Max 50 Amp, 1.2mm
|
|
12. PD117-14
|
Extended Tip 1.4mm Max 90 Amp
|
|
PD117-17
|
Extended Tip 1.7mm Max 120 Amp
|
|
PD117-19
|
Extended Tip 1.9mm Max 150 Amp
|
|
13. PC0101
|
Nozzle Retaining Cap
|
|
PC0102
|
Nozzle Retaining Cap - Long Life
|
|
14. PC0103
|
Contact Nozzle Retaining Cap
|
|
PC0131
|
Contact Nozzle Ret. Cap - Long Life
|
