Stainless Steelpowered Mechanical Grille Static Screen Filter Equipment High-efficiency Filter Hydraulic Screen Water Filter 75

Stainless Steelpowered Mechanical Grille Static Screen Filter Equipment High-efficiency Filter Hydraulic Screen Water Filter 75

FOB Reference Price: Get Latest Price

≥1 Sets

US $950

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Material:: Wooden

Weight:: 420

Size:: 560*1000*1000

Power:: /

Weight (KG):: 75 kg

Flow rate:: 5-15m³/h

Filter precision:: 0.05-3mm

Materials:: SS304/SS316

Application:: water filter

Usage:: Wastewater Pre-treatment

Color:: Customers Demands

certificate:: ISO9001

Sieve plate width:: 520

Sieve plate length:: 900

Inlet/Outlet:: 65/100

Quick Details

Marketing Type:: Hot Product 2022

Place of Origin:: Sichuan, China

Brand Name:: NATIN

Material:: Wooden

Weight:: 420

Size:: 560*1000*1000

Power:: /

Weight (KG):: 75 kg

Flow rate:: 5-15m³/h

Filter precision:: 0.05-3mm

Materials:: SS304/SS316

Application:: water filter

Usage:: Wastewater Pre-treatment

Color:: Customers Demands

certificate:: ISO9001

Sieve plate width:: 520

Sieve plate length:: 900

Inlet/Outlet:: 65/100

Product Overview

Introduction

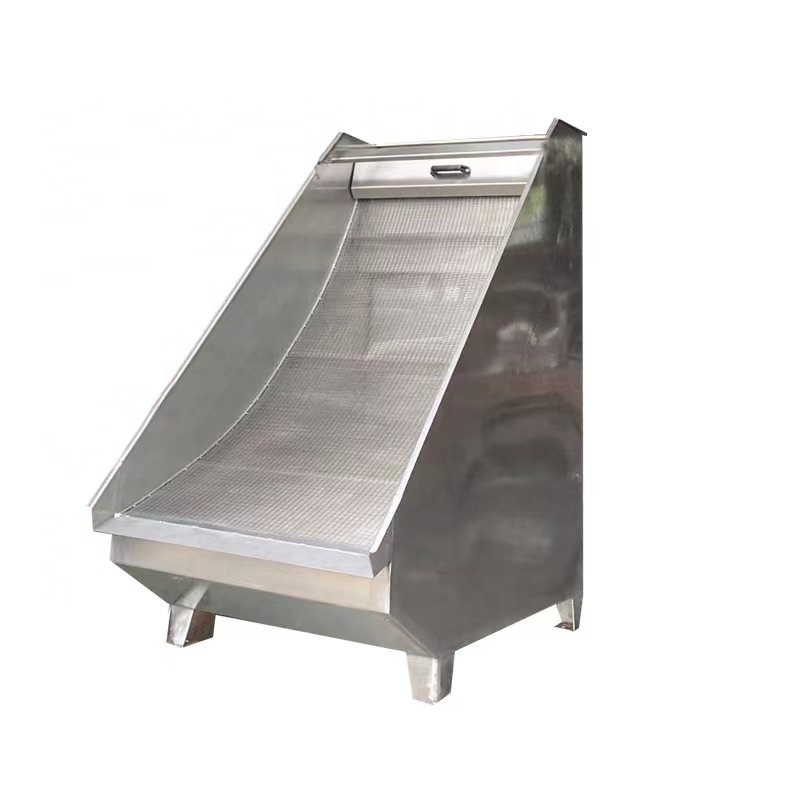

Static sieve bend screen are also called inclined screens, curved screens, slotted screens, and hydraulic grids. The static sieve bend screen can effectively reduce the concentration of suspended solids in the water and reduce the processing load of the subsequent processes. At the same time, it is also used for solid-liquid separation and recovery of useful substances in industrial production. It is an excellent non-powered equipment for filtering or recovering suspended solids, floating substances, sediments and other solid or colloidal substances.Application scope: Usage in paper-making, slaughterhouse, leather, sugar, wine, food processing, textile, printing and dyeing, petrochemical and other small industrial wastewater treatment, to remove suspended solids, floating substances, sediments and other solid substances;

FEATURES AT A GLANCE

1. Use the gravity of the water itself to work without energy consumption;
2. A single machine can process a large amount of water；
3.Not easy to block, easy to clean；
4.The material of the whole machine is made of stainless； steel, which has high mechanical strength, no deformation and long life span.

The inlet and outlet of the equipment are connected by flanges

The screen mesh precision can be customized according to the requirements of use

All equipment is made of SS304 or 316 material, which is anti-corrosion and more efficient in filtration

Application Scenarios

PRODUCT SPECIFICATIONS

Model	NTS-400	NTS-550	NTS-700	NTS-1000	NTS-1400	NTS-1700	NTS-2000
Sieve plate width（mm)	350	520	650	940	1340	1630	1920
Sieve plate length（mm)	900	900	950	1000	1200	1280	1350
Inlet（DN)	50	65	80	80	100	125	150
Outlet（DN)	80	100	125	150	200	250	300

SALES AND SERVICE NETWORK

Successful Project

Indonesia in Thailand

Project in India

Project in Russia

SIMILAR PRODUCTS

FAQ

Q: Are you trading company or manufacture? A: We are both manufacture and trading company. We have over 10 years' professional experience as a waste water treatment equipment manufacturer and engineering service enterprise. Q: Do you provide OEM service? A: Yes. Any required logos is available. Q: What certificates do you have? A: CE/ISO/SGS Q: Do you offer after-sales service? A: Yes. Engineers available. Q: How long is your warranty? A: One year after the arrival of the goods. During this period, as long as it is not a man-made damage, we send the damaged parts free of charge. Q: What about your delivery time? A: Normally within 20 days against down payment. Q: What about the package of your export product? A: We use anticorrosion wooden case with foam inside. Q: What kind of payment do you accept? A: T/T, L/C, PAYPAL, Cash, D/P, D/A, WESTERN UNIION, MONEYGRAM Q: What kind of transportation do you offer? A: Customers decide freight mode, Air, Land & Sea
