1, Training how to install the machine, training how to use the machine, free technical support for lifetime.
2, Warranty period of one year since machine arrives destination port. Our machine adopts modular design, if there have any damaged parts we will send you the free part, you just need pay the freight.
3, Big order, Module replacement even product design.
4, Engineers available to service overseas for Major clients.
- Product Details
- {{item.text}}
Quick Details
-
Row Distance(mm):
-
400 - 900 mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
FINEYOU
-
Dimension(L*W*H):
-
5200-1890-2530
-
Weight:
-
2500 KG
-
Engine:
-
Diesel engine
-
Power:
-
48 KW / 65 HP
-
Walking mode:
-
all-wheel-drive type
-
Harvest way:
-
Corn ear
-
Skin of corn:
-
Peeled
-
Work efficiency:
-
0.2-0.5 ha/h
-
Engine emissions:
-
Euro II or III
-
Suitable row space:
-
450-750 mm
-
Adapted farmland:
-
mountain, hill, mud
-
Harvesting line:
-
2 rows
Quick Details
-
Number of Rows:
-
2
-
Working Width(mm):
-
700 mm
-
Tractor Power(HP):
-
0 - 65 HP
-
Row Distance(mm):
-
400 - 900 mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
FINEYOU
-
Dimension(L*W*H):
-
5200-1890-2530
-
Weight:
-
2500 KG
-
Engine:
-
Diesel engine
-
Power:
-
48 KW / 65 HP
-
Walking mode:
-
all-wheel-drive type
-
Harvest way:
-
Corn ear
-
Skin of corn:
-
Peeled
-
Work efficiency:
-
0.2-0.5 ha/h
-
Engine emissions:
-
Euro II or III
-
Suitable row space:
-
450-750 mm
-
Adapted farmland:
-
mountain, hill, mud
-
Harvesting line:
-
2 rows
Product Overview

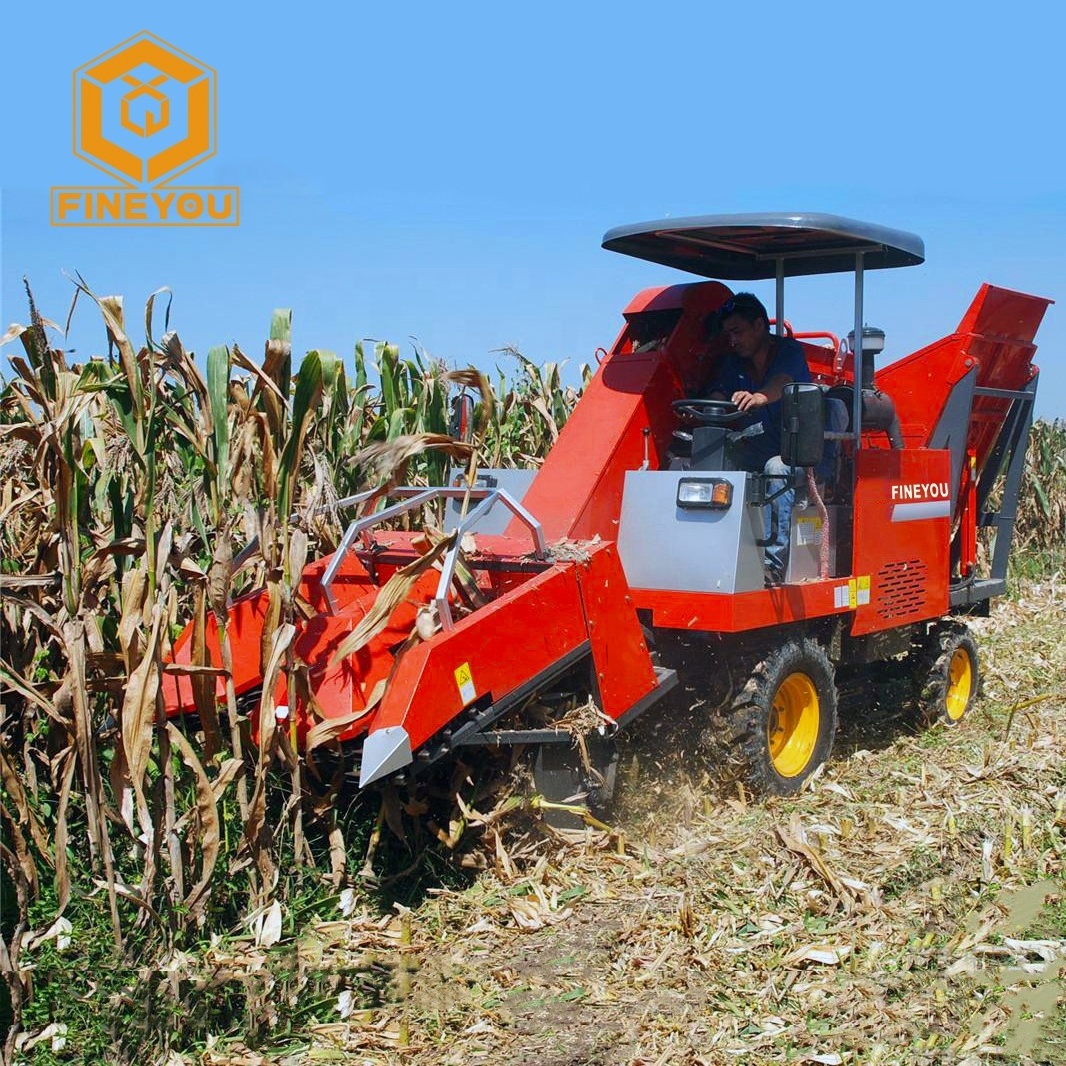

Introduction of 4YZP-2C/F Small Corn Picking Harvester
* This harvester can complete the tasks of picking ears of corn, peeling corn ears, collecting ears of corn ears, and stalk
crushing in one operation;
* Famous engine has large power reserve, small grain loss due to plate header, and high peeling rate of new type peeler;
* Four-wheel drive, more suitable for terrains such as hills and mountains;
* The top of the elevator is equipped with a reinforced exhaust fan, which can effectively reduce the burden of the peeling;
machine and improve the operating efficiency;
* Short fuselage, flexible and convenient operation, small investment, fast return;
* Optional cab, more comfortable working environment.
crushing in one operation;
* Famous engine has large power reserve, small grain loss due to plate header, and high peeling rate of new type peeler;
* Four-wheel drive, more suitable for terrains such as hills and mountains;
* The top of the elevator is equipped with a reinforced exhaust fan, which can effectively reduce the burden of the peeling;
machine and improve the operating efficiency;
* Short fuselage, flexible and convenient operation, small investment, fast return;
* Optional cab, more comfortable working environment.
PRODUCT SPECIFICATIONS
Model specification
|
|
/
|
4YZP-2C/F
|
|
|
|||
Structure type (self-propelled)
|
|
/
|
Picking / peeling / chopper
|
|
|
|||
Matching engine
|
Model specifications
|
/
|
SD4DW3Z1
|
|
|
|||
|
Rated power
|
kW
|
48
|
|
|
|||
|
Rated speed
|
r/min
|
2400
|
|
|
|||
Working state external dimensions (length × width × height)
|
|
mm
|
5200×1890×2530
|
|
|
|||
Structural quality
|
|
kg
|
2500
|
|
|
|||
Number of work lines
|
|
/
|
2
|
|
|
|||
Line spacing
|
|
mm
|
700
|
|
|
|||
Working width
|
|
mm
|
300-1200
|
|
|
|||
Maximum unloading height
|
|
mm
|
1900
|
|
|
|||
Minimum ground clearance
|
|
mm
|
260
|
|
|
|||
Working speed
|
|
km/h
|
2.0~6.0
|
|
|
|||
Hours of work productivity
|
|
hm 2 / h
|
0. 2 0~0 . 5 0
|
|
|
|||
Fuel consumption per unit area
|
|
kg/hm2
|
≤ 25
|
|
|
|||
Header
|
Type
|
/
|
Roller
|
|
|
|||
|
size
|
mm
|
Ø70×900
|
|
|
|||
Husker
|
Peeling roller type
|
/
|
Full rubber roller
|
|
|
|||
|
Stripping roller size
|
mm
|
Ø66×845
|
|
|
|||
|
Number of peeling rollers
|
Unit
|
8
|
|
|
|||
Header type
|
|
/
|
Horizontal
|
|
|
|||
Shift mode
|
|
/
|
(3+1)×2 mechanical
|
|
|
|||
Drive axle
|
Type
|
/
|
Mechanical drive
|
|
|
|||
|
Drive mode
|
/
|
4×4
|
|
|
|||
Straw processing mechanism
|
Model Name
|
/
|
Chopper
|
|
|
|||
|
Type
|
/
|
Roller cutter
|
|
|
|||
|
Working width
|
mm
|
10 8 0
|
|
|
|||
|
position
|
/
|
Front
|
|
|
Our Advantages
Additional powerful fan to remove leaves
Advanced rubber peeling system
Four-wheel drive, suitable for mountain and mud farm
Super cooling system, adapt to long time work
SALES AND SERVICE NETWORK
Why you need to cooperate with us?
1,We have the most extensive international service experience;
2,We understand the targeted modifications for your farmland;
3,We provide customers with lifetime technical support (Be professional);
4,Our products have the strongest quality and competitiveness. If you are afraid that the price is too high, you can ask if there is a discount, and there may be surprises.
4,Our products have the strongest quality and competitiveness. If you are afraid that the price is too high, you can ask if there is a discount, and there may be surprises.
Service
SERVICE FOR CORN HARVESTER
FAQ
1. What about your Warranty period and how do I fix it, if he was damaged ?
Warranty period of one year since machine arrives destination port. The quality of our products is very good, damage under the condition of reasonable operation is rare. If it happened, our machine adopts modular design, it's easy for you to change one parts. We will send you the free part. We still offer free lifetime technical support.
2. How to buy your products and Does this payment safety for me ?
We use T/T (Telegraphic transfer) payment: 30% as order money, 70% balance payment shall be paid after delivery. That can protect you to receive our products, on time and with high quality.
Of course, Alibaba platform provides a perfect credit guarantee system, we can follow Alibaba platform security means to achieve the transaction. To put it simply, your expenses will be paid to the Alibaba platform. Only after you confirm receipt of the goods and in good condition then the money will be paid to our company's account.
3. What can you offer for customers?
Free OEM, Marketing support and Regional protection. We also provide purchasing agents in Chinese market of various products and assume the risk of goods and transport, to provide legal protection in the Chinese region. Provide warehouse and overall freight service. Our strong network of Chinese companies and experience in the agricultural machinery industry in China can ensure efficient, low-cost and high-quality procurement.
Warranty period of one year since machine arrives destination port. The quality of our products is very good, damage under the condition of reasonable operation is rare. If it happened, our machine adopts modular design, it's easy for you to change one parts. We will send you the free part. We still offer free lifetime technical support.
2. How to buy your products and Does this payment safety for me ?
We use T/T (Telegraphic transfer) payment: 30% as order money, 70% balance payment shall be paid after delivery. That can protect you to receive our products, on time and with high quality.
Of course, Alibaba platform provides a perfect credit guarantee system, we can follow Alibaba platform security means to achieve the transaction. To put it simply, your expenses will be paid to the Alibaba platform. Only after you confirm receipt of the goods and in good condition then the money will be paid to our company's account.
3. What can you offer for customers?
Free OEM, Marketing support and Regional protection. We also provide purchasing agents in Chinese market of various products and assume the risk of goods and transport, to provide legal protection in the Chinese region. Provide warehouse and overall freight service. Our strong network of Chinese companies and experience in the agricultural machinery industry in China can ensure efficient, low-cost and high-quality procurement.
