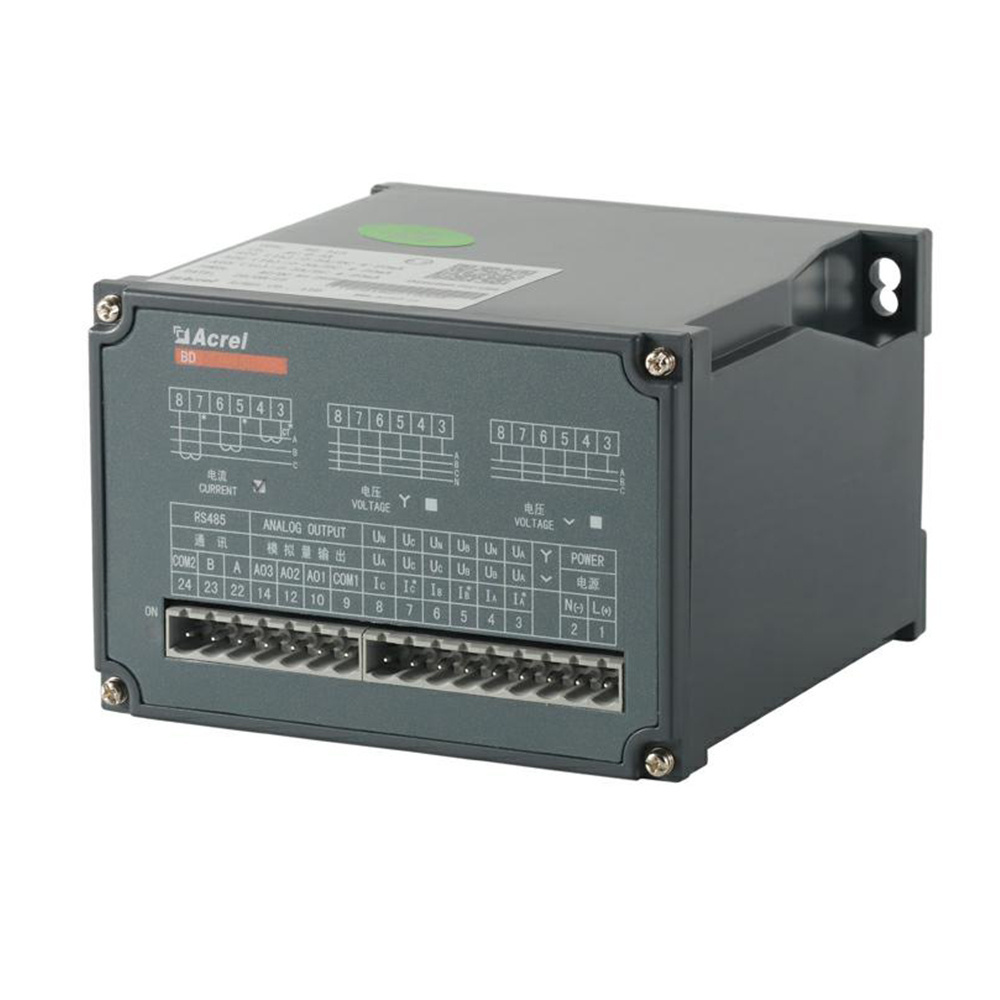

Acrel BD-4V3 AC Voltage Transmitter 3P4W Din Rail 3 Channel Analog Output 4-20mA/0-5V for Industrial Automation

Acrel BD-4V3 AC Voltage Transmitter 3P4W Din Rail 3 Channel Analog Output 4-20mA/0-5V for Industrial Automation

FOB Reference Price: Get Latest Price

≥1 Pieces

US $82

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Coil Number:: AUTOTRANSFORMER

Place of Origin:: Jiangsu, China

Brand Name:: Acrel

Model Number:: BD-4V3

Accuracy:: Class 0.5

Input voltage:: AC 0-120V/0-300V/0-500V

Frequency:: 50/60Hz

Output:: DC 4-20mA/0-20mA/0-5V/0-10V

Response time:: ≤400ms

Power supply:: AC 85-265V/DC 100-350V

Insulation resistance:: ≥100MΩ

Temperature:: -10℃~+55℃

Altitude:: ≤2000m

Dimensions:: 128*110*75.4mm

Quick Details

Use:: Power

Phase:: Three

Coil Structure:: TOROIDAL

Coil Number:: AUTOTRANSFORMER

Place of Origin:: Jiangsu, China

Brand Name:: Acrel

Model Number:: BD-4V3

Accuracy:: Class 0.5

Input voltage:: AC 0-120V/0-300V/0-500V

Frequency:: 50/60Hz

Output:: DC 4-20mA/0-20mA/0-5V/0-10V

Response time:: ≤400ms

Power supply:: AC 85-265V/DC 100-350V

Insulation resistance:: ≥100MΩ

Temperature:: -10℃~+55℃

Altitude:: ≤2000m

Dimensions:: 128*110*75.4mm

Products Overview

Video Introduction

BD Series Electric Transducer

BD series electric transducer is a kind of device which can isolate and transmit electric parameters such as current, voltage, frequency, power, power factor or temperature, resistance and so on non-electrical parameters, into linear DC analog signal or digital signal. They can directly connect with the pointer table, digital meters, also can connected with automatic control devices (eg PLC), a variety of A / D converter, and the computer system.

Specification
