TA-400 600V 400A Heavy Duty Din Rail Terminal Block

TA-400 600V 400A Heavy Duty Din Rail Terminal Block

FOB Reference Price: Get Latest Price

≥60 Pieces

US $4.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Terminal Block:: Din Rail Terminal Block

Din Rail Terminal Block:: Heavy Duty Terminal Block

Rated Voltage:: 600V

Rated Current:: 400A

Wire Size:: 280mm2 / 550

Screw Size:: M10

Pole / Way / Pin / Position:: Any

Quick Details

Place of Origin:: Taiwan, China

Brand Name:: SHINING

Model Number:: TA-400

Terminal Block:: Din Rail Terminal Block

Din Rail Terminal Block:: Heavy Duty Terminal Block

Rated Voltage:: 600V

Rated Current:: 400A

Wire Size:: 280mm2 / 550

Screw Size:: M10

Pole / Way / Pin / Position:: Any

TA-400 600V 400A Heavy Duty Din Rail Terminal Block

General Product Information
Item number:	TA-400
Rating:	600V, 400A
Size:	*85.0106.050.0mm (LWH)*
Wire Size:	280 mm ² / 550
Screw Size:	M10

Dimensions [mm]
Item No.	Poles (P)	Length (L)	Width (W)	Height (H)
TA-400- 01P	1	50.0* 1 +35.0=85.0	106.0 mm	50.0 mm
TA-400- 02P	2	50.0* 2 +35.0=135.0
TA-400- 03P	3	50.0* 3 +35.0=185.0
TA-400- 04P	4	50.0* 4 +35.0=235.0
TA-400- 05P	5	50.0* 5 +35.0=285.0
TA-400- nP	n	50.0* n +35.0
35.0 mm = Length of End Plate

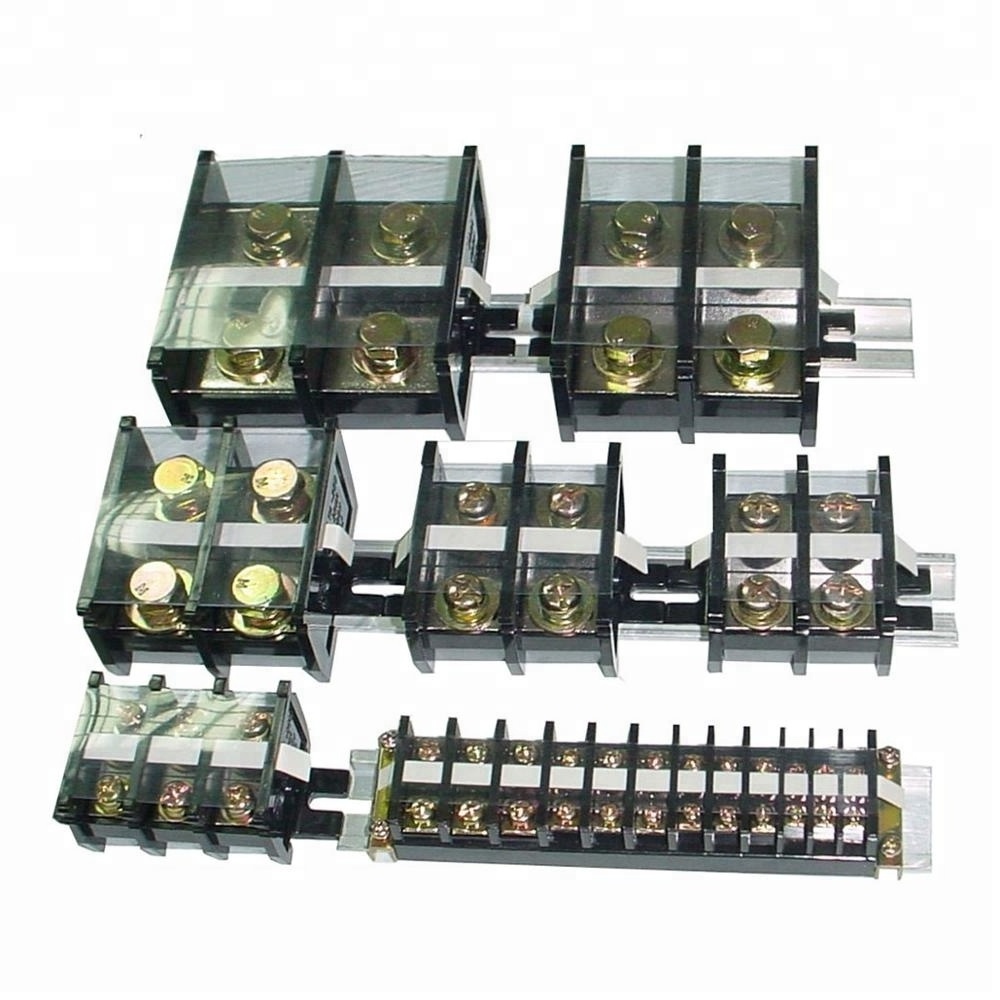

Product Photos

Product Description

Product Features

Item Number: TA-400

Rated Voltage: 600V

Rated Current: 400A

Install Type: By 35mm Din Rail / Panel Mounted

Pole: Any Pole Assembly is available

Certificate: RoHS

Assembly with Din Rail TA-001A / TA-001S

TA Series Terminal Block is Din Rail Mounted Terminal Blocks , the basic color is black. The product color can be changed according to customer requirements. They can also be installed without rail . There are reserved install holes on both sides. Load current can be 10A , 20A , 30A , 40A , 60A , 100A , 150A , 200A , 300A , 400A . The products are with a Transparent Cover or Protective Cover , whose materials are PVC , this makes the products are durable. Any number of poles can be assembled into the cartridge. About Paper Marker Strip , We can also provide Typing Service according to the customer requirements. Please see the specification sheet of our TA Series 35mm Din Mounting Rail Terminal Blocks Below:

Specification Sheet
TA Series Drawing
Item No.	TA-010	TA-020	TA-030	TA-040
	S pecification
Total Length (L) [mm]	8.8*n+17.0	10.7*n+16.5	13.0*n+17.0	15.0*n+17.0
Ref. Length (L1) [mm]	8.8*n+12.0	10.7*n+11.0	13.0*n+11.0	15.0*n+11.0
Gap (A) [mm]	7.0	8.0	10.0	12.0
Pitch (B) [mm]	8.8	10.7	13.0	15.0
Width (W) [mm]	38.0	38.0	38.0	38.0
Ref. Width (W1) [mm]	20.5	20.5	20.5	20.5
Height (H) [mm]	28.0	28.0	28.0	28.0
Screw (C) (Steel, Zinc Plated)	M3	M4	M4	M5
Rated Torque [N-m]	0.5	1.2	1.2	2.0
Rated Torque [in-lb]	4.4	10.6	10.6	17.7
Poles/Positions (P)	Any (n: the Number of Poles)
	Electrical Specification
Rated Voltage [V]	600V
Rated Current [A]	10A	20A	30A	40A
Wire Size [mm ² ]	1.6 mm ²	4.0 mm ²	6.0 mm ²	10.0 mm ²
Wire Size (AWG)	AWG 16	AWG 12	AWG 10	AWG 8
	Material
Insulator Materials	PC
Color	Black (White, Blue, Red, Brown, ...)
Flame Retarded Grade	UL94V-2 (UL94V-0)
Operating Temperature [℃]	-40℃~+110℃ (Max: +220℃)
Conductor	Brass, Nickel Plated (Copper, Tin Plated)
Accessories & Parts	Paper Marker Strips & Transparent Cover come with products for free. Others are optional. Protective Cover is optional for the alternative of Transparent Cover.
Accessories & Parts
End Plate	TA-010EP
End Clamp	TE-002 / TA-002 / TA-002H / TF-ECL / TF-ECH
DIN Mount Rail	TA-001A / TA-001S (35mm DIN Rail)
Protective Cover	M-PCV-A010 (=TA-003)
Transparent Cover	M-CV-010
Paper Marker Strip (Free)	M-MKS-010 (-XXX: Length)
Mounting Rod [mm] (Steel)	M-MRD-010S (-XXX: Length)
Remarks	Ex: TA-010-07P (7 poles assembly of TA-010)

TA Series Drawing
Item No.	TA-060	TA-100	TA-150	TA-200	TA-300	TA-400
	S pecification
Total Length (L) [mm]	20.5*n+34.0	26.5*n+35.5	30.0*n+34.0	35.0*n+35.0	42.0*n+34.0	50.0*n+35.0
Ref. Length (L1) [mm]	20.5*n+17.0	26.5*n+18.5	30.0*n+16.0	35.0*n+18.0	42.0*n+17.0	50.0*n+17.0
Gap (A) [mm]	16.5	22.5	26.0	31.0	37.0	45.0
Pitch (B) [mm]	20.5	26.5	30.0	35.0	42.0	50.0
Width (W) [mm]	50.0	64.0	70.0	80.0	106.0	106.0
Ref. Width (W1) [mm]	24.0	24.0	24.0	24.0	24.0	24.0
Height (H) [mm]	38.0	41.0	42.0	47.0	50.0	50.0
Screw (C) (Steel, Zinc Plated)	M6	M8	M8	M10	M10	M10
Rated Torque [N-m]	2.5	6.0	6.0	10.0	10.0	10.0
Rated Torque [in-lb]	22.1	53.1	53.1	88.5	88.5	88.5
Poles/Positions (P)	Any (n: the Number of Poles)
	Electrical Specification
Rated Voltage [V]	600V
Rated Current [A]	60A	100A	150A	200A	300A	400A
Wire Size [ mm ² ]	16.0 mm ²	35.0 mm ²	60.0 mm ²	100.0 mm ²	175.0 mm ²	280.0 mm ²
Wire Size (AWG)	AWG 6	AWG 2	1/0	3/0	350	550
	Material
Insulator Materials	PC (PA66)
Color	Black (White, Blue, Red, Brown, ...)
Flame Retarded Grade	UL94V-2 (UL94V-0)
Operating Temperature [℃]	-40℃~+110℃ (Max: +220℃)
Conductor	Brass, Nickel Plated (Copper, Tin Plated)
Accessories & Parts	Paper Marker Strips & Transparent Cover come with products for free. Others are optional. Protective Cover is optional for the alternative of Transparent Cover.
Accessories & Parts
End Plate	TA-060EP	TA-100EP	TA-150EP	TA-200EP	TA-300EP	TA-400EP
End Clamp	TA-002H / TF-ECH
DIN Mount Rail	TA-001A / TA-001S (35mm DIN Rail)
Protective Cover	N/A
Transparent Cover	M-CV-060	M-CV-100	M-CV-150	M-CV-200	M-CV-300	M-CV-300
Paper Marker Strip (Free)	M-MKS-060 (-XXX: Length)
Mounting Rod [mm] (Steel)	M-MRD-060S (-XXX: Length)
Remarks	Ex: TA-400-04P (4 poles assembly of TA-400)
