- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SHANTUI
-
Model Number:
-
SD16L
-
Dimension(Long * Breadth * High):
-
5262*4150*3074mm
-
Rated power/rated speed:
-
131kW/1850rpm
-
Overall weight:
-
18400kg
-
Engine brand:
-
SHANGCHAI
-
Track center distance:
-
2300mm
-
Track shoe width:
-
1100/950mm
-
Ground contact length:
-
2935mm
-
Fuel tank capacity:
-
315L
-
Blade type:
-
Straight tilting blade
-
Blade capacity:
-
3m³
-
Emissions:
-
Eu stage II
Quick Details
-
Machine Weight:
-
18400 KG
-
Dozing Capacity:
-
3m³
-
Marketing Type:
-
New Product
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SHANTUI
-
Model Number:
-
SD16L
-
Dimension(Long * Breadth * High):
-
5262*4150*3074mm
-
Rated power/rated speed:
-
131kW/1850rpm
-
Overall weight:
-
18400kg
-
Engine brand:
-
SHANGCHAI
-
Track center distance:
-
2300mm
-
Track shoe width:
-
1100/950mm
-
Ground contact length:
-
2935mm
-
Fuel tank capacity:
-
315L
-
Blade type:
-
Straight tilting blade
-
Blade capacity:
-
3m³
-
Emissions:
-
Eu stage II
PRODUCT DISCRIPTION

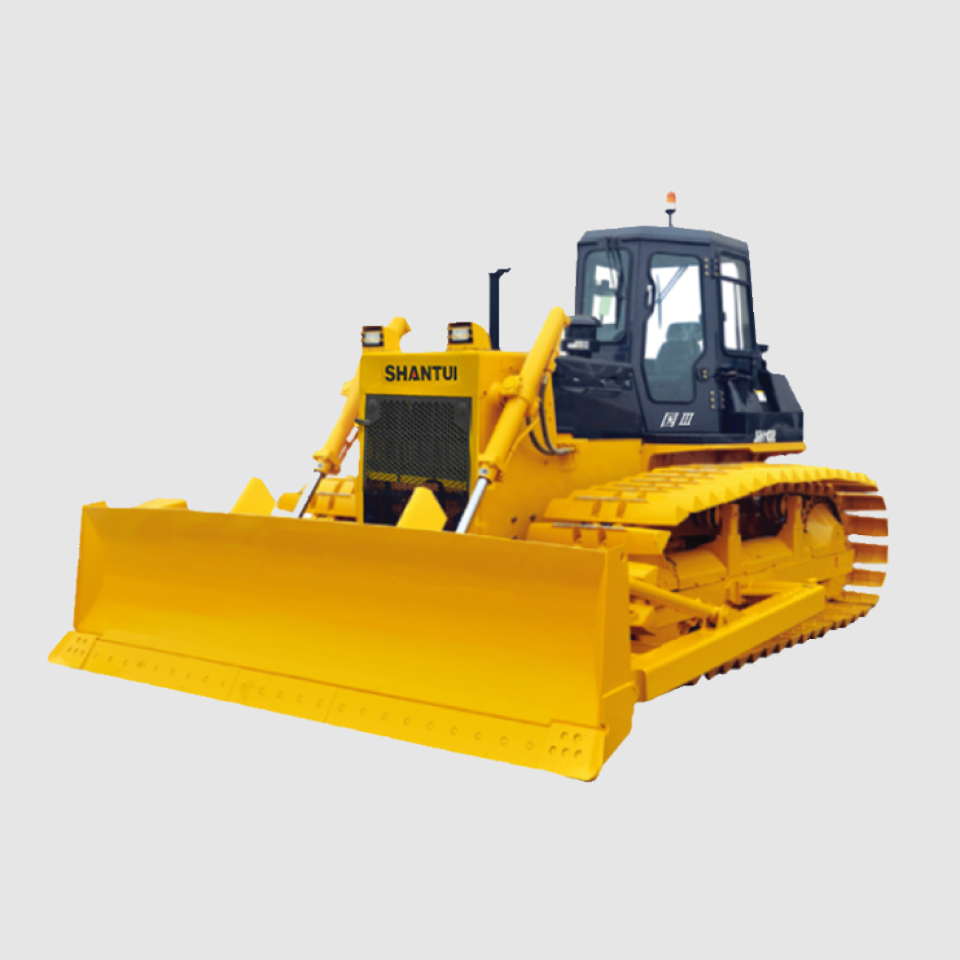

SHANTUI Heavy Machinery 178HP Bulldozers SD16L
Configuration Selling Point
Shantui’s self-manufactured drive system perfectly aligns with the engine curve, resulting in substantial traction and enhanced
transmission efficiency. Shantui’s self-developed four wheels and one track are built to be durable;
Shantui’s self-manufactured drive system perfectly aligns with the engine curve, resulting in substantial traction and enhanced
transmission efficiency. Shantui’s self-developed four wheels and one track are built to be durable;
Ease Of Maintenance And Operation Comfort
The openable side guard offers a spacious area and the reasonable layout of filter elements facilitates convenient maintenance.
The hexahedral cab is designed with ergonomic considerations and provides a spacious interior and wide field of view.
The openable side guard offers a spacious area and the reasonable layout of filter elements facilitates convenient maintenance.
The hexahedral cab is designed with ergonomic considerations and provides a spacious interior and wide field of view.
Adaptability To Diverse Working Conditions
The machine is equipped with a straight tilt blade for enhanced cutting force. With its broad track contact area, it excels in
challenging conditions such as wetlands and marshes without getting stuck, demonstrating excellent passability;
The machine is equipped with a straight tilt blade for enhanced cutting force. With its broad track contact area, it excels in
challenging conditions such as wetlands and marshes without getting stuck, demonstrating excellent passability;
CONTACT
Nancy Hu
WhatsApp/Mobile: +86 18221941029
WhatsApp/Mobile: +86 18221941029
E-mail: nancy@oriemac.com
PRODUCTS PICTURES
PRODUCT PARAMETER
|
Parameter name
|
SD16L（Super-wetland version）
|
|
Performance parameters
|
|
|
Operating weight (Kg)
|
18400
|
|
Ground pressure (kPa)
|
25
|
|
Engine
|
|
|
Engine model
|
WD10(China-II)/WP10(China-III)
|
|
Rated power/rated speed (kW/rpm)
|
131/1850
|
|
Overall dimensions
|
|
|
Overall dimensions of machine (mm)
|
5262*4150*3074
|
|
Driving performance
|
|
|
Forward speed (km/h)
|
F1:0-3.29,F2:0-5.82,F3:0-9.63
|
|
Reversing speed (km/h)
|
R1:0-4.28,R2:0-7.59,R3:0-12.53
|
|
Chassis System
|
|
|
Center distance of track (mm)
|
2300
|
|
Width of track shoes (mm)
|
1100/950
|
|
Ground length（mm）
|
2935
|
|
Tank capacity
|
|
|
Fuel tank (L)
|
315
|
|
Working device
|
|
|
Blade type
|
Straight tilting blade
|
|
Digging depth (mm)
|
485
|
|
Ripper type
|
——
|
|
Ripping depth (mm)
|
——
|
