Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Laiyuan
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
0.5 KG
-
Working Temperature Range:
-
10 - 800 ℃
-
Core Components:
-
Heating element, cartridge heater
-

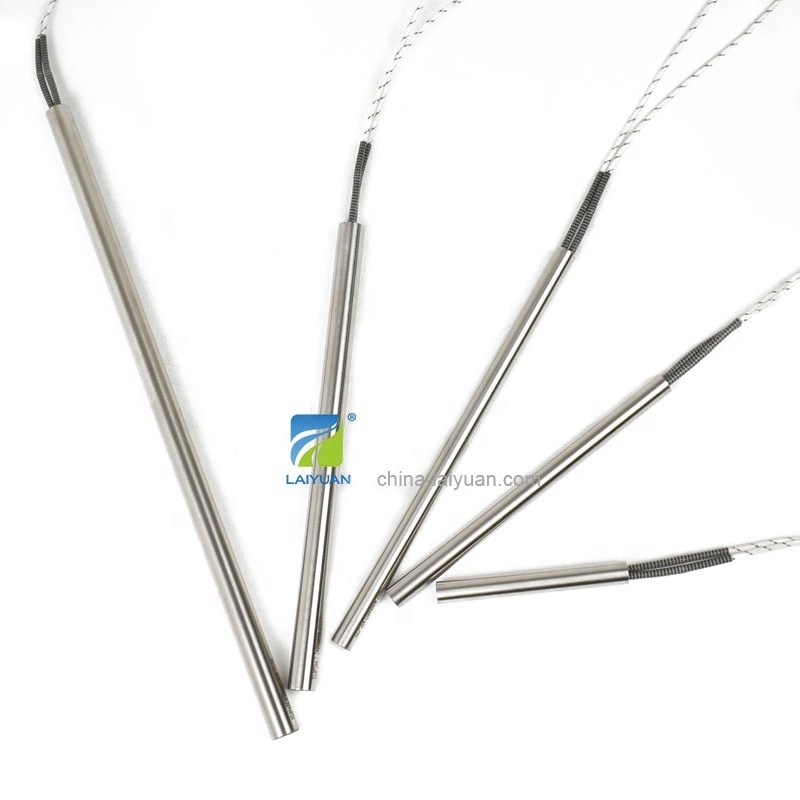

Product name:
-
Electric Cartridge Heater
-
Surface Material:
-
SS304,SS316,SS316L Incoloy 800
-
Product Structure:
-
Mgo Tube, Mgo Power, Resistance, SS tube
-
Power tolerance:
-
5 % - 10 %
-
Packing Details:
-
Single Plastic Bag , and Carton
-
OEM&ODM:
-
yes
-
Working temperature:
-
800Celsius max
-
Tolerance of length:
-
+/-1.5%
-
Tolerance of diameter:
-
-0.01 a -0.06 m/m
-
Tolerance of cut of connexion:
-
+/-15 mlm
Quick Details
-
Type:
-
Cartridge Heater
-
Power Source:
-
Electric
-
Voltage:
-
12-480v
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Laiyuan
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
0.5 KG
-
Working Temperature Range:
-
10 - 800 ℃
-
Core Components:
-
Heating element, cartridge heater
-
Product name:
-
Electric Cartridge Heater
-
Surface Material:
-
SS304,SS316,SS316L Incoloy 800
-
Product Structure:
-
Mgo Tube, Mgo Power, Resistance, SS tube
-
Power tolerance:
-
5 % - 10 %
-
Packing Details:
-
Single Plastic Bag , and Carton
-
OEM&ODM:
-
yes
-
Working temperature:
-
800Celsius max
-
Tolerance of length:
-
+/-1.5%
-
Tolerance of diameter:
-
-0.01 a -0.06 m/m
-
Tolerance of cut of connexion:
-
+/-15 mlm
Product Parameters
|
Diameter
|
3.0mm to 85mm
|
|
|
|
|||
|
Diameter tolerance
|
0mm~0.08mm
|
|
|
|
|||
|
Length tolerance
|
±1mm
|
|
|
|
|||
|
Cold zone
|
5~15mm from lead wire; 3~10mm at the bottom
|
|
|
|
|||
|
Max surface loading
|
40w/cm^2
|
|
|
|
|||
|
Voltage
|
1.5V~480V
|
|
|
|
|||
|
Insulation resistance
|
500ohm
|
|
|
|
|||
|
Temperature tolerance
|
±3℃
|
|
|
|
|||
|
Shape
|
Straight/ L/ Square/ Screw/Split type/ Special-shaped
|
|
|
|
|||
|
Resistance Heating Wire
|
NiCr 80/20 wire/High grade nickel chromium resistance wire
|
|
|
|
|||
|
Material of lead wire
|
Silicone rubber; PTFE; High Temperature Fiberglass; Metal hose protection; Metal braided
|
|
|
|
|||
|
Thermocouple wire
|
K type,J type,E type ,PT100,NTC
|
|
|
|
|||
|
Method of lead wire
|
Internal wire(Swaged) and External wire (Cripmed)
|
|
|
|
|||
|
Wattage Tolerance
|
+5%,-10%
|
|
|
|
|||
|
Resistance Tolerance
|
+10%,-5%
|
|
|
|
|||
|
Insulation Resistance(cold)
|
≥ 500 MΩ
|
|
|
|
|||
|
Maximum leakage current(cold)
|
≤0.5 mA
|
|
|
|
|||
|
Max Sheath Temp/
Maximum Operating Temperature(℃)
|
1400℉(760℃)
|
|
|
|
|||
|
Packaging
|
Plastic bag,Carton box,Wooden box
|
|
|
|
|||
Dimensions of Some Standards Products
|
Dia*L
(mm)
|
Power
(low density)
|
Power
(high density)
|
Dia*L
(mm)
|
Power
(low density)
|
Power
(high density)
|
|||||
|
6-60
|
60W
|
120W
|
14-100
|
200W
|
450W
|
|||||
|
6-80
|
100w
|
200W
|
14-120
|
250W
|
520W
|
|||||
|
6-200
|
190W
|
350W
|
14-150
|
330W
|
650W
|
|||||
|
8-50
|
65W
|
120W
|
14-200
|
400W
|
880W
|
|||||
|
8-100
|
125W
|
250W
|
14-250
|
550W
|
1000W
|
|||||
|
8-150
|
200W
|
350W
|
14-300
|
650W
|
1300W
|
|||||
|
8-200
|
250W
|
500W
|
16-100
|
250W
|
500W
|
|||||
|
10-60
|
100W
|
200W
|
16-120
|
300W
|
600W
|
|||||
|
10-80
|
125W
|
250W
|
16-150
|
350W
|
750W
|
|||||
|
10-120
|
200W
|
375W
|
16-200
|
500W
|
1000W
|
|||||
|
10-150
|
235W
|
475W
|
16-250
|
600W
|
1250W
|
|||||
|
10-200
|
300W
|
600W
|
16-300
|
750W
|
1500W
|
|||||
|
10-300
|
470W
|
900W
|
18-100
|
250W
|
550W
|
|||||
|
12-60
|
115W
|
225W
|
18-150
|
400W
|
850W
|
|||||
|
12-100
|
200W
|
375W
|
18-200
|
550W
|
1150W
|
|||||
|
12-120
|
225W
|
450W
|
18-300
|
850W
|
1500W
|
|||||
|
12-150
|
280W
|
550W
|
20-100
|
300W
|
650W
|
|||||
|
12-200
|
375W
|
750W
|
20-150
|
450W
|
950W
|
|||||
|
12-300
|
550W
|
1000W
|
20-300
|
950W
|
1800W
|
|||||
|
We have various types, also support customization, please feel free to consult!
We will provide you with professional services.
|
|
|
|
|
|
|||||
Order Notification
1. Confirm whether the heating pipe is heated by mould or liquid?
2. Pipe diameter: the default diameter is negative tolerance, for example, the diameter of 10 mm is 9.8-10 mm.
3. Pipe length: ± 2mm
4. Voltage: 220V (other 12v-480v)
5. Power: + 5% to - 10%
6. Lead length: default length: 300 mm (customized)
