Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
teconway
-
Voltage:
-
Local Power
-
Dimension(L*W*H):
-
Customized Size
-
Weight (KG):
-
1000 kg
-
Product name:
-
Scraper Conveyor
-
Keyword:
-
Scraper Conveyor
-
Usage:
-
Material Conveying
-
Application:
-
Conveying
-
Color:
-
Silver
-
Motor:
-
3.0~5.5KW
Quick Details
-
Power:
-
Customized
-
Warranty:
-
1 Year
-
Width or Diameter:
-
300mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
teconway
-
Voltage:
-
Local Power
-
Dimension(L*W*H):
-
Customized Size
-
Weight (KG):
-
1000 kg
-
Product name:
-
Scraper Conveyor
-
Keyword:
-
Scraper Conveyor
-
Usage:
-
Material Conveying
-
Application:
-
Conveying
-
Color:
-
Silver
-
Motor:
-
3.0~5.5KW
TECONWAY Conveyors
Over 20 years of experience
Market-leading quality at market-beating prices
Precision, Reliable, Easy to Maintain, Customized
Market-leading quality at market-beating prices
Precision, Reliable, Easy to Maintain, Customized

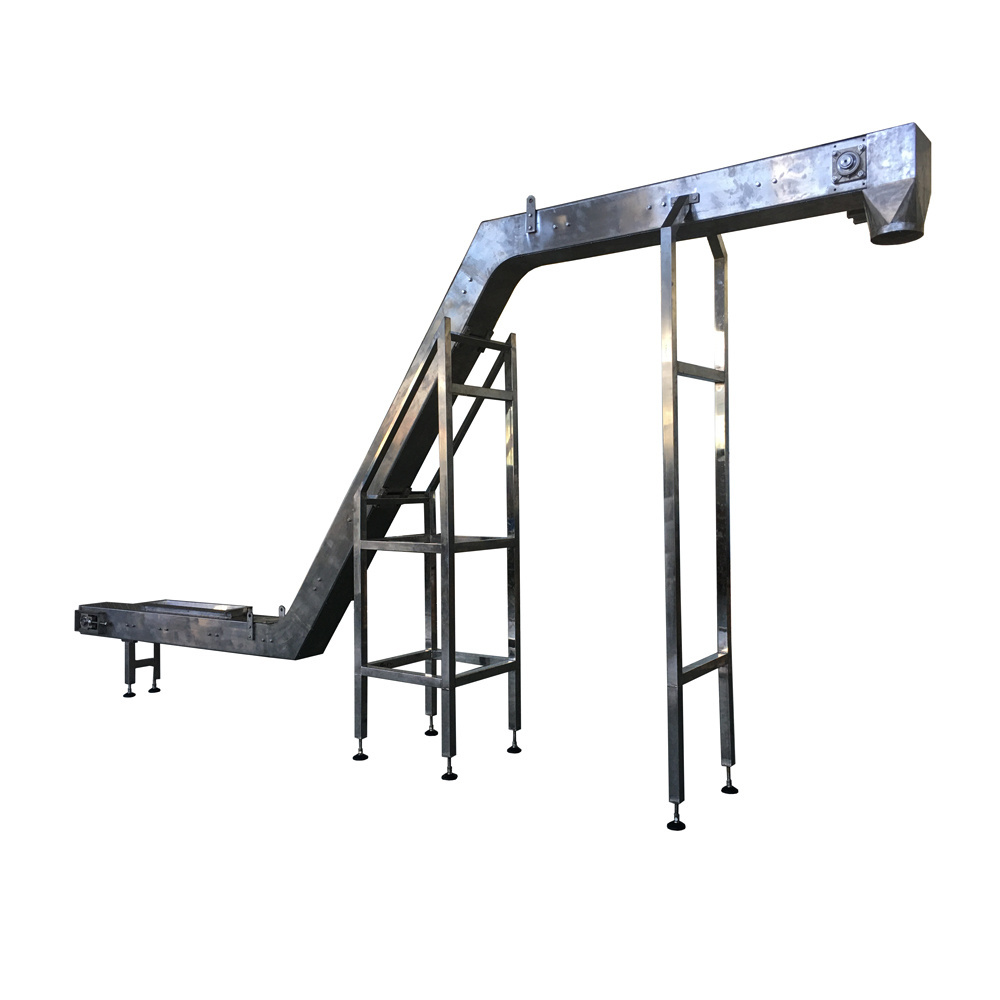

Products Description
A
scraper conveyor
is a material transportation device utilizing a continuous, driven chain circuit equipped with regularly spaced cross members. The chain travels through a channel or trough which prevents the transported materials from falling off the conveyor, while the cross members, also named scraping plate/blade, drag or “scrape” them forward to the discharge point. It is also called drag chain conveyor.
The design is ideal for slower transportation speeds over short distances, on moderate inclines. The compact and versatile design allows scrape conveyors to fit almost any plant layout.
This type of conveyor is typically more cost effective to install and maintain than a belt conveyor of similar capacity and
length. Scraper conveyor can less damage the original shape and state of the material, compared with screw conveyor.
The design is ideal for slower transportation speeds over short distances, on moderate inclines. The compact and versatile design allows scrape conveyors to fit almost any plant layout.
This type of conveyor is typically more cost effective to install and maintain than a belt conveyor of similar capacity and
length. Scraper conveyor can less damage the original shape and state of the material, compared with screw conveyor.
|
TECONWAY Scraper Conveyor Technical Parameters
|
|
|
|
|
|
|
||||||
|
Model Type
|
Scraping Plate Width
|
Conveying Capacity
|
Power
|
Revolving Speed
|
Chain Pitch
|
Inclined Angle
|
||||||
|
|
mm
|
m³/h
|
Kw
|
r/min
|
mm
|
°
|
||||||
|
TGB200
|
200
|
1.0～2.0
|
2.2～3.0
|
15～30
|
38.1/50.8
|
0～45°
|
||||||
|
TGB250
|
250
|
2.0～4.0
|
3.0～4.0
|
15～30
|
50.8
|
0～45°
|
||||||
|
TGB300
|
300
|
4.0～8.0
|
4.0～5.5
|
15～30
|
63.5
|
0～45°
|
||||||
|
TGB350
|
350
|
8.0～12
|
5.5～7.5
|
15～30
|
63.5
|
0～45°
|
||||||
|
TGB400
|
400
|
12～20
|
7.5～11
|
15～30
|
76.2
|
0～45°
|
||||||
|
1. The motor with different power should be determined according to the working condition, conveyed materials, inclined angle and
conveying length and other factors; |
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
||||||
|
2. Teconway will design and manufacture conveyors to suit your specific requirements.
|
|
|
|
|
|
|
||||||

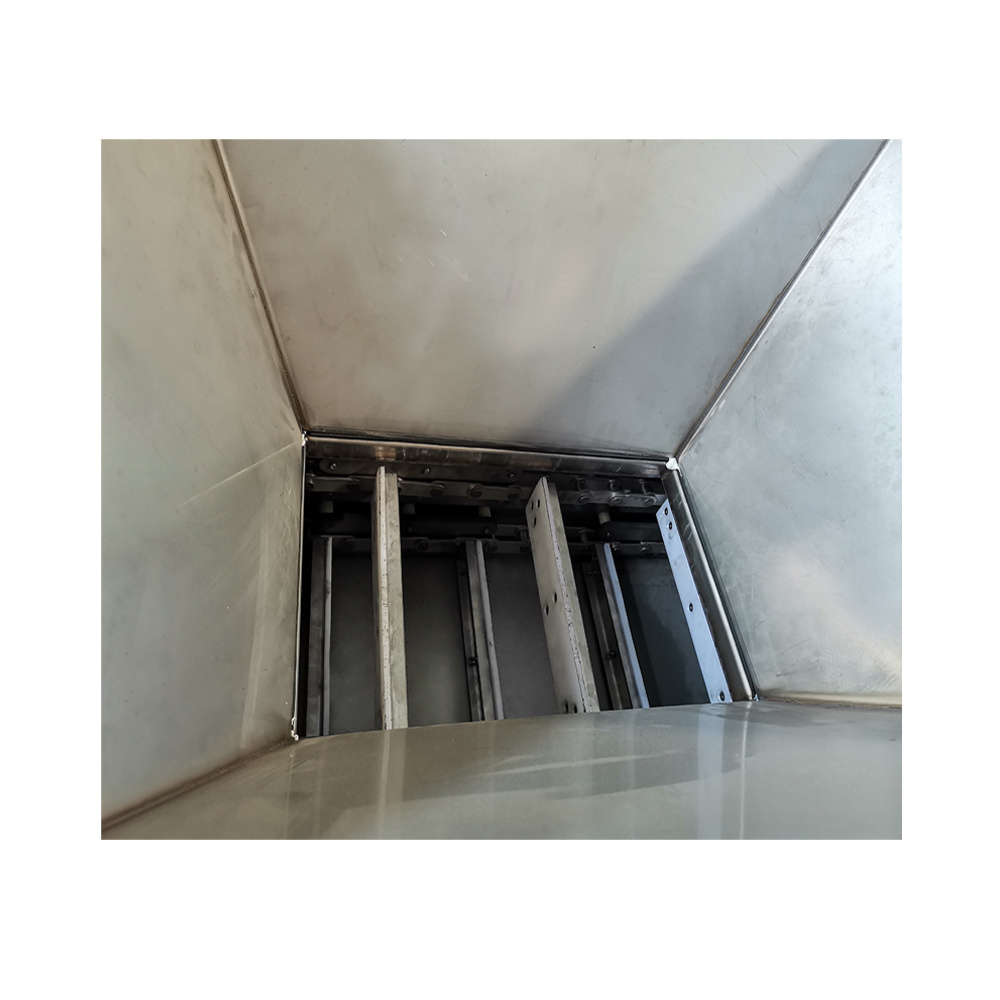

Spaced Cross Members
Scraping blades/plates made of stainless steel and nylon plates

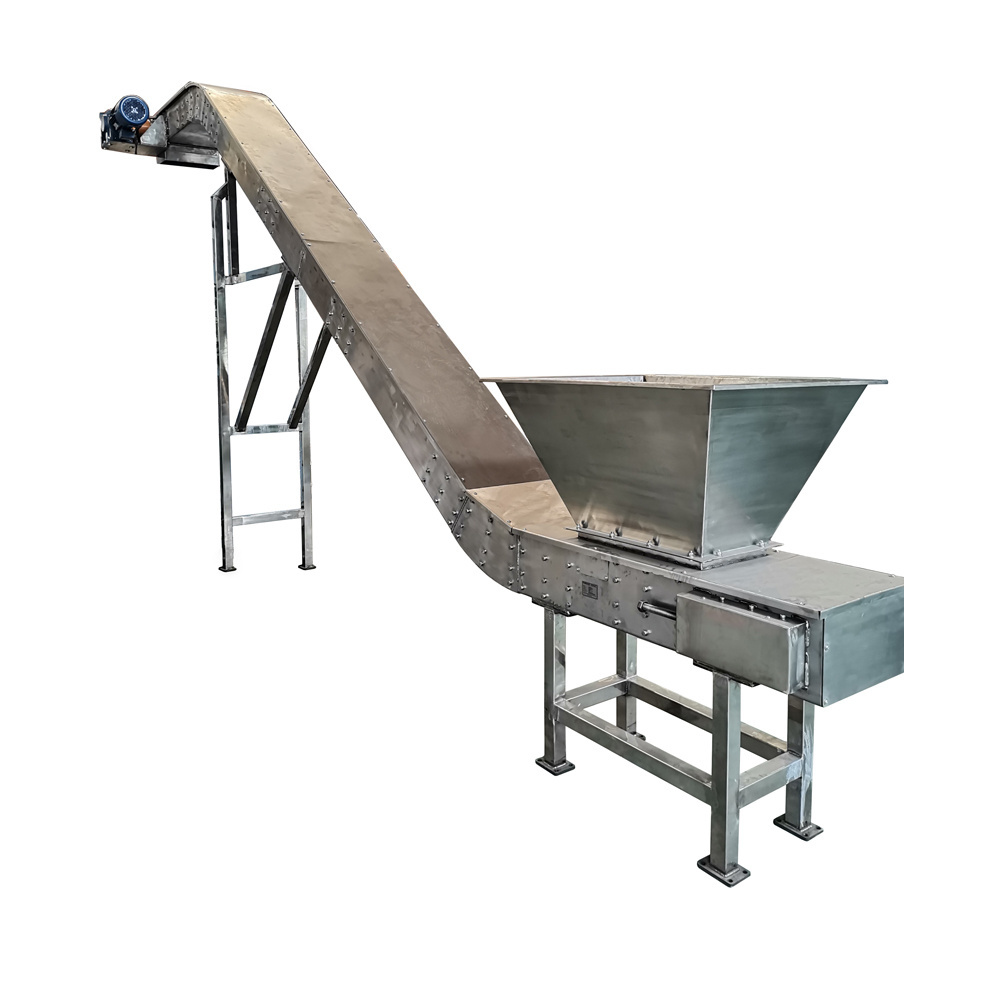

Customized Hopper
Customize the volume as needed
Optional equipped with breaking or stirring mechanism
Optional equipped with breaking or stirring mechanism
NSK, SKF bearings
NSK, SKF bearings/
Customer-specified brand
External equiped tension device for easy adjusting.
Well-known Brand Gear Motor
Well-known Brand Gear Motor
/ Customer-specified brand
ADVANTAGE
1.
Full Engineering Design Support
2. Advanced Equipment and Benchmark Quality
APPLICATION
Main Product
Why Choose Us
Certifications
Production Line
Packing&Shipping
FAQ
Q1: Are you manufacturer or trader?
A1: We are professional manufacturer with 20+ years experiences.
Q2: What is the slitter function?
A2: Slitting dough sheet into noodles, such as instant noodles, dry or fresh noodles, rice noodles, vermicelli, spaghetti, etc.
Q3: What is the slitter material？
A3: SUS304/410/316 stainless steel roller and frame; Or carbon steel roller, stainless steel frame;
We accept customization..
Q4: What noodle size can it make?
A4: Round noodle / Square(flat)noodle: 0.6mm～30mm as your needs.
Q5: What is the mode of transportation?
A5: Most LCL and FCL ship by Sea, by Air or Train also ok.
Q6: How about the delivery time?
A6: Within 15-20 working days after payment.
Q7: How long is the guarantee time?
A7: 12 months after goods received, excluding improper use or human damage.
Q8: What should I do if meeting some trouble while using?
A8: We have an English manual packed inside the packing box. Also, we will provide photos or videos to help you to resolve the problem.
Q9: What is your MOQ?
A9: 1 set.
