Quick Details
-
Printing Type:
-
all machine
-
Weight (KG):
-
15
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DAN
Quick Details
-
Condition:
-
New
-
Type:
-
web guide control
-
Use:
-
all machine
-
Printing Type:
-
all machine
-
Weight (KG):
-
15
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DAN

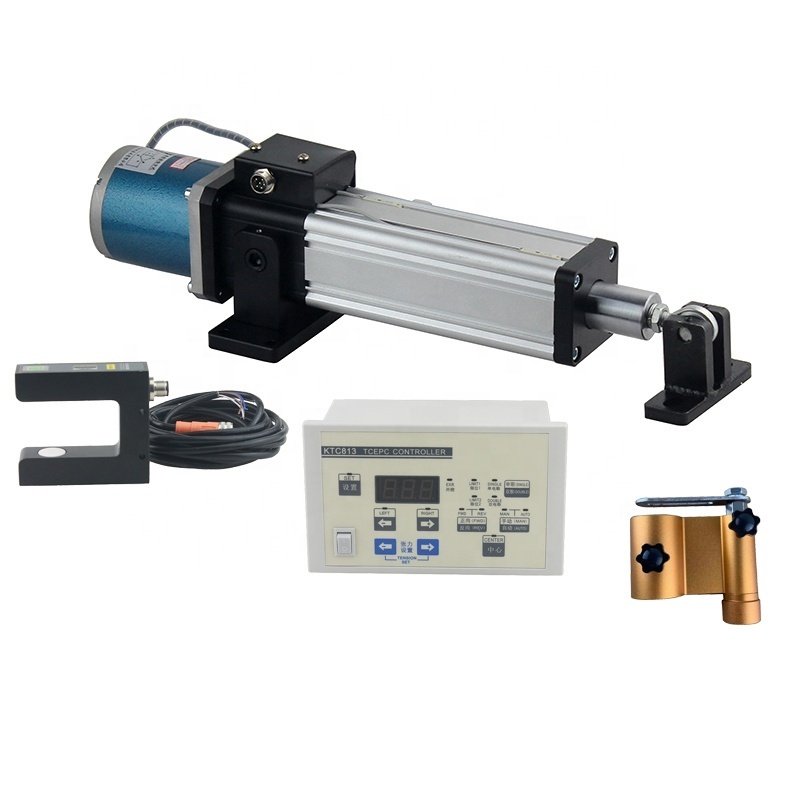

tension and web guide control system
Edge position control is consists of web guide controller,ultrasonic sensor,and ,web guide actuator. It can EPC , The web guiding system correction for all kinds of coil: such as web film, adhesive paper, metal foil, non-woven, fabric coil for high speed precision rectification work, mainly used in printing and packaging, paper, film, textile industries need to control edge
Technical parameters
|
Model No |
KTC813 tension and web guide controller |
|
Power Supply |
AC 220V 50/60 Hz( If you need Other voltage please kindly contact With us) |
|
Working environment |
0-40C (No condensation) |
|
Net Weight |
1KG |
|
Model No |
US400/PS400 |
|
Power input |
DC 12V |
|
Power output |
Double digital TTL level |
|
detective range |
6+-3mm |
|
detective accuracy |
0.01mm |
|
Detector methods |
ultrasonic exposure |
|
carrier frequency |
200KHz |
|
working environment |
0-80c RH <=80% |
|
IP grade |
IP65 |
|
Shell material |
Aluminum alloy(blue color or Grey color ) |
|
Net weight |
470g |
|
Model No |
DWG-90 Actuator |
|
Max thrust (Kgf) |
200KG |
|
Max weight |
500KG |
|
Rod Stroke |
150mm |
|
Driving Speed |
20mm/Sec |
|
Net Weight |
13KG |
