Quick Details
-
Application:
-
water treatment
-
Feature:
-
high efficient
-
Function:
-
sterlization and UV protection
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
High quality 16W UV lamp water sterilizer
-
Model:
-
UV-4/12/16/25/30/55W
-
Application:
-
water treatment
-
Feature:
-
high efficient
-
Function:
-
sterlization and UV protection
Product Description

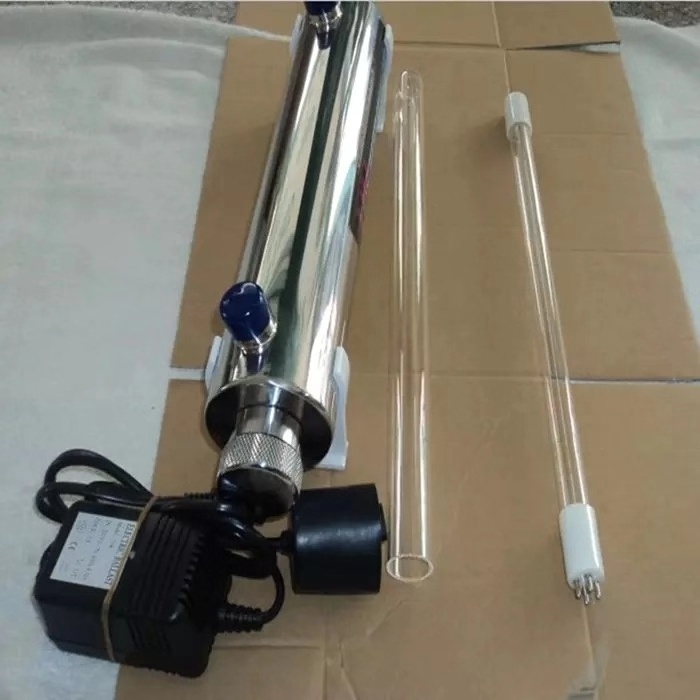

The UV sterilizers are uniquely designed to permit the water to pass all around the germicidal lamp, taking advantage of the 360º light source. When microorganisms are exposed to this light, the UV energy causes a change in the chemical bonds of the DNA molecules. This alteration results in their inability to multiply and therefore their elimination. The UV sterilizer is one of the cleanest, most non-pollution, non-chemical, without any color and odor and leaves no residue; it is the most natural way to kill virus and bacteria. This technique is often applied for drinking water, aquariums, garden ponds, breeder tanks and commercial applications.
Features
• International brand PHILPS and LIGHTSOURCE UV lamp with 9000-12000 hours working life.
• UV chamber with 304 SUS material(316L is optional), with mechanical polishing and welding.
(Electrolytic polishing is optional)
• The chamber pressure resistance meets the standard specification 1.0 Mpa.
• High performance ballast with operate LED light, approved by CE and UL certification.
• International brand PHILPS and LIGHTSOURCE UV lamp with 9000-12000 hours working life.
• UV chamber with 304 SUS material(316L is optional), with mechanical polishing and welding.
(Electrolytic polishing is optional)
• The chamber pressure resistance meets the standard specification 1.0 Mpa.
• High performance ballast with operate LED light, approved by CE and UL certification.
|
Product name
|
uv lamp drinking water sterilizer filter
|
|
Model
|
4-110W uv La mp
|
|
Material
|
Stainless steel 304
|
|
More Power choice
|
4/12/16/25/30/55/110/165/220W
|
|
Function
|
Sterilization and UV protection
|
|
Treat capacity water
|
0.5T/H
|
|
Warranty
|
1 Year
|
|
Packing
|
Moisture, pressure, shockproof inside
|
Big capacity with Control Panel
UV transmittance>90%
When the
Lamp or circuit with Problem ,the Ballast will make beep voice and LED light
Application
1.Central air-conditioning cooling water system
2.
Refrigerated circulating water system
3.
Boiler floor heating water treatment
Size Information
More specification can choose
|
Model
|
Water treat capacity
|
Lamp
Configuration
|
Inlet and outlet diameter
|
Size
(mm)L*D*H
|
Shelf life
|
material
|
|
UV-4W
|
0.056T/H
|
10W*1
|
1/4 inch
|
236*51*51
|
9000h
|
304
|
|
UV-12W
|
0.11T/H
|
12W*1
|
1/4 inch
|
300*51*51
|
9000h
|
304
|
|
UV-16W
|
0.5T/H
|
16W*1
|
1/2 inch
|
330*51*51
|
9000h
|
304
|
|
UV-25W
|
1.5T/H
|
25W*1
|
1/2inch
|
550*63*63
|
9000h
|
304
|
|
UV-30W
|
2.0T/H
|
30W*1
|
3/4inch
|
869*63*63
|
9000h
|
304
|
|
UV-55W
|
3.0T/H
|
55W*1
|
3/4inch
|
910*63*63
|
9000h
|
304
|
|
5UV-110W
|
5.4T/H
|
55W*2
|
1 inch
|
910*110*110
|
9000h
|
304
|
|
UV-165W
|
8.5T/H
|
55W*3
|
1.5inch
|
910*135*135
|
9000h
|
304
|
|
UV-220W
|
10.0T/H
|
55W*4
|
1.5inch
|
910*135*135
|
9000h
|
304
|
