Quick Details
-
Power Source:
-
Electric
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
oZocenter
-
Model Number:
-
CH-PTF
-
commodity name:
-
ceramic ozone generator cell
-
voltage:
-
110v or 220v
-
application:
-
air or water treatment
-
cooling way:
-
air cooling
-
ozone capacity:
-
2-6 g/hr
-
ozone generating way:
-
corona discharge
-
generator type:
-
ozone generator reactor
-
MOQ:
-
5
-
Function:
-
air and water treatment
Quick Details
-
After-sales Service Provided:
-
Return and Replacement, Field maintenance and repair service, Overseas Call Centers
-
Warranty:
-
1 Year
-
Application:
-
Hotel, Household
-
Power Source:
-
Electric
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
oZocenter
-
Model Number:
-
CH-PTF
-
commodity name:
-
ceramic ozone generator cell
-
voltage:
-
110v or 220v
-
application:
-
air or water treatment
-
cooling way:
-
air cooling
-
ozone capacity:
-
2-6 g/hr
-
ozone generating way:
-
corona discharge
-
generator type:
-
ozone generator reactor
-
MOQ:
-
5
-
Function:
-
air and water treatment

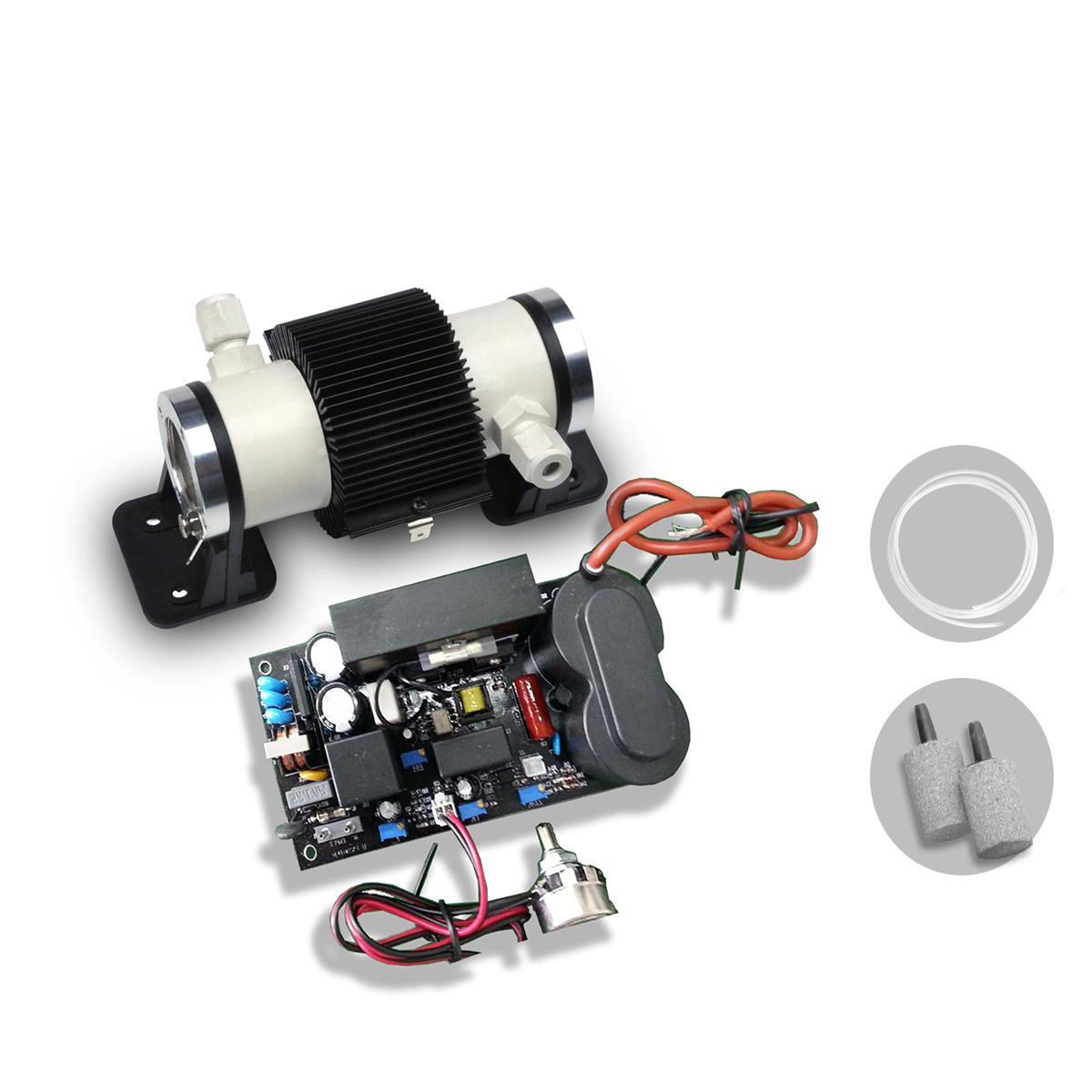

Hot recommend 1G 3G 5G 6G 7G high concentration adjustable ceramic ozone generator parts
Imported material of high pure ceramic, SS 316L of internal electrode, which are best anti-oxidation material for ensuring several years running.
Features:
1. Extremely low rate of ozone decay & high ozone concentration .
Ozone concentration can be around.30~86 Mg/L, which is much higher than conventional products.
2. Domestic patent product-got domestic patent in 2008.
Air cooled for internal & external electrodes with low temperature rise of continuously working, high efficiency and stable ozone output.
3. Low working voltage.
The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.
4. Small in size.
It saves space effectively. The size is 1/4 smaller than similar products.
5. Easy to maintain and install
1. Extremely low rate of ozone decay & high ozone concentration .
Ozone concentration can be around.30~86 Mg/L, which is much higher than conventional products.
2. Domestic patent product-got domestic patent in 2008.
Air cooled for internal & external electrodes with low temperature rise of continuously working, high efficiency and stable ozone output.
3. Low working voltage.
The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.
4. Small in size.
It saves space effectively. The size is 1/4 smaller than similar products.
5. Easy to maintain and install
CH-PTF3GA-1 ~5GA-1
|
Item
|
Unit
|
CH-PTF*A-1
|
|
|
|
|
|
|||||
|
|
|
3GA-1 (12V,24V)
|
3GA-1 (220V)
|
3GA-1 (110V)
|
5GA-1 (12V,24V)
|
5GA-1 (220V)
|
5GA-1 (110V)
|
|||||
|
Ambient temperature
|
℃
|
21
|
|
|
|
|
|
|||||
|
Ambient humidity
|
%
|
40
|
|
|
|
|
|
|||||
|
Power
|
W
|
≤80
|
|
|
|
|
|
|||||
|
Oxygen feed flow rate
|
LPM
|
0.5-1
|
|
|
0.5-2
|
|
|
|||||
|
Ozone concentration
|
Mg/L
|
81.6-49.2
|
|
|
72~48
|
|
|
|||||
|
Ozone output
|
G/Hr
|
2.4-2.95
|
|
|
2.16~4.76
|
|
|
|||||
|
Ozone output adjustable range
|
%
|
20~100
|
|
|
|
|
|
|||||
|
Line power supply
|
V/Hz
|
12V 24V 110/60 220/50
|
|
|
|
|
|
|||||
|
Cooling way
|
/
|
Air cooling
|
|
|
|
|
|
|||||
|
Diameter of cooling fan
|
mm
|
120
|
|
|
|
|
|
|||||
|
Diameter of gas inlet/outlet
|
mm
|
EDФ6
|
|
|
|
|
|
|||||
|
Power supply dimensions
|
mm
|
158*75*68
|
|
|
|
|
|
|||||
|
ozone tube dimensions
|
mm
|
165×90*90
|
|
|
185*90*90
|
|
|
|||||
|
Ozone tube weight
|
Kg
|
0.5
|
|
|
0.53
|
|
|
|||||
|
Power supply weight
|
Kg
|
0.52
|
|
|
|
|
|
|||||
CH-PTF6GA-1 ~7GA-1
|
Item
|
Unit
|
CH-PTF*A-1
|
|
|
|
|
|
|||||
|
|
|
6GA-1 (12V,24V)
|
6GA-1 (220V)
|
6GA-1 (110V)
|
7GA-1 (12V,24V)
|
7GA-1 (220V)
|
7GA-1 (110V)
|
|||||
|
Ambient temperature
|
℃
|
26
|
|
|
|
|
|
|||||
|
Ambient humidity
|
%
|
49
|
|
|
|
|
|
|||||
|
Power
|
W
|
≤85
|
|
|
|
|
|
|||||
|
Oxygen feed flow rate
|
LPM
|
1-3
|
|
|
1-3
|
|
|
|||||
|
Ozone concentration
|
Mg/L
|
64.6~36.7
|
|
|
70~41.2
|
|
|
|||||
|
Ozone output
|
G/Hr
|
3.9~6.6
|
|
|
4.20~7.4
|
|
|
|||||
|
Ozone output adjustable range
|
%
|
20~100
|
|
|
|
|
|
|||||
|
Line power supply
|
V/Hz
|
12V 24V 110/60 220/50
|
|
|
|
|
|
|||||
|
Cooling way
|
/
|
Air cooling
|
|
|
|
|
|
|||||
|
Diameter of cooling fan
|
mm
|
150
|
|
|
|
|
|
|||||
|
Diameter of gas inlet/outlet
|
mm
|
EDФ6
|
|
|
|
|
|
|||||
|
Power supply dimensions
|
mm
|
158*75*68
|
|
|
|
|
|
|||||
|
ozone tube dimensions
|
mm
|
200*90*90
|
|
|
212*90*90
|
|
|
|||||
|
Ozone tube weight
|
Kg
|
0.56
|
|
|
0.65
|
|
|
|||||
|
Power supply weight
|
Kg
|
0.52
|
|
|
|
|
|
|||||
Guangzhou Chuanghuan Ozone Electric Appliance Co., Ltd.
which was established in 2006, It focuses on Ozone generator, Oxygen machine , Ozone tube, accessories production, development and application of products.
With the development for several years, the company has been in 16 aspects of
the ozone generator. Most products have had CE certification. We are the key suppliers for components of ozone generators in domestic and foreign manufacturers. Our products include the 100mg-10kg / h of ozone and ozone accessories. The core types of ozone generators are quartz tube, ceramic and enamel, widely used in water and air treatment. Products are exported to Europe,North and South America, Southeast Asia, Middle East, Africa and dozens of countries.
the ozone generator. Most products have had CE certification. We are the key suppliers for components of ozone generators in domestic and foreign manufacturers. Our products include the 100mg-10kg / h of ozone and ozone accessories. The core types of ozone generators are quartz tube, ceramic and enamel, widely used in water and air treatment. Products are exported to Europe,North and South America, Southeast Asia, Middle East, Africa and dozens of countries.
Our Services & Strength
1,We are a company integrating industry and trade. If you want to visit the factory, we can arrange it at any time.
1,We are a company integrating industry and trade. If you want to visit the factory, we can arrange it at any time.
2,Our company with rich experience about ozone generator and oxygen machine use for air purification and water treatment, gets ISO certification every year.
3,We have our own R & D team and technical team.
4,From material ,such as ceramic tube: ozone tube is imported material of high pure ceramic, SS 316L of internal electrode, which are best anti-oxidation material，the ozone machine life reach 20,000 hours,ect.
5,The quality of our products is guaranteed, the one-year warranty ect.
3,We have our own R & D team and technical team.
4,From material ,such as ceramic tube: ozone tube is imported material of high pure ceramic, SS 316L of internal electrode, which are best anti-oxidation material，the ozone machine life reach 20,000 hours,ect.
5,The quality of our products is guaranteed, the one-year warranty ect.
P
ackaging:
We insist on making the best package. This package is solid which contacts foam inside. We have professional in packing and avoid any troubles during shipping.
We insist on making the best package. This package is solid which contacts foam inside. We have professional in packing and avoid any troubles during shipping.
Delivery:
1) 3~7 days for portable ozone generator order.
2) 10~30 days for industrial/middle size ozone generator order.
3) Shipping could be courier, airline or sea.
1) 3~7 days for portable ozone generator order.
2) 10~30 days for industrial/middle size ozone generator order.
3) Shipping could be courier, airline or sea.
Q1: Are you trading company or manufacturer ?
Re:We are a company integrating factory and trade
Q2: How long is your delivery time?
Re:Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q3: What is your terms of payment ?
Re: We support T/T, Western union, Alipay , Paypal, L/C
Q4: Are you provide the after-sales service ?
Re: Yes,we offer one year warranty, and we have a dedicated after-sales service team to provide you with the whole process.
Q2: How long is your delivery time?
Re:Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q3: What is your terms of payment ?
Re: We support T/T, Western union, Alipay , Paypal, L/C
Q4: Are you provide the after-sales service ?
Re: Yes,we offer one year warranty, and we have a dedicated after-sales service team to provide you with the whole process.
