Quick Details
-
Power:
-
18.5KW
-
Dimension(L*W*H):
-
1.63*1.41*1.45M
-
Motor:
-
FJ600
-
Raw material:
-
tree branches, stalk, etc
-
feature:
-
low noise, removable
-
technical service:
-
24 hours service
-
moisture required:
-
10-30%
-
input dia:
-
less than 50mm
-
output dia:
-
3-5mm
-
After-sales Service Provided:
-
Engineers available to servic machinery overseas, Field maintenance and repair service
-
Usage:
-
Chip.shaving.sawdust
-
Weight:
-
800KG
-
Certification:
-
CE/ISO
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
mingyang
-
Voltage:
-
220v, 380v, 410v 3phase
-
Power:
-
18.5KW
-
Dimension(L*W*H):
-
1.63*1.41*1.45M
-
Motor:
-
FJ600
-
Raw material:
-
tree branches, stalk, etc
-
feature:
-
low noise, removable
-
technical service:
-
24 hours service
-
moisture required:
-
10-30%
-
input dia:
-
less than 50mm
-
output dia:
-
3-5mm
-
After-sales Service Provided:
-
Engineers available to servic machinery overseas, Field maintenance and repair service
-
Usage:
-
Chip.shaving.sawdust
-
Weight:
-
800KG
-
Certification:
-
CE/ISO
Product Introduction
This machine can produce wood logs,tree branch, peanut shell,rice husk, charcoal into powder.
The final crushed material is suitable for making biomass pellet,charcoal, or sawdust briquette, etc.

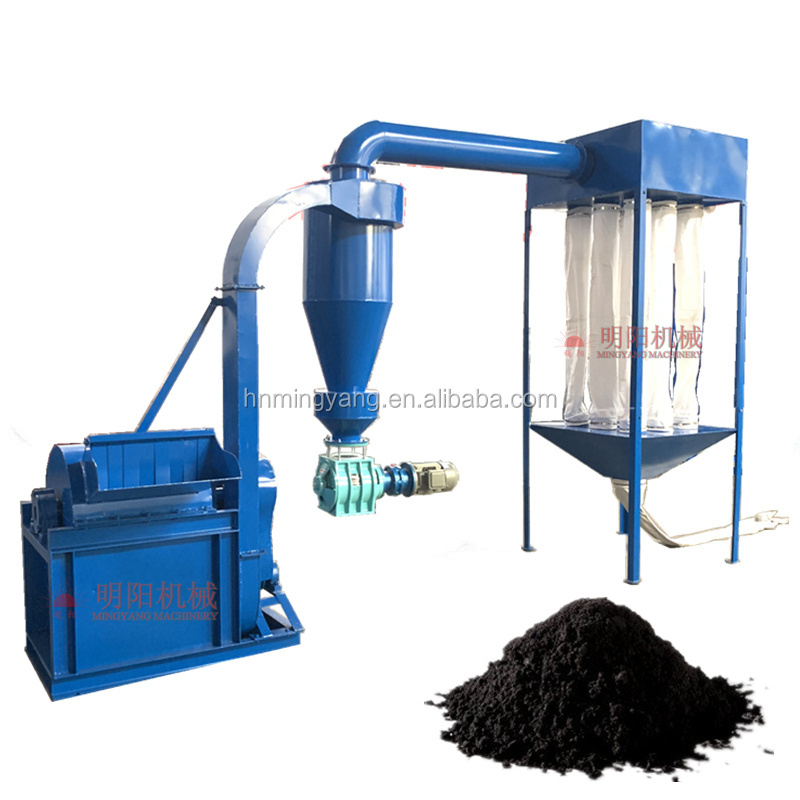

The machine consist of crushing Cavity, feeding hopper, output belt, output port,air-lock, dust remover,cyclone,and electric motor. Our machine also supply customize service, if you need,please feel free let us know.
Our Advantages
1.Low electricity
consumption
---The machine use
22kw
electric motor.
2.Supply customize service.
Like increase height, add blades, customize sieve size,etc.
3.
We will
Test the machine
before Shipping and Packing for you
4.
We provide
perfect after-sales service
,operation manual and maintance.
5.
We are
Source Machinery plant
with
more than 31 years experience.
Param
e
ters
|
Model
|
Power
|
Capacity
|
Weight
|
Feed Port size
|
|
FJ600
|
22kw
|
600-800kg/h
|
700kg
|
600*240mm
|
|
FJ700
|
30kw
|
800-1000kg/h
|
800kg
|
700*260mm
|
|
FJ800
|
45+7.5+2.2KW
|
1200-1800kg/h
|
1200kg
|
800*300mm
|
|
FJ1000(charcoal)
|
55+11+11+2.2+2.2kw
|
2000-3000kg/h
|
2700kg
|
1000*350mm
|
|
FJ1000(wood)
|
75+15+15+2.2+2.2kw
|
2000-3000kh/h
|
2700kg
|
1000*350mm
|
|
FJ1300(charcoal)
|
90+15+15+2.2+2.2kw
|
3000-4000kg/h
|
5000kg
|
1300*350mm
|
|
FJ1300(wood)
|
110+18.5+18.5+2.2+2.2kw
|
3000-4000kg/h
|
5500kg
|
1300*350mm
|
Raw Material
T
he raw material can be charcoal coal powder, waste mineral powder
, wood chips, wood logs, tree branch, wheat straw, peanut shell, rice husk, bassgasse, coffee husk, paddy straw,
sunflower stalk, seed husk, cotton stalk, tobacco waste, mustard stalk, jute waste, bamboo, etc.
sunflower stalk, seed husk, cotton stalk, tobacco waste, mustard stalk, jute waste, bamboo, etc.
We need add about 5% binder, 25% water and 70% raw material. After mix, we can feed the raw material
Final Product
The final product can be different size. We can according to your demand produce machine.
Packing and Shipping
Before shipping, we will test the machine for you with our material.After you confirm, we will arrange packing and shipping
After you receive the machine, we will teach you how to install and operate the machine.
