Feininger XPS insulation board is denser than EPS and provides more R-Value with a rating of 5 per inch of thickness.
Our foam board insulation is available with straight or tongue-and-groove edges to help limit air movement.
Furthermore, our sheet is available in all different size configurations to accommodate lots of different applications.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China, Nanjing, Jiangsu, China
-
Brand Name:
-
Feininger
-
Model Number:
-
Feininger
-
Product name:
-
XPS Thermal Insulation Board
-
Type:
-
Extruded Polystyrene Insulated Panel
-
Heat Conductivity:
-
0.02-0.030 W/m.K
-
Compression:
-
150-1000KPA
-
Brand:
-
Feininger
-
Color:
-
Yellow / Blue
-
Thickness:
-
2-8 cm
-
Density:
-
30kg/m3-50kg/m3
Quick Details
-
Project Solution Capability:
-
total solution for projects, Others
-
Application:
-
Coldroom, Refrigerator Car
-
Design Style:
-
Modern
-
Place of Origin:
-
Jiangsu, China, Nanjing, Jiangsu, China
-
Brand Name:
-
Feininger
-
Model Number:
-
Feininger
-
Product name:
-
XPS Thermal Insulation Board
-
Type:
-
Extruded Polystyrene Insulated Panel
-
Heat Conductivity:
-
0.02-0.030 W/m.K
-
Compression:
-
150-1000KPA
-
Brand:
-
Feininger
-
Color:
-
Yellow / Blue
-
Thickness:
-
2-8 cm
-
Density:
-
30kg/m3-50kg/m3
Products Description

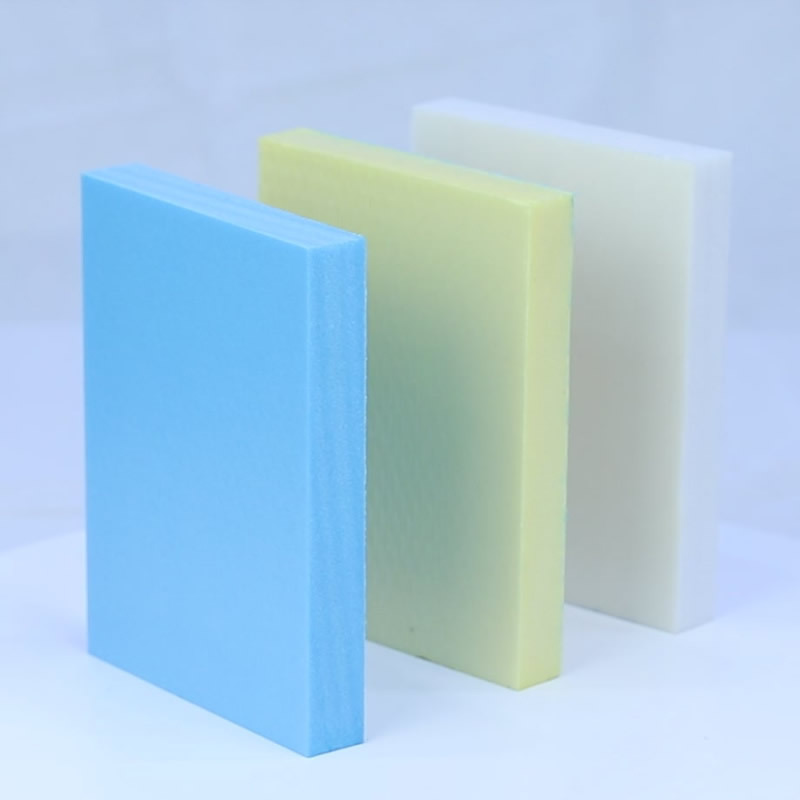

Feininger XPS insulation board
Specification
|
Brand
|
Feininger
|
|
Place of Origin
|
Nanjing, Jiangsu, China
|
|
Color
|
Blue, Yellow
|
|
Length
|
1.2m, 1.8m, 2.4m, 2.5m or Customization
|
|
Width
|
600mm, 900mm, 1200mm or Customization
|
|
Thickness
|
25mm/ 50mm/ 75mm/ 100mm or Customization
|
|
Compressive Strength |
150Kpa, 250Kpa, 350Kpa, 550Kpa, 650Kpa, 700Kpa, 750Kpa,1000Kpa
(150Kpa-1000Kpa Optional) |
|
Density
|
30-50Kg/M³
|
|
Water Absolution
|
≤ 1.5%
|
|
Temperature Limits
|
-50℃， +75℃
|
Our Products
Our Advantages
Good thermal insulation performance
Good thermal insulation performance, low thermal conductivity, is a highly efficient and energy-saving thermal insulation material.
Versatile
The closed cell structure and density of Feininger XPS Board allows specific edge details and surface finishes to be cut into the boards to make them as fit for the job as possible. Moreover, Feininger XPS Boards can be cut into almost any shape using hot wires,
saws to make it a highly versatile insulating and strengthening infill for any construction. Whether using it in building or as a specialist fabrication infill.
Water Resistant
Many insulants will get wet in use or during installation. Feininger XPS Board is almost 100% closed cell and as such is unaffected by moisture. Whether laying Feininger XPS Board in a floor (where there is often some standing water) or in a protected membrane roof
system (where the insulation is exposed to water) the user can be confident Feininger XPS Board will perform as stated.
