- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
XK-TiB2
-
Shape:
-
Plate,Circle,Pellets
-
Material:
-
titanium diboride
-
Chemical Composition:
-
TiB2
-
Product name:
-
titanium diboride Ceramic targets
-
Purity:
-
99-99.9%
-
Size:
-
D50.8x3mm or As request
-
MOQ:
-
1PC
-
Appearance:
-
Polished Surface
-
Color:
-
Gray
-
Usage:
-
PVD Film Coating
-
Delivery time:
-
7-21Days
-
Keywords:
-
TiB2 ceramic material
-
Package:
-
Vacuum Blister
Quick Details
-
Application:
-
Metallurgy, PVD Coating,Experiments
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
XinKang
-
Model Number:
-
XK-TiB2
-
Shape:
-
Plate,Circle,Pellets
-
Material:
-
titanium diboride
-
Chemical Composition:
-
TiB2
-
Product name:
-
titanium diboride Ceramic targets
-
Purity:
-
99-99.9%
-
Size:
-
D50.8x3mm or As request
-
MOQ:
-
1PC
-
Appearance:
-
Polished Surface
-
Color:
-
Gray
-
Usage:
-
PVD Film Coating
-
Delivery time:
-
7-21Days
-
Keywords:
-
TiB2 ceramic material
-
Package:
-
Vacuum Blister

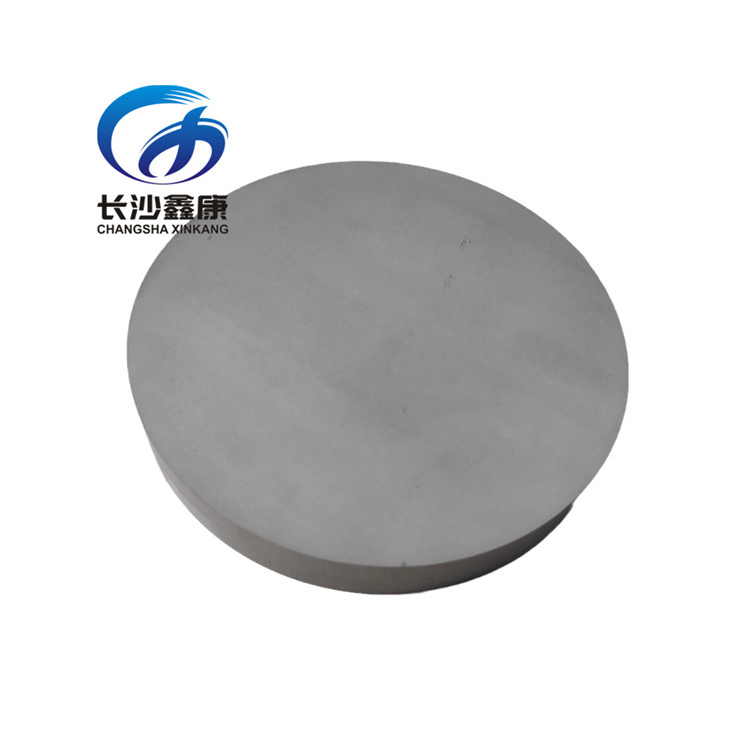

XinKang 2N5 TiB2 ceramic target titanium diboride ceramic alloy magnetron sputtering target
XinKang 2N5 TiB2 ceramic target titanium diboride ceramic alloy magnetron sputtering target for Film Coating
| Name | Titanium diboride Ceramic targets |
| Purity | 99%-99.9% |
| Size | D50.8x3mm, D6x6mm,2inch,3inch, As request |
| Color | Gray |
| Ti Density | 4.54g/cm³ |
| Ti Melting Point | 1668℃ |
| Shape | Planar target, Rotary target.Pellets, Piece, Bound with copper back panel. |
| MOQ | 1PCS |
| Application | Experiments materials,Evaporation materials, PVD Film Coating and etc |
Feature:
Titanium diboride powder is gray or gray-black and has a hexagonal (AlB2) crystal structure. Its melting point is 2980°C and it has high hardness. Titanium diboride has an anti-oxidation temperature of up to 1000°C in air and is stable in HCl and HF acids. Titanium diboride is mainly used to prepare composite ceramic products. Because it resists corrosion of molten metal, it can be used in the manufacture of molten metal crucibles and electrolytic cell electrodes.
Application:
The use of titanium diboride
1 Conductive ceramic material. It is one of the main raw materials for vacuum coating conductive evaporation boats.
2 Ceramic cutting tools and molds. It can manufacture finishing tools, wire drawing dies, extrusion dies, sandblasting nozzles, sealing components, etc.
3 Composite ceramic materials. It can be used as an important component of multi-component composite materials to form composite materials with TiC, TiN, SiC and other materials to produce various high-temperature resistant parts and functional parts, such as high-temperature crucibles, engine parts, etc. It is also one of the best materials for making armor protection materials.
4 Aluminum electrolytic cell cathode coating materials. Due to the good wettability of TiB2 with the metal aluminum liquid, using TiB2 as the cathode coating material of the aluminum electrolytic cell can reduce the power consumption of the aluminum electrolytic cell and extend the life of the electrolytic cell.
5. Made into PTC heating ceramic materials and flexible PTC materials, it has the characteristics of safety, power saving, reliability, easy processing and molding, etc. It is an updated high-tech product for various types of electric heating materials.
6 is a good strengthening agent for metal materials such as Al, Fe, and Cu.
Application: Sputtering Targets
Other Related Sputtering Targets
| Metal Target | Ni,Al,Cu,V,Co,W,Mo,Ta,Nb,Cr,Ti,Zr,Hf,Mg,Fe,Zn,Pb,Sn,Bi,Ga,Ge,In,Si,C,B,Te and rare earth targets |
| Alloy Target | Ni,Fe,Co,Cu,Al alloy. and special alloy |
| Evaporation Materials | Ni,Al,Cu,V,Co,W,Mo,Ta,Nb,Cr,Ti,Zr,Hf,Mg,Fe,Zn,Pb,Sn,Bi,Ga,Ge,In,Si,C,B,Te and etc |
| Ceramic Targets | Oxide Ceramic, Compound ceramic targets. |
