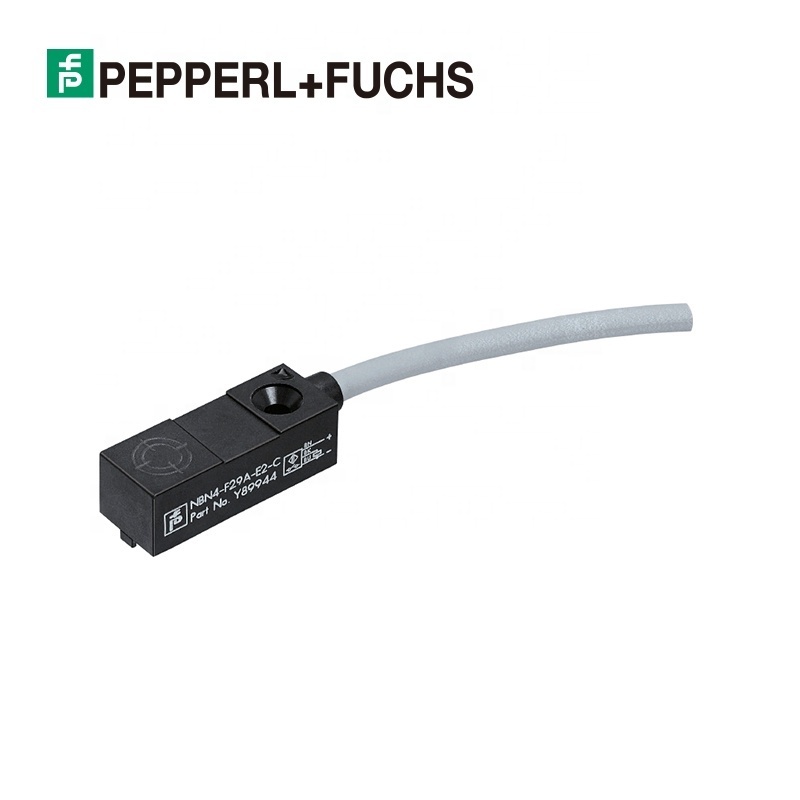

P+F PEPPERL+FUCHS 089865 NBN4-F29-E2-5M Inductive sensor,Inductive proximity switch,Inductance approach switch
Product Description
+ Product Display
| General specifications | |
| Switching function | Normally open (NO) |
| Output type | PNP |
| Rated operating distance | 4 mm |
| Installation | non-flush |
| Output polarity | DC |
| Assured operating distance | 0 ... 3.24 mm |
| Reduction factor rAl | 0.4 |
| Reduction factor rCu | 0.3 |
| Reduction factor r304 | 0.7 |
| Output type | 3-wire |
| Nominal ratings | |
| Operating voltage | 4.75 ... 30 V DC |
| Switching frequency | 0 ... 1000 Hz |
| Hysteresis | typ. 5 % |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | yes |
| Voltage drop | ≤ 3 V |
| Operating current | 0 ... 100 mA |
| Off-state current | 0 ... 0.5 mA typ. 0.1 µA at 25 °C |
| No-load supply current | ≤ 10 mA |
| Time delay before availability | ≤ 5 ms |
| Switching state indicator | LED, yellow |
| Functional safety related parameters | |
| MTTFd | 1680 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0% |
| Compliance with standards and directives | |
| Standard conformity | |
| Standards | EN 60947-5-2:2007 |
| EN 60947-5-2/A1:2012 | |
| IEC 60947-5-2:2007 | |
| IEC 60947-5-2 AMD 1:2012 | |
| Approvals and certificates | |
| UL approval | cULus Listed, General Purpose |
| CSA approval | cCSAus Listed, General Purpose |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
| Ambient conditions | |
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Mechanical specifications | |
| Connection type | cable PVC , 5 m |
| Core cross-section | 0.14 mm2 |
| Housing material | PPS |
| Sensing face | PPS |
| Degree of protection | IP67 |
| Cable | |
| Cable diameter | 3.5 mm ± 0.2 mm |
| Bending radius | > 10 x cable diameter |
Supply various brands of encoders, sensors
Note:This is a part of stock products. Please contact us for more model and detailed product parameters.
