Poultry use NH3 monitor high sensitivity ammonia gas detector

Poultry use NH3 monitor high sensitivity ammonia gas detector

FOB Reference Price: Get Latest Price

≥1 Pieces

US $200

≥100 Pieces

US $185

≥200 Pieces

US $175

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Huafan

Model Number:: HFF-NH3

Product name:: Wall mounted ammonia detector

Sensor type:: Eletrochemistry Sensor

Detecting Gas:: ammonia nh3

Measure Range:: 0-200ppm,Other ranges

Resolution:: 1ppm

Display:: LCD Display in English

Alarm Type:: Sound+Light Alarm

Working pattern:: Continuous work

Working Voltage:: AC110~220V, 50/60Hz

Power consumption:: <10W

Quick Details

Type:: Wall mounted

Warranty:: One year

Place of Origin:: Shaanxi, China

Brand Name:: Huafan

Model Number:: HFF-NH3

Product name:: Wall mounted ammonia detector

Sensor type:: Eletrochemistry Sensor

Detecting Gas:: ammonia nh3

Measure Range:: 0-200ppm,Other ranges

Resolution:: 1ppm

Display:: LCD Display in English

Alarm Type:: Sound+Light Alarm

Working pattern:: Continuous work

Working Voltage:: AC110~220V, 50/60Hz

Power consumption:: <10W

Products Description

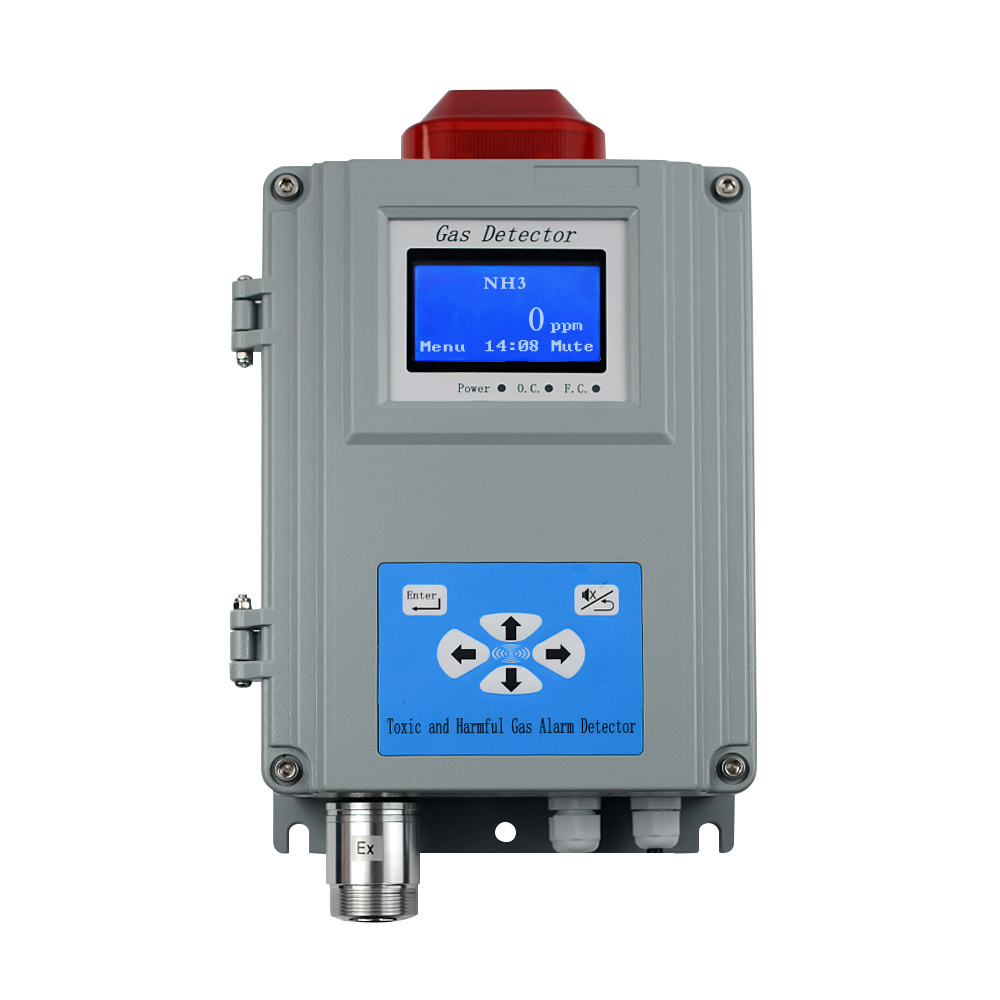

Fixed ammonia NH3 gas leak detector

Wall mounted NH3 gas detector integrates detection,display and alarm function,real-time display the concentration of ammonia gas in the environment, when the gas leaks and reaches the alarm point, the detector will respond quickly and send out alarms to effectively prevent accidents.

Feature of NH3 detector:

● Wall mounted(fixed)

● LCD large screen display

● UK imported sensors

● High accuracy and sensitivity

● Sound and light alarms

● High & low alarm points

● AC110-220V power supply
● C ontinuous monitor

● R elay output control

● 4-20mA or RS485 output signal

● Industrial explosion-proof
● One year warranty

Product Paramenters

Product Name:	Fixed ammonia NH3 gas leak detector
Size and Weight:	20333594mm, about 3.8KG
Working voltage:	AC110-220V
Display:	LCD display, English version
Alarm:	Intelligent sound and Red light
Detect gas:	ammonia NH3
Sensor type:	Electrochemistry
Measure range	0-200ppm or 0-100ppm resolution is 1ppm
Output control:	relay output (AC220V5A), signal control (switch)
Working pattern:	Continuous operation, high and low alarm points (can be set)
Storage:	3000 alarm records
Optional function:	4-20mA/RS485 output signal
Working Environment:	-20℃ - 50℃ ,15% ~ 90% RH (No condensation)
Package:	Carton package. English user manual
Installation method:	wall-mounted installation

Details Images

Product Features

1. LCD display with real-time; 2. Detect ammonia with natural diffusion; 3. AC110-220V supply, continuous monitor; 4. Imported sensitive sensor from UK; 5. Intelligent sound and light alarm design; 6. Display,detection and alarm are self-contained; 7. Can be output relay control signals; 8. Simple menu operation,high reliability; 9. Easy calibration,zero and alarm settings,easy to install； 10. Relay output,supports connect with fan etc external device; 11.Optional Function: with 4-20mA/RS485 output signal to connected with controller DCS.

Related gas detector

Tips: Not only for NH3 gas, CO2 O3 LPG SO2 NOx H2 HCL CO PH3 CL2 O2 etc gases also can be detected,support customization,please contact us for more details.

Why Choose Us

1. More than 20 years professional gas alarm detection factory
2. Rich experience of exporting to many countries
3. Advanced technology and develop team
4. Strictly supervision and inspection system
5. Competitive price and satisfied service
6. Fast and safe delivery
7. OEM and ODM are welcomed
8. One year warranty and free maintenance within warranty period

9. "Very satisfied" and "working well" etc appraise from our customers all over the world.

Customer Feedback

Application

This wall mounted ammonia gas detector is suitable for detecting the concentration of NH3 in ambient air, widely used in poultry,cold room,laboratory, chemical industry, power plant, tunnels, underground pipelines and other places, to effectively prevent the occurrence of poisoning.
