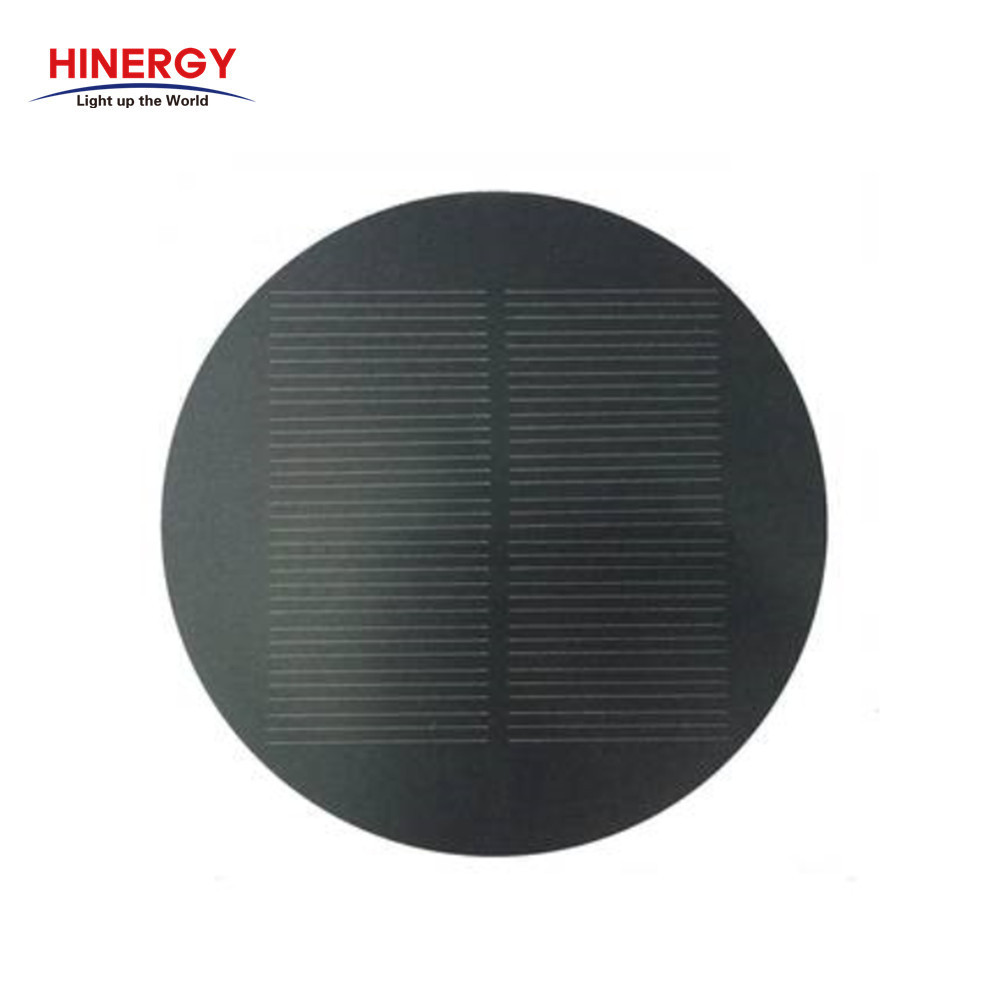

Hinergy Paneles Solares Circulares 5V 5.5V 6V 9V 12V 18V Circular Mini Solar Panel Price

Hinergy Paneles Solares Circulares 5V 5.5V 6V 9V 12V 18V Circular Mini Solar Panel Price

FOB Reference Price: Get Latest Price

≥20 Pieces

US $1.29

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Warranty:: 3 Years

Brand Name:: Hinergy

Model Number:: HN60-150MM

Place of Origin:: Guangdong, China

Panel Dimensions:: Customized Dimensions

Product Name:: Circular Mini Solar Panel

Front Cover:: Epoxy Resin/ PET

Solar Cell:: Polycrystalline Sillicon

Backsheet:: PCB Board

Frame:: Frameless

Shape:: Any Shape

Cable & Connector:: Customization

Thickness:: 2-3MM

Working Voltage:: 5-12V

Certificate:: CE, RoHS

Quick Details

Cell size:: 158.75mmx158.75mm

Type:: PERC, Half Cell, All Black

Panel Efficiency:: 12-15%

Warranty:: 3 Years

Brand Name:: Hinergy

Model Number:: HN60-150MM

Place of Origin:: Guangdong, China

Panel Dimensions:: Customized Dimensions

Product Name:: Circular Mini Solar Panel

Front Cover:: Epoxy Resin/ PET

Solar Cell:: Polycrystalline Sillicon

Backsheet:: PCB Board

Frame:: Frameless

Shape:: Any Shape

Cable & Connector:: Customization

Thickness:: 2-3MM

Working Voltage:: 5-12V

Certificate:: CE, RoHS

Advantages:

* High conversion efficiency, good low hight performance.

* UV treated surface and durable weatherproof PCB board.

* Light weight, thin thickness, shape appropriate to change.

* Encapsulated solar panel ensure long lasting durability and high temperature resistant.

* Tie multiple together in parallel to increase current, in series to increase voltage.

* Ideal for battery charger, small motorized car, LEDs in a Doll House, science projects...

Model	Power (W)	Size (MM)	Vmp (V)	Imp (mA)	Weight (G)
HN-Ȼ60-5	0.28	Ȼ60	5.0	56	7
HN-Ȼ80-6	0.50	Ȼ80	6.0	83	18
HN-Ȼ90-6	0.60	Ȼ90	6.0	100	24
HN-Ȼ91-5.5	0.85	Ȼ91	5.5	155	19
HN-Ȼ100-6	0.80	Ȼ100	6.0	135	30
HN-Ȼ110-9	1.00	Ȼ110	9.0	110	40
HN-Ȼ120-12	1.20	Ȼ120	12.0	100	50
HN-Ȼ150-6	2.00	Ȼ150	6.0	335	70

Notes:Irradiance 1000W/m2, Module Temperature 25℃, Air Mass1.5

Production & QC Line

PCB Substrate

* FR-4 PCB circuit diagram.

* High strength resistance to deformation.

* Resistance to flame retardant.

* Good electrical properties.

Solar Cell

* Grade A solar cell.

* Excellent low light effect.

* Appearance consistency.

* Mono and polycrystalline is optional.

Full Automatic Welding Line

* High speed production.

* Ensure consistent product performance.

* R educe wastage and production cost.

* Automatic detection function.

Encapsulation

* Epoxy resin and PET lamination optional.

* Epoxy panel resistance to acid and alkali.

* PET with high conversion rate & long-life.

* Mono and polycrystalline is optional.

Cable & Connector

* Wire Gauge:20/22AWG/24AWG/26AWG

* Connector:JST PH 2.0 2Pin Male Female.

* Cable Length:100-150mm or customized.

* Compatible with the most of application.

Packing & Delivery

Application

FAQ

Q:What's the thickness of Solar Panel?
A:The thickness of epoxy resin solar panel is 2.8mm±0.3mm, PET laminated solar panel is 2.2mm-2.6mm.

Q:Can you drill holes on the solar panel?
A: Sure, we can drill holes according to your requirements without extra cost.

Q:Can you put the cables and connectors on the back of mini solar panel?

A: Yes, we can weld the cables and connectors according to your specification.

Q:What shape of mini solar panels can you make?
A: We can make different shape of solar panel. e.g. Round, Square,Triangle,Trapezoid shape etc.

Q:What's the material structure of Epoxy Resin Solar Panel & PET Laminated Solar Panel?
A: The epoxy resin solar panel is made of 3 layers structure: Epoxy Resin + Solar Cell + PCB Board.
PET laminated solar panel is made of 5 layers structure: PET + EVA + Solar Cell + EVA + PCB Board.

Q:Which one is the long service life between Epoxy Resin Solar Panel and PET Laminated Solar Panel?
A: The lifetime of PET laminated solar panel is longer than Epoxy resin solar panels.The lifetime of PET laminated solar panel is around 5-6 years, epoxy resin solar panel is 2-3 years.

Q:What's the output power range between Epoxy Resin Solar Panel and PET Laminated Solar Panel?

A: Epoxy resin solar panel is only suitable output power below 2W. If output power exceed 2 Watt, epoxy resin solar panel will be very easy distortion under long-time outdoor condition, and the lifetime will be shorted. PET solar panel can work orderly above 2 Watt.

Q:What's the small solar power system configuration relationship between batteries and mini solar panels?

DC Storage Battery Voltage	Mini Solar Panel Voltage
1.2 V	2.0 V-2.5 V
2.4 V	3.5 V-4.0 V
3.6 V	5.0 V-6.0 V
3.7 V	5.5 V-6.0 V
4.0 V	6.0 V-7.0 V
4.8 V	7.0 V-8.0 V
6.0 V	8.0 V-9.0 V
12.0 V	16.0 V-18.0 V

Notes: When the voltage of your solar panel don't satisfy your storage battery, you can take two or more same solar panels together in series. Such as, two 5.5v solar panel take together in series, so its voltage is 11V. when the voltage of solar panel satisfy your storage battery. In order to Speed up the rate of charge, you can take two or more same solar panel together parallel connection.
