Quick Details
-
Model Number:
-
GS 1000va
-
Weight:
-
8.7kg
-
Product name:
-
offline ups 100va
-
transfer time:
-
10ms
-
Wave Form:
-
Modified Sine Wave
-
Capacity:
-
60% of rated power
-
Display:
-
LED/LCD optional
-
Input voltage:
-
110v/220v
-
chargecurrent:
-
1A
-
charge period:
-
8 hours to be full
-
warrenty:
-
12 months
-
Color:
-
Black
Quick Details
-
Warranty:
-
1year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SKE
-
Model Number:
-
GS 1000va
-
Weight:
-
8.7kg
-
Product name:
-
offline ups 100va
-
transfer time:
-
10ms
-
Wave Form:
-
Modified Sine Wave
-
Capacity:
-
60% of rated power
-
Display:
-
LED/LCD optional
-
Input voltage:
-
110v/220v
-
chargecurrent:
-
1A
-
charge period:
-
8 hours to be full
-
warrenty:
-
12 months
-
Color:
-
Black

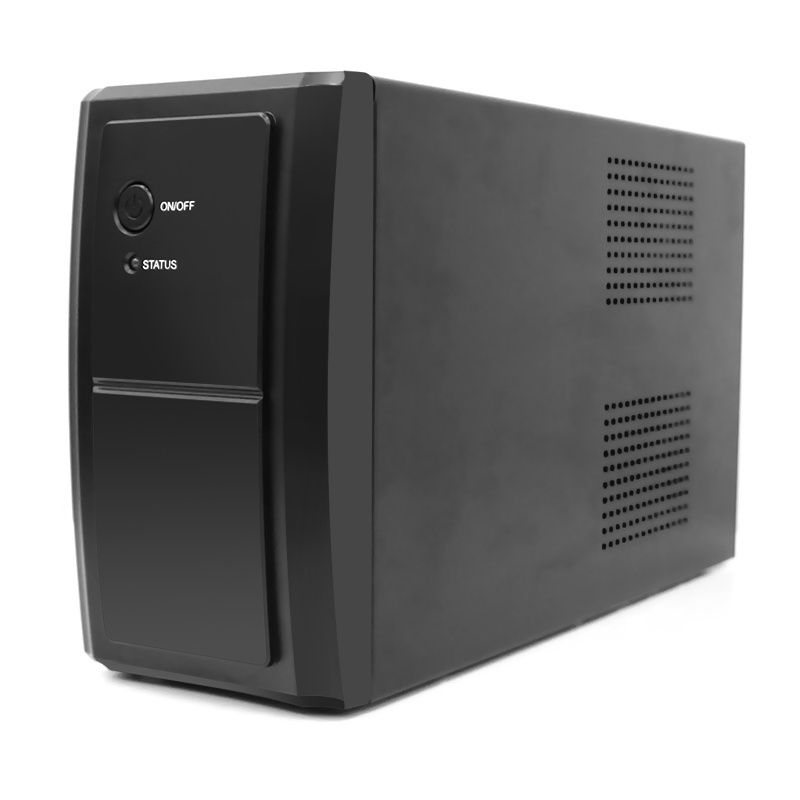

SKE Back UPS uninterrupted Power Supply 1000VA UPS 600 watt
| MODEL | GS400 | GS600 | GS800va | GS1000 | GS1200 | GS1500 | GS2000 | GS3000 |
| CAPACITY | 240w | 360W | 480W | 600W | 720W | 900W | 1200W | 1800W |
| INPUT | ||||||||
| Voltage | 230Vac/230Vac | |||||||
| Voltage Range | 140 - 300 Vac | |||||||
| Frequency Range | >40 Hz (auto sensing) | |||||||
| OUTPUT | ||||||||
|
AC Voltage Regulation
(Batt. Mode) |
220Vac/230Vac±10% | |||||||
| Frequency Range (Batt. Mode) | 50Hz±1Hz or 60Hz±1Hz | |||||||
| Transfer Time | Typical 2-8ms, 13ms max | |||||||
| Waveform (Batt. Mode) | Simulated sine wave | |||||||
| BATTERY | ||||||||
| Battery Voltage | 12V | 24V | ||||||
| Battery number | 4.5AH*1 | 7AH*1 | 9AH*1 | 7AH*2 | 9AH*2 | 9AH*4 | ||
| Maximum Charge Current | 1.0A | 2.0A | ||||||
| INDICATORS | ||||||||
| AC Mode | Green lighting | |||||||
| Battery Mode | Orange flash | |||||||
| Fault | Red lighting | |||||||
| PROTECTION | ||||||||
| Full Protection | short circuit, Overload , Overcharge and overdischarge protection | |||||||
| ALARM | ||||||||
| Battery mode | Sounding every 10 seconds | |||||||
| Low Battery | Sounding every second | |||||||
| Overload | Sounding every 0.5 seconds | |||||||
| Fault | Continuously sounding | |||||||
| PHYSICAL | ||||||||
|
Approx. Dimension
D x W x H (mm) |
255*86*140 | 306*86*140 | 345*123*189 | 345*123*189 | 400*148*235 | |||
| Net. Weight(kg) | 4.0 | 4.7 | 5.5 | 8.7 | 9.6 | 11.2 | 11.9 | 19 |
| OPERATING ENVIRONMENT | ||||||||
| Humidity | 0-90 % RH @ 0- 40°C (non-condensing) | |||||||
| Noise Level | Less than 40dB | |||||||
| MANAGEMENT | ||||||||
| Communication port | For choice | |||||||
1. OEM&ODM services acceptable.
2. Lots of cooperated agent for shipping by sea or by air.
3. 1year warrenty , if it is quality problem , we will provide the parts for free .
Little hint:
1.In the warranty period the machine has a problem, please contact the sales staff, we will be responsible for customer service.
2.Exceed the warranty period, improper operation and man-made damage, we will still give help and support,We will provide spare parts at a cost price.
3.According to the customer's needs, we can provide unconventional, but the cost may be slightly higher than the traditional machine.
1,The product manuals, technical documents, CE, ROHS and other certificates (if necessary) will be issued with the goods.
2,invoices, bills of lading, certificate of origin, fumigation certificate (if needed) will confirm with you, through DHL or other means to send.
Q1: Why you should choose us?
---16 years UPS experiences
---Professional team for both oversea and domestic market
--UPS provider of SCO meeting 2015 and Shanghai-Kunming high-speed railway project
---Qualified product plus competitable prices
---Delivery in time
---Sincerely services
Q2: How is your after-sale service?
---We provide 12-24 months warranty since the delivery date and free maintenance /
replacement during warranty period.
Q3: What kind of certification you have?
---ISO9000, CE,ROHS,and so on
Our products could pass different labor testing according to different countries’ requirements.
Q4: Delivery time:
---Standard products could be delivered within 15 days; customized products could be
developed within 10 -30 days.
