Quick Details
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
Senci
-
Dimension(L*W*H):
-
430*385*410mm
-
Weight:
-
27kg/30kg
-
Rated power/speed:
-
3600rpm
-

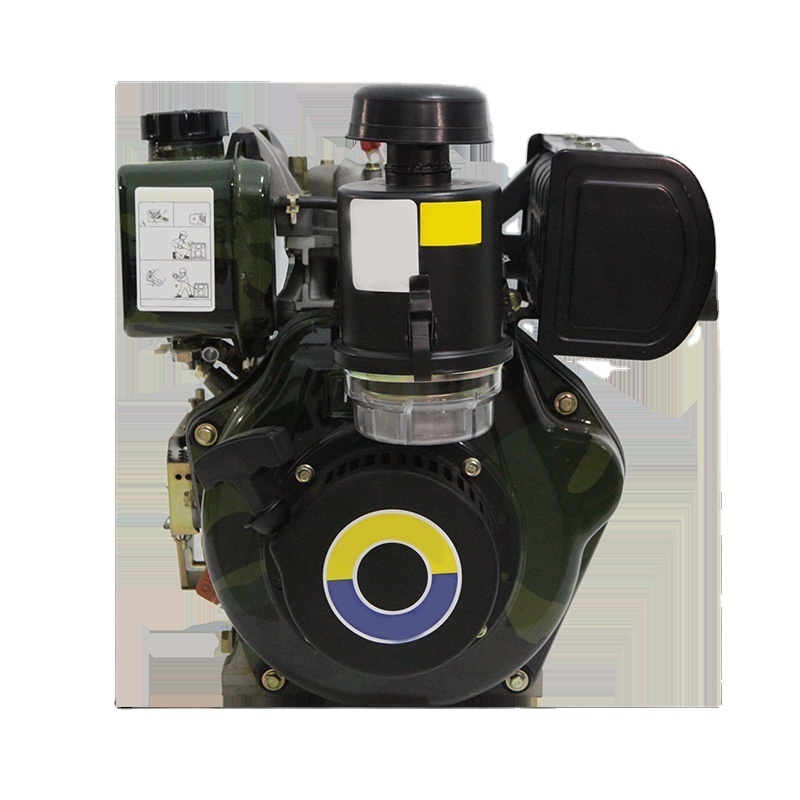

Product name:
-
Senci diesel engine
-
Engine Model:
-
CP173F3
-
Engine type:
-
Air-cooled 4-stroke
-
Rated Power:
-
4.25kw/5.78hp
-
Application:
-
Engineering Machinery
Quick Details
-
Displacement:
-
251cc, 251cc
-
Emission Standard:
-
EURO 5
-
Power:
-
6HP, 4.5 KW
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
Senci
-
Dimension(L*W*H):
-
430*385*410mm
-
Weight:
-
27kg/30kg
-
Rated power/speed:
-
3600rpm
-
Product name:
-
Senci diesel engine
-
Engine Model:
-
CP173F3
-
Engine type:
-
Air-cooled 4-stroke
-
Rated Power:
-
4.25kw/5.78hp
-
Application:
-
Engineering Machinery
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
|
Model
|
CP173F/FS
|
CP178F/FS
|
|
|
Type
|
Single-cylinder, vertical,4-stroke,air-cooled diesel engine
|
|
|
|
Combustion system
|
Direct injection
|
|
|
|
Bore×stroke(mm)
|
73*60
|
78*62
|
|
|
Displacement(cc)
|
251
|
296
|
|
|
Speed(rpm)
|
3600
|
3600/1800
|
|
|
Max. output(kw/hp)
|
(4.25)5.78
|
(4.4)6.0
|
|
|
Cont. output(kw/hp)
|
(3.67)5.0
|
(4)5.4
|
|
|
Starting system
|
Recoil / Electric
|
|
|
|
Power output method
|
Crankshaft / Camshaft (The speed of camshaft is 1/2 of the Crankshaft’s)
|
|
|
|
Rotary direction of output axis
|
Left (View in the direction of output axis)
|
|
|
|
Fuel/lubrication(L)
|
0# in summer,-10# or -20# in winter light diesel fuel/SAE 10W30
|
|
|
|
Fuel capacity(L)
|
2.5
|
3.5
|
|
|
Lubrication capacity(L)
|
0.75
|
1.1
|
|
|
Recommended starting system
|
12V-18AH
|
12V-24AH
|
|
|
Net/Gross weight(kg)
|
27/30
|
33/35
|
|
|
Overall dimensions (L×W×H)
|
430×385×410
|
480×430×520
|
|
Here is brief introduction of Senci Group as below:
* Public company with 30 years' experience in general machine industry.
* 4 manufacturing bases, 8 subsidiaries and 5 overseas companies.
*Our products have been exported to nearly 100 countries and regions around the world.
* Main products: gasoline engine, motor and electronic control, generator sets, welding machine, high pressure washer, water pump, air compressor, garden machinery and other terminal series.
* Public company with 30 years' experience in general machine industry.
* 4 manufacturing bases, 8 subsidiaries and 5 overseas companies.
*Our products have been exported to nearly 100 countries and regions around the world.
* Main products: gasoline engine, motor and electronic control, generator sets, welding machine, high pressure washer, water pump, air compressor, garden machinery and other terminal series.
