Quick Details
-
Material:
-
Metal
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JDR
-
Model Number:
-
FYED
-
Input voltage:
-
11o-220VAC
-
Output voltage:
-
24VDC
-
Stroke:
-
500mm
-
Max load:
-
2000N
-
No load speed:
-
25mm/s
-
Color:
-
black or white
-
Brand:
-
JDR
-
Warranty:
-
2 years
-
Accessory:
-
Control box and handset
-
Specific Use:
-
Office Desks
Quick Details
-
Feature:
-
Adjustable (height), Foldable, Extendable
-
Application:
-
Kitchen, Bathroom, Home Office, Living Room, Bedroom, Dining, Babies and kids, Hotel, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, Farmhouse, Courtyard, Storage & Closet, Exterior, Wine Cellar, Entry, Hall, Home Bar, Staircase, Basement, Garage & Shed, Gym, Laundry
-
Design Style:
-
Modern
-
Material:
-
Metal
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JDR
-
Model Number:
-
FYED
-
Input voltage:
-
11o-220VAC
-
Output voltage:
-
24VDC
-
Stroke:
-
500mm
-
Max load:
-
2000N
-
No load speed:
-
25mm/s
-
Color:
-
black or white
-
Brand:
-
JDR
-
Warranty:
-
2 years
-
Accessory:
-
Control box and handset
-
Specific Use:
-
Office Desks

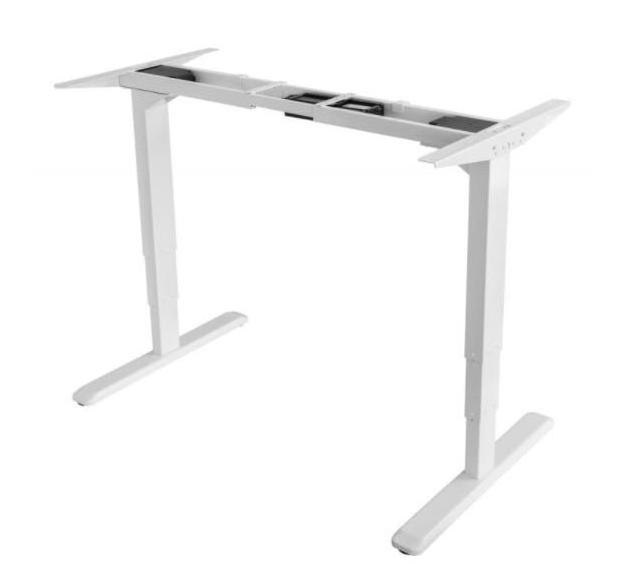

Nowadays, you need to work smarter in every way. And one way of doing that is to work with equipment that not only benefits your productivity but also your health. And that is where our Frame can facilitate your working efficiency without any compromises. You can set up between 660 - 1250 high via the digital control panel. Other great features include high-quality powder-coated components, anti-collision, Speed control, Self-protection with voltage control etc
Key Benefits:
· Intelligent Control - Automatic adjust with the double-click & Real-time height display
· Anti-collision - Smart control, Anti-pinch and Anti-collision. Avoid scratching table or damaging other objects.
· Slow start, slow stop - Ensures a smooth operation.
· Speed control - Load speed is the same as non-load.
· Synchronous Control - Synchro-lift System, No Inclined.
· Self-protection - Motor will be stopped when it's over current, overheating or open circuit, to protect the system as well as user's safety.
· Low noise level - Low noise running, do not affect the people around.
· Long life - Over 30000 times tests (with 100KG loaded), reliable performance.
· Steel frame - With high strength and high-quality steel. The desk can be operated normally with 100KG loaded, safe and reliable. The desk can be operated normally with 100KG loaded, safe and reliable.
· Tube - Rectangular (size 70*40mm,75*45mm, 80*50mm) & Square (size 65*65mm, 70*70mm, 75*75mm)
· Standard column design - Wide bottom and narrow top
· Three-segment column - 3 sections lifting column, height adjustable range (66cm-125cm), Damping Nylon material make smooth operation, to avoid direct friction, and reduce the noise level.
· Adjustable crossbeam - The width of three-section adjustable crossbeam can be adjusted to install different sizes of desk top, provide reliable rigidity & stability
· Modular design - Adjustable beam and removable table foot are connected by screws, easy assembly and & disassembly. Small packing volume for easy transportation.
Introducing Our Best Selling Electric Adjustable Desk
Our Professional home office furniture designers created standing desk by listening to you! Combine advanced functions with a reasonable price, this standing desk is not only a budget-friendly but it is also proven for its quality standard and the amount of its effectiveness. Now you can sit and work and/or stand and work with a price under $300 while not worrying about spine health issues.
Stable Desk Frame with Advanced Functions
Designed according to the demands of the North American ergonomic standards, standing desk is one of the bestselling desks under $300. Made with high-grade steel, the desk frame eliminates any wobbling even at the highest adjustment point, and its powerful motor, coupled with two-stage legs, ensures smooth and fluid-like transitions all day long. With three programmable presets, you can easily save your favorite seated, standing, and under-desk cycling heights.
CHIPBOARD
Our 1" thick chipboard tops are available in a variety of solid colors and wood grains. Chipboard is a great choice if you want durability, symmetrical patterns, and consistently matching colors at a great price.
Choosing Right Keypad for Your Needs
From the basic keypads with standard two-button for up and down to the advanced all-in-one keypad, you can choose the right keypad for your dream standing desk!
The basic keypad -- Change from sitting to standing posture easily with the single tap of a button
The advanced keypad -- Save your favorite seated, standing, and under-desk cycling heights. And set up convenient activity alerts to remind you to sit or stand at regular intervals
High Quality, Environmentally Friendly Desktop
Choose from sustainable 0.7" thick environmental-friendly bamboo, multiple colors of sustainable medium-density fibreboard, and chipboard to create your perfect home office desk. Find the precise fit for your space from these choices! The 1" thick work surface on every height adjustable desk is constructed from environmentally friendly chipboard. Most importantly, our desktops have passed the product safety testing. With a myriad of different color choices and size options to choose from, rest assured that you'll be able to find the perfect top to fit your needs, and can feel great about picking the sustainable option.
The feature of electric office desk is the adjustable height of the desktop.
According to the request of the user in the actual using, the office desk can be adjusted into different height.
It has the location memory to the prefer location which the user are used to. If the height is adjusted by other user,
you just need to press one memory button and then the height will be back to the original one.
It is very convenient and saves time for the user.
Basic data
1. Input voltage : 110V/220V AC 50/60Hz ;
2. Output voltage : 24V DC ;
3. The stroke : 500mm (option ) ;
4. Max load capacity : 2000N ;
5. No load speed : 23mm/s;
6. Type of duty : 10%
| The motor number | The applications | ||
| Single motor | dual motor | three pcs of the motors | office desk |
Button functions.
1. Button ” UP1 ” and Button ” DN1 ” are to control the lifting up and down of the office desk(self lock). Pressing button up1 and loose the finger, the office desk will lift up automatically.
Pressing button DN1 at one time and loose the finger, the office desk will lift down automatically.
It will stop when you press one of the button ” UP1 ” , ” UP2 ” , ” DN1 ” , ” DN2 ” in the process of automatically lifting up or down.(as pic 2)
2. Button ” UP2 ” , ” DN2 ” are to control the office desk up and down. Pressing button UP2, the desk will lift up and it will stop when you loose the finger.
Pressing button DN2, the desk will lift down and will stop when you loose the finger. (as pic 2).(DN2 has the reset function too at the same time).
3. Reset button DN2 is used when the synchronous work of the office desk has the bigger accumulative tolerance and work abnormally.
Pressing DN2 and not moving the finger, the desk will lift down all the time to the bottom.And then do not move your finger and keep pressing for 5 seconds,
the office desk will have the rebound action which is up 5mm. It is a successful reset.
4. Memory button S need to work together with location key 1,2,3,4. Firstly you need to set the memory location, for example when the desk lift up to 100mm location, you
should press Key S and location button 1 at the same time. When the desk lift up to 200mm, press key S and button 2 at the same time. When the desk lift up to 300mm,
press S and 3 at the same time. When the desk lift up to 400mm, press S and 4 at the same time. When we set well the location memory, we could use them. For example,
when the desk is at any location, press button 1, the desk will be back to 100mm location. Press button 3, it is back to 300mm.
5. Digital display. When the desk lift up and down, the digital display will show the detail location and some code when the desk is in some special situation.
6. Used protection. When the desk work 3 minutes continuously, it will stop work automatically, and back to normal state after 999 seconds. Digital display will show “ hot ” code and count down 999 seconds.
