Quick Details
-
Rated Loading Capacity:
-
5 ton
-
Max. Lifting Height:
-
17.5 m
-
Place of Origin:
-
China
-

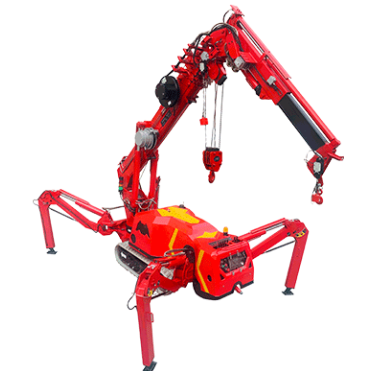

Product name:
-
Spider Crane
-
Key words:
-
Spider Crane
-
Usage:
-
Lifting Goods Agriculture House Usage
-
Model:
-
SPT499
-
Load Capacity:
-
5 ton
-
Function:
-
lifting
-
Brand:
-
top brand
-
Certification:
-
CE ISO
-
Color:
-
Customer Requirements
Quick Details
-
Weight (KG):
-
6000
-
Marketing Type:
-
New Product
-
Application:
-
construction
-
Rated Loading Capacity:
-
5 ton
-
Max. Lifting Height:
-
17.5 m
-
Place of Origin:
-
China
-
Product name:
-
Spider Crane
-
Key words:
-
Spider Crane
-
Usage:
-
Lifting Goods Agriculture House Usage
-
Model:
-
SPT499
-
Load Capacity:
-
5 ton
-
Function:
-
lifting
-
Brand:
-
top brand
-
Certification:
-
CE ISO
-
Color:
-
Customer Requirements
PRODUCT DISCRIPTION
FEATURE
*17.5 m maximum working height
*5 tons maximum lifting capacity
*Machine width (1400 mm)
*Dual power (diesel engine + electric motor)
*Safe torque limiter
*smart display
*Wireless Proportional Remote Control
*Boom/Outrigger Safety Interlock Function
*Outrigger position detection function
*Anti-tip protection function
*Automatic hook function
*Body weight 6000 kg
*The whole machine is guaranteed for two years (all imported configurations)
PRODUCT PARAMETER
|
Model
|
|
SPT499
|
|
|
Specification
|
|
5.0t×3.0m
|
|
|
Maximum operating radius
|
|
16.50m×0.40t
|
|
|
Maximum head above ground
|
|
17.5m×1.3t
|
|
|
Maximum underground lift
|
|
20mx4.7t (6rope) 30mx4.7t (4rope)
62mx3.2t (2rope) 125mx1.5t (1rope) |
|
|
winch device
|
Hook rising speed
|
0-12m/min (6rope）0-18m/min (4rope）
|
|
|
|
Wire Rope Specifications
|
Φ10mm×150m
|
|
|
telescopic device
|
Boom form
|
5-section jib, hexagonal structure
|
|
|
|
Boom length/time
|
6.0m-19.6m/55sec
|
|
|
ups and downs device
|
Boom angle/time
|
0-80°/25sec
|
|
|
roundabout device
|
Rotation angle/speed
|
0-360°/60sec
|
|
|
outrigger
|
Form of outrigger action
|
manual+hydraulic
|
|
|
|
Maximum extension (mm)
|
6850（long）*7100（forward）*6970（back）
|
|
|
walk device
|
way of walking
|
Hydraulic motor drive, two speed
|
|
|
|
Walking speed
|
0-2.5km/h
|
|
|
|
Gradeability
|
23°(42%)
|
|
|
|
Track (length×width)
|
2235mm×400 mm
|
|
|
|
Ground specific pressure
|
67kpa（0.68 kgf/cm²）
|
|
|
motor
|
Voltage
|
AC380V
|
|
|
|
Power/speed
|
15kw/1440 min-1
|
|
|
|
noise level
|
Rated speed≤78dB(A) （1m）
|
|
|
Diesel engines
|
model
|
4TVN88Z(YANMAR)
|
|
|
|
Type/displacement
|
Four-cylinder water-cooled/2.190L
|
|
|
|
rated power
|
32.3kw/2600 min-1
|
|
|
|
start method
|
electric start
|
|
|
|
boot performance
|
-5°C~40°C
|
|
|
|
fuel/volume
|
diesel/60L
|
|
|
|
battery capacity
|
12v 60AH
|
|
|
|
Fuel consumption
|
259g/kW-h
|
|
|
|
noise level
|
Rated speed≤92B(A) (1m)
|
|
|
|
Emission Standards/Altitude
|
EPA-Tier4/1200m
|
|
|
operate system
|
Type of operation (boom/walking/outrigger/throttle)
|
Wireless Remote and Dual-Axis Joystick Controller
|
|
|
|
operating characteristics
|
Full Proportional Control vs. Proportional Joystick Control
|
|
|
vehicle size
|
length x width x height
|
5480mm×1400mm×2000mm
|
|
|
all car weight
|
Host (not including optional)
|
6000kg
|
|
