Quick Details
-
Power:
-
6W
-
Warranty:
-
15month
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZYX
-
Model Number:
-
W739F-G
-
Product name:
-

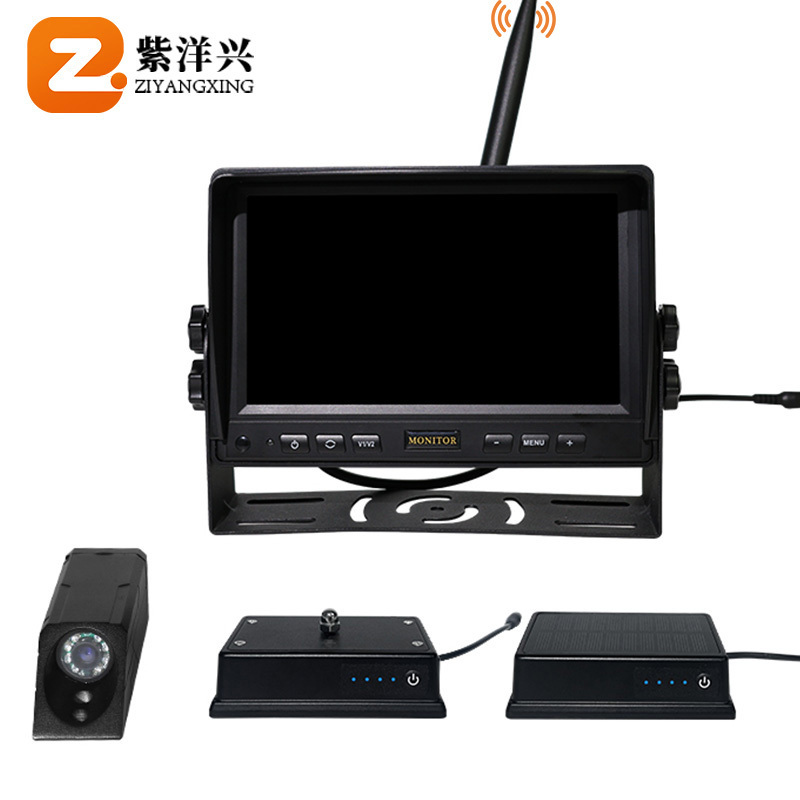

Wireless Forklift Camera system
-
Model No:
-
ZY-W739
-
Application:
-
Forklift
-
Certificate:
-
CE\ROSH\E-MARK\ISO\IATF16949
-
Shipping Port:
-
Yantian Port, Shenzhen
-
Image sensor:
-
1/3
-
Resolution:
-
1080P
-
Night vision:
-
8led
-
Connection:
-
Automatic pairing capability
Quick Details
-
Car Fitment:
-
Universal
-
View Angle:
-
120°-170°
-
Function:
-
Waterproof, NIGHT VIEW, Split Screen
-
Power:
-
6W
-
Warranty:
-
15month
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZYX
-
Model Number:
-
W739F-G
-
Product name:
-
Wireless Forklift Camera system
-
Model No:
-
ZY-W739
-
Application:
-
Forklift
-
Certificate:
-
CE\ROSH\E-MARK\ISO\IATF16949
-
Shipping Port:
-
Yantian Port, Shenzhen
-
Image sensor:
-
1/3
-
Resolution:
-
1080P
-
Night vision:
-
8led
-
Connection:
-
Automatic pairing capability
Features
1) 7inch LCD TFTHD display wireless monitor, support SD card storage
2) AHD 1080P wireless forklift camera, IR LED, better day and night vision
3) Support wide operating voltage range: 12-36V DC
4) IP67 waterproof design for working well in all adverse weather conditions
5) Operating Temperature: -25℃~+70℃, for stable performance in low and high temperature
6) Magnetic base for easy and quick installation, mount without drilling holes
7) Automatic pairing with no interference
8) Rechargeable battery for camera power input
**Note: Please kindly contact ZYX for more information before starting order.
1) 7inch LCD TFTHD display wireless monitor, support SD card storage
2) AHD 1080P wireless forklift camera, IR LED, better day and night vision
3) Support wide operating voltage range: 12-36V DC
4) IP67 waterproof design for working well in all adverse weather conditions
5) Operating Temperature: -25℃~+70℃, for stable performance in low and high temperature
6) Magnetic base for easy and quick installation, mount without drilling holes
7) Automatic pairing with no interference
8) Rechargeable battery for camera power input
**Note: Please kindly contact ZYX for more information before starting order.
|
Camera Specifications
|
|
|
|
|||
|
Waterproof
|
IP68
|
|
16:9
|
|||
|
View Angle
|
90 degree
|
resolution
|
1024 x RGB x 600
|
|||
|
Resolution
|
1080P
|
|
Single/split
|
|||
|
Image Sensor
|
1/3" Cmos
|
2.4G transmission distance
|
450m (open area)
|
|||
|
Lens type
|
3.6mm
|
Brightness
|
500 nits
|
|||
|
Min Lumination
|
0.05 Lux (8 LED)
|
system
|
PAL/NTSC
|
|||
|
Install
|
Magnet
|
built-in receiver
|
2.4GHz
|
|||
|
S/N
|
>48dB
|
Bracket
|
U metal
|
|||
|
normal /mirror image
|
adjustable
|
OSD
|
Multi-Launguages
|
|||
|
Voltage
|
DC 12~24v
|
Power Supply
|
DC 12~36V
|
|||
|
Consumption
|
100mA
|
Rotating
|
Up/down/left/right
|
|||
|
Operating Temperature
|
-10℃ ~ +60℃
|
screen Size
|
7 inch
|
|||
|
Certification
|
CE, Emark
|
waterproof
|
IP67
|
|||
Product Description
Specification
|
Products
|
|
|
1、Product Name
|
7 inch Wireless Digital monitor &camera kits
|
|
2、Model No
|
ZY-W739
|
|
|
|
|
Screen
|
|
|
1、LCD Type：
|
Button
|
|
2、Screen size:
|
7inch IPS
|
|
3、Screen Ratio:
|
16:9
|
|
4、Resolution:
|
1024*600
|
|
5、Contrast:
|
500:1
|
|
6、Brightness:
|
500 CD/M2
|
|
7、View angle:
|
Full Angle
|
|
8、Image reversion:
|
Up/Down/Left/Right
|
|
9、TV System:
|
PAl/NTSC/Automaticlly
|
|
10、OSD manual:
|
Brightness,Contrast,Saturation,Volume,Language
|
|
11、Voltage:
|
DC9V-35V
|
|
12、Language:
|
8 Language
|
|
13、Power consumption：
|
5W
|
|
14、Power output:
|
12V
|
|
15、Display mode:
|
Signal picture/split picture/threee picture/ four picture
|
|
16、Touch Function:
|
YES (can do it)
|
|
17、Operation Mode:
|
Bottom \ remote control
|
|
18、Loop Recording:
|
Yes
|
|
19、Transmission distance:
|
Transmission bandwidth 20MHz, 50M in the open distance.
|
|
20、Operating Frequency:
|
2.4G WIFI wireless transmission, 3DB antenna. 2400-2483.5MHZ
|
|
21、Auto Paring：
|
YES
|
|
22、Operating temperature:
|
-20^70℃
|
|
23、Storage temperture:
|
-30^80℃
|
|
|
|
|
Camera
|
|
|
1、Camera Solution:
|
1920*1080(200W)
|
|
2、Waterproof rating:
|
Waterproof rating IP68
|
|
3、Shockproof level:
|
4G
|
|
4、Image Sensor:
|
1/3" AHD sensor
|
|
5、View angle:
|
110°(H) 140°(D)
|
|
6、Minimum illumination:
|
0 lux IR on
|
|
7、CDS night version change:
|
change:Change to black and white image automatically in the night
|
|
8、Power supply:
|
DC12v
|
|
9、Image:
|
Mirror or Non-mirror optional
|
|
10、Transmitted Power:
|
22DB
|
|
11、Relative humidity:
|
less than 90%
|
|
12、Working temperature:
|
-20-70degree
|
|
13、Full Color Camera:
|
|
|
14、Shell Plastic
|
Metal + Plastic
|
|
|
|
|
Cable
|
NO
|
|
Battery
|
NO
|
|
Charger
|
NO
|
|
Storage
|
16-256G
|
|
Shipping Port
|
Yantian Port, Shenzhen
|
