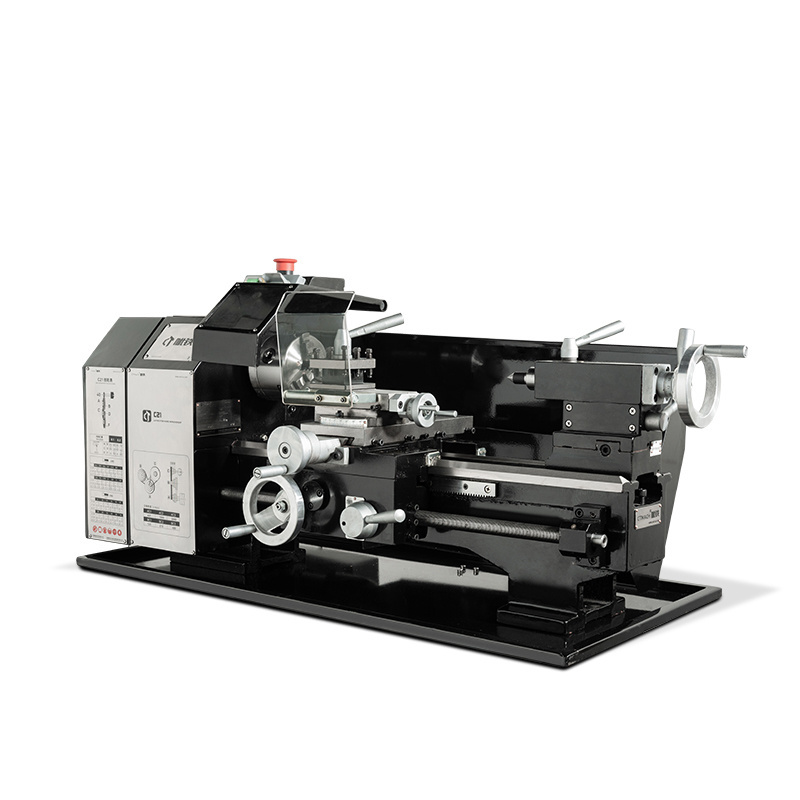

Performance small C21 metal lathe machine mini mechanical lathe for sale
Performance small C21 metal lathe machine mini mechanical lathe for sale
Performance small C21 metal lathe machine mini mechanical lathe for sale
Performance small C21 metal lathe machine mini mechanical lathe for sale
Performance small C21 metal lathe machine mini mechanical lathe for sale
Performance small C21 metal lathe machine mini mechanical lathe for sale
Performance small C21 metal lathe machine mini mechanical lathe for sale
Performance small C21 metal lathe machine mini mechanical lathe for sale

Performance small C21 metal lathe machine mini mechanical lathe for sale

FOB Reference Price: Get Latest Price
≥1 Sets
US $950
≥5 Sets
US $900
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Range of Spindle Speed(r.p.m):
125 - 2000 r.p.m
Max. Turned Length (mm):
450 mm
Spindle Motor Power(kW):
0.75
Year:
2022
Place of Origin:
Anhui, China
Brand Name:
CTMACH
Model Number:
C21
Voltage:
110V 200V 220V
Dimension(L*W*H):
965*585*510MM
Weight (KG):
114 KG

Quick Details

Max. Length of Workpiece (mm):
450
Machining Capacity:
Light Duty
Spindle Bore(mm):
20
Range of Spindle Speed(r.p.m):
125 - 2000 r.p.m
Max. Turned Length (mm):
450 mm
Spindle Motor Power(kW):
0.75
Year:
2022
Place of Origin:
Anhui, China
Brand Name:
CTMACH
Model Number:
C21
Voltage:
110V 200V 220V
Dimension(L*W*H):
965*585*510MM
Weight (KG):
114 KG
Product Description
Features
1、The whole machine is 114kg, occupies a small area and can be used in a wide range of scenarios.
2、Imported SKF bearings are used to improve service life and accuracy.
3、Belt drive,low sound,6-speed speed change can be obtained by changing the belt position.
The lowest is 125rpm, and the highest can reach 2000rpm.
4、Longitudinal automatic feed(0.1,0.2m/u).
5、Double  V-type quenching guide rails on the bed, stable and hight precision.
6、Power-off protection cover, open the protection cover and automatically power off,safe and secure.
Product Parameters
Maximum turning diameter bed
230mm
Maximum turning diameter of middle carriage
125mm
Distance between centers
450mm
Spindle speed range/Grade
125-2000rpm
Spindle taper
MT3
Spindle bore
20mm
Max. travel of tail-stock sleeve
70mm
Taper of tailstock
MT2
Lateral stroke
120mm
Top slide travel
75mm
Range of metric threads/Grade
0.4-3.5mm/u (14)
Range of inch threads/Grade
8-44T.P.I/12
Range of longitudinal feeds
0.07/0.40mm/u
Motor
220v / 750w
N.W./G.W.
114/130KG
Machine size
965x585x510mm
Packing size
980x560x560mm
