Quick Details
-
Optical Resolution:
-
Optical Resolution: 4mil
-
Scan Speed:
-
1120 scan/s
-
Brand Name:
-
LONVILL
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
1D Laser Desktop Scanner
-
Scan Mode:
-
Continuous Automatic Scanning
-
Decode Capabilities:
-
Standard 1D
-
Scan Angle:
-
Elevation ±60°, declination ±70°
-
System Supported:
-
Linux,Windows XP,7,8, 10
-
Weight:
-
388g
-
IP grade:
-
IP54
-
Dimension:
-
115mm*114mm*152mm
-
Communication:
-
Keyboard port, USB / Serial port
-
Precisions:
-
4mil
Quick Details
-
Type:
-
Barcode Scanner
-
Scan Element Type:
-
Laser
-
Max Paper Size:
-
A4
-
Optical Resolution:
-
Optical Resolution: 4mil
-
Scan Speed:
-
1120 scan/s
-
Brand Name:
-
LONVILL
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
1D Laser Desktop Scanner
-
Scan Mode:
-
Continuous Automatic Scanning
-
Decode Capabilities:
-
Standard 1D
-
Scan Angle:
-
Elevation ±60°, declination ±70°
-
System Supported:
-
Linux,Windows XP,7,8, 10
-
Weight:
-
388g
-
IP grade:
-
IP54
-
Dimension:
-
115mm*114mm*152mm
-
Communication:
-
Keyboard port, USB / Serial port
-
Precisions:
-
4mil
Product Description
Specification

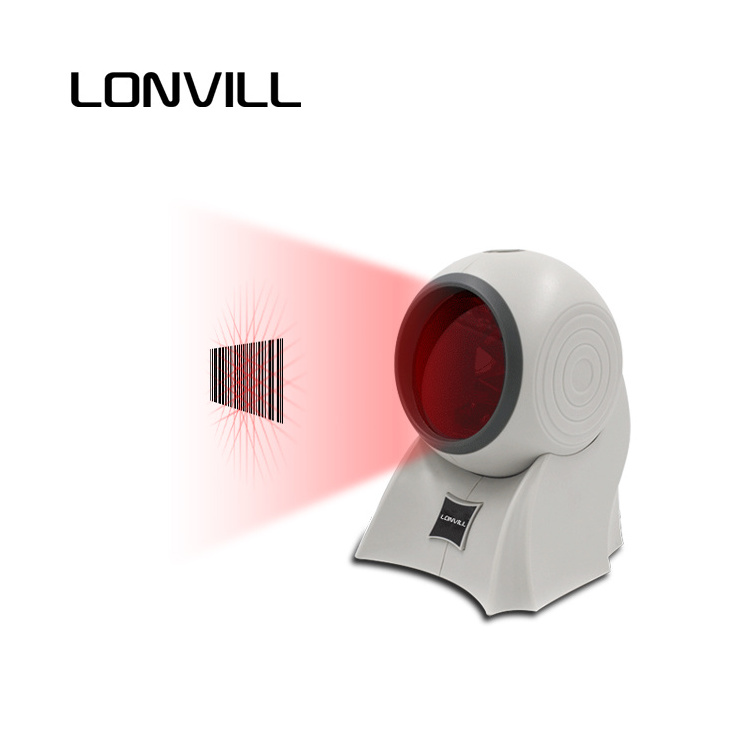

LONVILL D0111 1D Omni Laser Barcode Scanner Features:
-
Patented decoding technology for high first-pass rate.
- 20 laser lines for efficient omnidirectional scanning.
- NEC 72m frequency chip for fast decoding.
- Gold plating process for lasting reading performance.
- 45-degree adjustable design to reduce cashier fatigue.
- Military-grade electronic materials for stability and durability.
- Customization options available for tailored functionality.
|
Performance Parameters
|
Light Source
|
|
650 nm Visible laser diode
|
|
|
|||
|
|
Scan Form
|
|
20 Laser Lines(5 directions)
|
|
|
|||
|
|
Scan Speed
|
|
1120 scan/s
|
|
|
|||
|
|
Printing Contrast
|
|
Reflectance different 25%
|
|
|
|||
|
|
Error Rate
|
|
1/50,000
|
|
|
|||
|
|
Scan Angle
|
|
Roll ±360°,Elevation angle±60°,Deflection angel 70°
|
|
|
|||
|
|
Symbologies
|
|
EAN-8,EAN-13,EAN-13 2 add-on, EAN-13 5 add-on,ISSN,ISBN, UPC-A,UPC-E,Code 39,Code93,Code 128,Codabar, interleaved 2 of 5,etc.
|
|
|
|||
|
|
Scanning Range
|
|
Test Code
|
Min. Range
|
Max. Range
|
|||
|
|
|
|
5mil Code39
|
1cm
|
5cm
|
|||
|
|
|
|
6.6mil Code 39
|
1cm
|
11cm
|
|||
|
|
|
|
10mil Code 39
|
1cm
|
15cm
|
|||
|
|
|
|
13mil UPC
|
1cm
|
18cm
|
|||
|
|
Readable barcode
(Min) |
|
4.0mil
|
|
|
|||
|
|
System Compatibility
|
|
Linux, Android, Windows XP, 7,8,10
|
|
|
|||
|
|
Scan Mode
|
|
Automatic Continuous Scan
|
|
|
|||
|
|
Support Keyboard
|
|
American, French, German, Japanese, Italian, Belgian, Dutch
|
|
|
|||
|
|
Secondary
Development |
|
Not Support
|
|
|
|||
|
|
Barcode Output Editing
|
|
Can delete the data before and after the barcode (up to 4 digits)
|
|
|
|||
|
Human Interaction
|
Indicator Light
|
|
Red and blue indicator: red light power indicator, blue light decoding flashing
|
|
|
|||
|
|
Buzzer
|
|
Start prompt, decoding success prompt
|
|
|
|||
|
|
Button
|
|
Button wake up
|
|
|
|||
|
Environment Parameters
|
Duration
|
|
Design to withstand 5 drops from 1.5m
|
|
|
|||
|
|
Environmental Sealing
|
|
IP54
|
|
|
|||
|
|
Working/Conserve Temperature
|
|
-10-50℃/-20-60℃
|
|
|
|||
|
|
Working/Conserve Humidity
|
|
5-95% Non-condensed
|
|
|
|||
|
|
Environment Light
|
|
70000LUX
|
|
|
|||
|
Physical Parameters
|
Net weight
|
|
388g
|
|
|
|||
|
|
Packing weight
|
|
688g
|
|
|
|||
|
|
Data line length
|
|
180CM(±3CM)
|
|
|
|||
|
|
Host size(L*W*H)
|
|
115mm* 114mm*152mm
|
|
|
|||
|
|
Packing size(L*W*H)
|
|
236*165*133mm
|
|
|
|||
|
|
Interface
|
|
USB
|
|
|
|||
|
|
Operating Voltage
|
|
5V
|
|
|
|||
|
|
USB InterfaceManual induction
|
Standby power
|
155mA/0.775W
|
|
|
|||
|
|
|
Working power
|
155mA/0.775W
|
|
|
|||
|
|
|
Working power (Max.)
|
191mA/0.955W
|
|
|
|||
|
|
Serial port Manual induction
|
Standby power
|
154mA/0.77W
|
|
|
|||
|
|
|
Working power
|
154mA/0.77W
|
|
|
|||
|
|
|
Working power (Max.)
|
192mA/0.96W
|
|
|
|||
|
|
Laser grade standard
|
|
National secondary laser safety standard
|
|
|
|||
|
|
Electromagnetic compatibility
|
|
CE & FCC DOC compliance
|
|
|
|||
