Quick Details
-
Dimension:
-
1630 mm * 1580mm * 2300 mm
-
Cabinet material:
-
38 round tube, 1.5mm thick SUS304
-
Channel width:
-
≤ 650mm
-
Ambient temperature:
-
-20 degrees to 60 degrees
-
Input voltage:
-
100V~240V
-
Driving voltage:
-
24V
-
Equipment power:
-
30W
-
Response time:
-
0.2S
-
Passing speed:
-
30 people / min
-
Communication interface:
-
RS485
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SUVA
-
Model Number:
-
FH005
-
Dimension:
-
1630 mm * 1580mm * 2300 mm
-
Cabinet material:
-
38 round tube, 1.5mm thick SUS304
-
Channel width:
-
≤ 650mm
-
Ambient temperature:
-
-20 degrees to 60 degrees
-
Input voltage:
-
100V~240V
-
Driving voltage:
-
24V
-
Equipment power:
-
30W
-
Response time:
-
0.2S
-
Passing speed:
-
30 people / min
-
Communication interface:
-
RS485

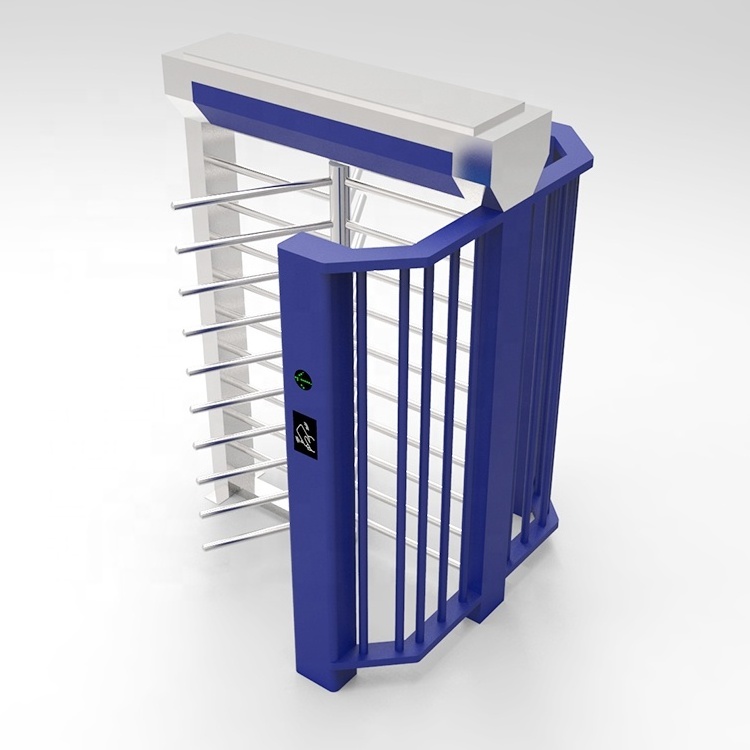

Polish Welding Pedestrian Control Full Height Turnstile Mechanism
Functional Overview:
The G539 is a high-reliability, high-rise revolving door for outdoor use. The waterproof design of the whole structure and the sectional installation design make the installation and maintenance of this product very convenient. A standard electromechanical device is configured to prevent double pass at the same time. In addition, the hydraulic shock absorber ensures smooth and quiet operation.
The whole product frame adopts stainless steel laser cutting, CNC bending forming, beautiful appearance, and the system adopts standard quick plugging and unplugging electronic interface, which can integrate various reading and writing devices, etc., and can easily read ID card, IC card, etc. The writing device is integrated on the device to provide an orderly and civilized way for the entry and exit personnel, and can prevent illegal personnel from entering and exiting. At the same time, in order to meet the requirements of the fire exit channel, in case of emergency or power failure, the fault protection mode can be set. That is, the rotating shaft is free to rotate and is switched to the free two-way traffic mode.
Basic parameters:
| Dimensions | L1630 mm XW1580mm XH2300 mm |
| Cabinet material | 38 round tube, 1.5mm thick SUS304 |
| Channel width | ≤ 650mm |
| Ambient temperature | -20 degrees to 60 degrees |
| Working environment | indoor and outdoor (outdoor canopy) |
Technical Parameters:
| Input voltage | 100V~240V |
| Driving voltage | 24V |
| Equipment power | 30W |
| Response time | 0.2S |
| Passing speed | 30 people / min |
| Communication interface | RS485 |
| Communication distance | less than 1200m |
| Open brake signal input | dry contact |
| Switching door time | Less than 1S |
1. It has stable and reliable mechanical locking device, precise movement and turntable combination structure with special process;
2. With two-way traffic function, the steering lever is divided into two directions and one direction;
3. When the power is cut off, the system will automatically unlock the brake lever to form a free-pass mode, which is convenient for evacuating people and meeting fire protection requirements;
4. After the pedestrian reads the valid card, if the system does not pass within the specified time of the system, the system will automatically cancel the pedestrian access right;
5. Install the two-way arrow indicator to indicate the traffic status, and pass or prohibit the passage;
6. An external bidirectional flow counter can be connected to display the number of people in the traffic direction;
7. The control panel has a dial switch, which can adjust the transit delay time by algorithm, and can also be adjusted into a memory mode. For example, brush five effective cards and pass five people;
8. The anti-reverse device function prevents the rotating unit from rotating opposite to the original direction;
9. Unified standard external electrical interface, can be connected with a variety of card readers, and can be remotely controlled and managed through a management computer;
The entire system runs smoothly with low noise
