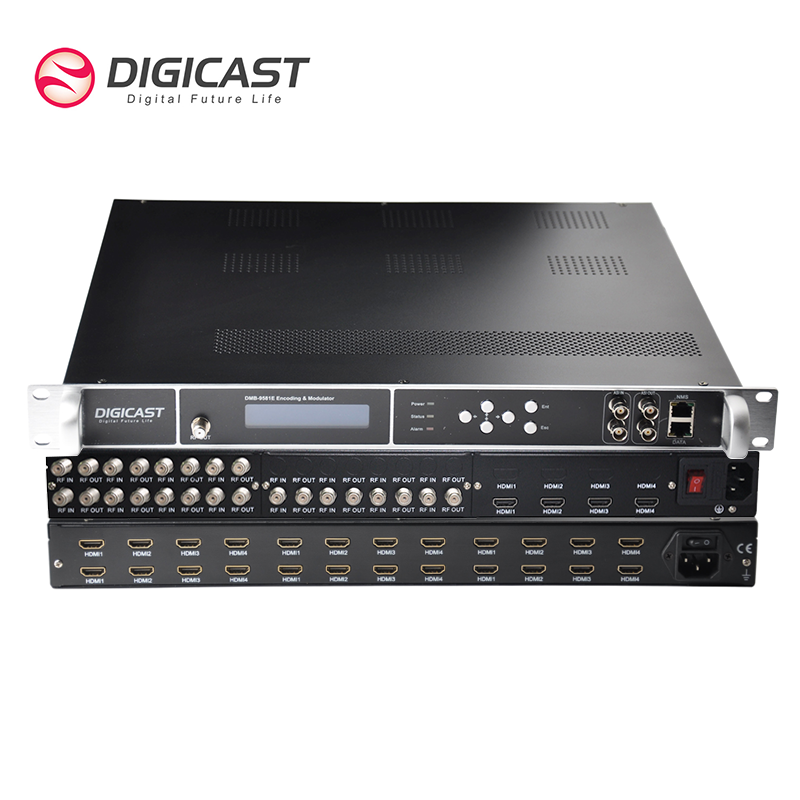

DIGICAST DMB-9581E Multi Channel HDM I to DVBT RF Modulator HD Encoder Modulator

DIGICAST DMB-9581E Multi Channel HDM I to DVBT RF Modulator HD Encoder Modulator

FOB Reference Price: Get Latest Price

≥1 Pieces

US $1979

≥20 Pieces

US $1949

≥50 Pieces

US $1899

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Nature:: HD Encoder Modulador

Input:: HD MI + Tuner

Input Channel:: 4/8/12/16/20/24

RF Output standard:: DVB-C/ATSC/DVB-T/ISDB-T

IP Input:: 128*MPTS/SPTS UDP/IP

IP Output:: 1/8*MPTS & 127/512*SPTS UDP/RTP IP

ASI:: 2*ASI I/O

Video encoding:: MPEG-4 AVC/H.264, HEVC/H.265

Audio encoding:: MPEG-1 Layer 2

Application:: IPTV System, Hotel and Hospital TV

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: DIGICAST

Model Number:: DMB-9581E

Nature:: HD Encoder Modulador

Input:: HD MI + Tuner

Input Channel:: 4/8/12/16/20/24

RF Output standard:: DVB-C/ATSC/DVB-T/ISDB-T

IP Input:: 128*MPTS/SPTS UDP/IP

IP Output:: 1/8*MPTS & 127/512*SPTS UDP/RTP IP

ASI:: 2*ASI I/O

Video encoding:: MPEG-4 AVC/H.264, HEVC/H.265

Audio encoding:: MPEG-1 Layer 2

Application:: IPTV System, Hotel and Hospital TV

Product Description

Overview

DMB-9581E series multi-channel H.264 HD Encoding & Modulator (all-in-one) is a high-density and flexible device, integrating encoding 8/12/16/20 up to 24*HDMI in, multiplexing, encapsulation and modulation with its excellent performance of HD encoding and modulation.

Not only HDMI input, this item support Tuners and HDMI input at the same time, demodulation the tuners signal and encoding the HDMI signal,output RF DVB-T/DVB-C/ATSC/ISDB-T/ DTMB for option. Meanwhile, it delivery unrivaled and reliable video quality with advanced video compression technology, to meet the ever-increasing need of high quality video experiences. Moreover, with its multiplexing module, local programs can be re-multiplexed with external transport stream.

DMB-9581E series can be applied to IPTV system with TS over IP output/input. The device also supports program sources from HD STB, HD camera or playout server, PC and other diversified video source.

Features

* Input: 4/8/12/16/20/24*HDMIinput+2*independent ASI I/O+IP I/O, capable of m
* Input version support HDMI+Tuner mixed input for option: 16 HDMI+8*Tuners
8 HDMI+16 Tuners
The HDMI and Tuners input must be 4 times and max total 24 channels input
* Output: up to 127*SPTS over IP(UDP/RTP)/1*MPTS, 2*ASI(independent), RF out with 4/8*RF DVB-T/DVB-C/ATSC-T/ISDB-T/Tb/DTMB for option.
* With superior shoulders and modulation quality MER ≥ 40dB
* Support lower power consumption and high reliability with MTBF(Mean Time Between Failure) ≥50000 Hours
* Equipped with multiplexing module, able to multiplex local programs with external TS, IP
* Cut-off memory capability
* Management of support web browser via Ethernet interface
* Support software upgrading by Ethernet interface

VIDEO SPECIFICATIONS

Video compression: MPEG-4 AVC/H.264/H.265 HEVC option Video inputs: 4/8/12/16/20/24*HDMI for option The Input Resolution: 1920×1080@60P, 1920×1080@60i, 1920×1080@50P, 1920×1080@50i, 1280×720@60P, 1280×720@50P, 720×576@50i, 720×480@60i The Output Resolution: 1920×1080@30P, 1920×1080@25P, 280×720@30P, 1280×720@25P, 720×576@25P,720×480@30P Bit-rate: 1 ~ 13Mbps, CBR/VBR GOP Structure: IPPPP (P Frame for adjustment, without B Frame)

AUDIO SPECIFICATIONS

Encoding: MPEG-1 Layer 2 Sampling: rate 48KHz Resolution: 24-bit Bit-rate : 64kbps, 128Kbps, 192kbps, 224kbps, 256kbps, 320kbps,
384kbps Audio Gain: 0-255

INPUTS AND OUTPUTS

ASI Input Channel: 2*ASI(Independent) Interface: BNC, 75 ohm Signal Level 200-800mVp-p Packet Length 188 bytes Maximum bit-rate per port ≤100Mbps Packet mode: Byte mode ASI Output 2 * ASI one for backup (Select from modulation Channels or MPTS channel) 75Ω, BNC, 188Bytes MPEG-2 TS over DVB-ASI (EN 50083-9) IP Output RJ45 Port,100/1000M GigE Port Simultaneous output with N*SPTS (N==HDMI channels) and 1*MPTS (modulation or MPTS channels) MPEG-2 TS over RTP,UDP unicast and multicast streaming Configurable packet size(2-7)x188Bytes Filter Null Packet Total Bitrate: 1-200Mbps (Should be More than Encoding bitrate)

Application & Diagram

Hot Sale

WHY CHOOSE US

Certifications

FAQ

1.Can you provide OEM service as per our request? Is it free?
With our professional & experienced design team, we can provide OEM service by replacing your company logo on chassis, software interface as well as carton.

2.What about your Warranty?
We provide new free spare parts in 5 years because of the product quality problems, except for man-made damage.

3.About the shipping way?
Customers can choose their own logistics company when placing orders. Or contact us to specify our desired logistics company. Such as FedEx/ UPS/EMS/ ARAMEX/DHL etc. If you need to know the specific shipping time, please contact us.

4.Provide remote technical support service
Our engineers can provide professional technical support services to customers through remote software, such as Teamviewer,anydesk whatsapp etc.

5.How does your factory do regarding quality control
Quality is very important and always be put at the first place,Every product will be tested before it is shipped to ensure that
every device is delivered to you with high quality

6.Can this stream to the Facebook, YouTube and so on. Is that compatible with the OBS Streaming Software?
Yes. our encoder could stream to the Facebook, YouTube, Twitch etc. And the OBS software uses RTMP protocol, so this encoder could compatible with the OBS.

7.I never use this device before/I don’t know if the device suit our local market, Can I get a sample for test firstly.
Yes, even if we are doing wholesale business, We could fully understand the further cooperation is based on time and the goods’ quality. So one set of sample is totally welcomed.
