Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ATOM
-
Power:
-
1HP
-
Dimension(L*W*H):
-
100X100X145CM
-
Weight:
-
630KGS
-
Year:
-
2013
-
cutting pressure:
-
20T
-
arm width:
-
37cm
-
cutting table:
-
900x430mm
-
power:
-
1HP
-
N.W.:
-
600kgs
-
G.W.:
-
630kgs
-
Dimension:
-
100x100x149cm
-
stoke:
-
90mm
-
Certification:
-
ISTO
Quick Details
-
Voltage:
-
220v/380v
-
Applicable Industries:
-
SHOES, BELT, BAGS
-
Warranty of core components:
-
1MONTH
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ATOM
-
Power:
-
1HP
-
Dimension(L*W*H):
-
100X100X145CM
-
Weight:
-
630KGS
-
Year:
-
2013
-
cutting pressure:
-
20T
-
arm width:
-
37cm
-
cutting table:
-
900x430mm
-
power:
-
1HP
-
N.W.:
-
600kgs
-
G.W.:
-
630kgs
-
Dimension:
-
100x100x149cm
-
stoke:
-
90mm
-
Certification:
-
ISTO

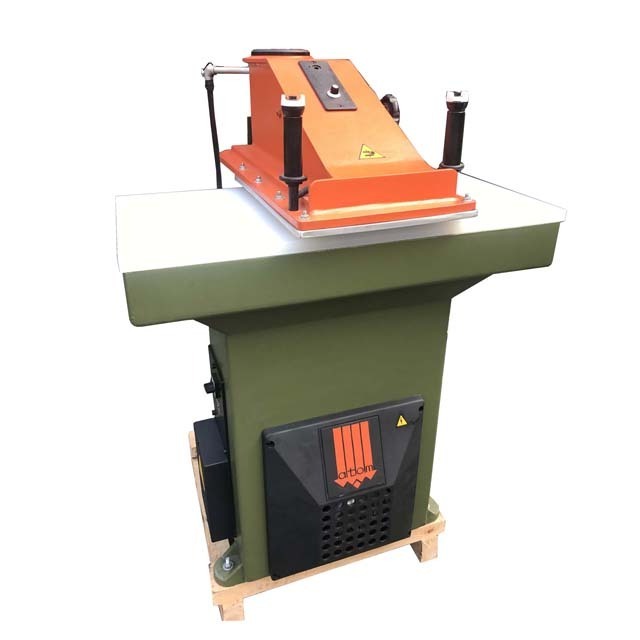

hydraulic leather swing arm atom rotating clicker press 20 ton
Brand: ATOM
Model: VS922
Rebuilt machine, excellent working condition.
This swing beam cutting press is extremely simple to use with easy adjustment of the cutting stroke, an operator can switch between multiple height cutting dies without any setting or adjustment.
The control push buttons are ergonomic, so allowing the operator increased comfort. The push buttons are controlled by a two hand safety relay, meaning the buttons need to be activated 5/10ths/sec between each other too allow cutting stroke activation, and requires constant activation to maintain a cut stroke.
The cutting power is easily adjusted if required through the movement of a simple potentiometer on the cutting beam.
TECHNICIAL DATA:
| Model: | VS922 |
|
Cutting Table (mm) |
900x430mm |
| Arm width(mm) | 37cm |
| Max. cutting power | 22 |
| Max. stroke | 90mm |
| Motor power | 1HP |
| voltage | 380V/220V, 3phase |
| Weight | 630kgs |
| Dimension | 100x90x149cm |
