- Product Details
- {{item.text}}
Quick Details
-
Ice storage capacity:
-
35KG, 80KG, 90kg, 250kg, 450KG, 500KG, 600kg, 700kg, 800KG, 900kg, 1000kg
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SMC
-
Dimension(L*W*H):
-
1800X1200X2300mm
-
Weight:
-
2100 KG
Quick Details
-
Ice Shape:
-
dry ice
-
Voltage:
-
380V/440V/220V
-
Power:
-
7.5
-
Ice storage capacity:
-
35KG, 80KG, 90kg, 250kg, 450KG, 500KG, 600kg, 700kg, 800KG, 900kg, 1000kg
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SMC
-
Dimension(L*W*H):
-
1800X1200X2300mm
-
Weight:
-
2100 KG

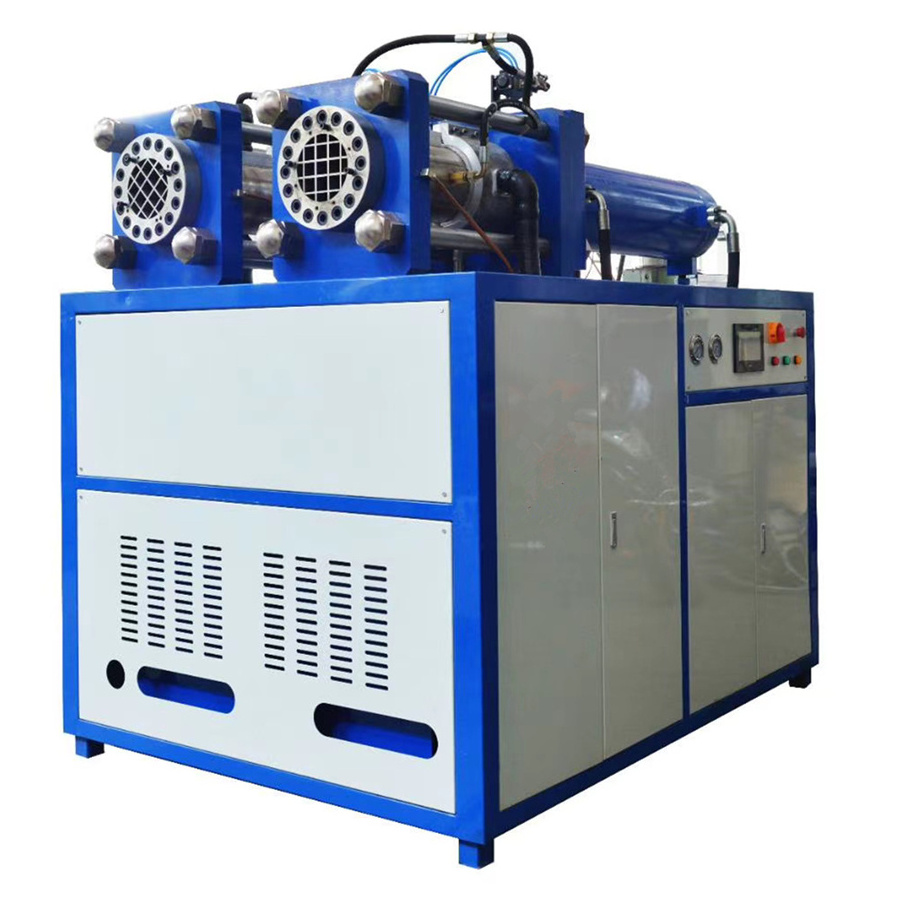

Dry Ice Blasting Unit Dry Ice Production Systems Dry CO2 Solid Making Machine
Our factory mainly produces various kinds of dry ice blo
ck machines, granular dry ice machines, dry ice cleaners, dry ice incubators and other series of products, as well as various standard and cryogenic pump and vaporizer ,gas filling station skid, gas cylinders, small hydraulic stations, etc. Due to the continuous standardization of the company's internal management, the steady improvement of product quality, and the continuous improvement of on-site debugging, the products are highly praised by customers at home and abroad.
dry ice making machine production line working site
Our dry ice making machine make 3 types dry ice:
Dry Ice Block
Dry Ice Slice
Dry Ice Cylinder
solid co2
dry ice storage in the box
dry ice box for storage solid co2
Dry Ice Incubator(with moving roller)
External Dimensions:1100x700X1010mm
Internal Dimensions:980X550X640mm
Net Weight:51-52kg
Internal Volume:300L
dry ice storage box
Dry Ice Pellet Making Machine
1000KG Double Heads Pellet Machine
Function: convert liquid carbon dioxide CO2 into dry ice particles through different sizes of mesh molds
|
Name |
Dry Ice Pellet Making Machine(Servo Motor, Low Noise) |
||
|
Model |
HR-KLJ-250 |
HR-KLJ-500 |
HR-KLJ-1000 |
|
Capacity |
250KG/h |
500KG/h |
1000KG/h |
|
Motor |
11KW |
22KW |
37KW |
|
Pressure Grade |
22Mpa |
22Mpa |
22Mpa |
|
Final Products Size(mm) |
3-19 |
3-19 |
3-19 |
|
Dimension(mm) |
1900X1030X1760 |
1900X1430X1760 |
2600X1550X1810 |
|
Weight(KGS) |
1400 |
2100 |
3600 |
dry ice pelletizing machine
dry ice slice making machine
dry ice pellet machine
Dry Ice Briquetting Machine
Function:covert liquid carbon dioxide CO2 into dry ice block through the different size of molds.
|
Name |
Dry Ice Briquetting Machine(one time forming) |
|||
|
Model |
HR-KJ-300 |
HR-KJ-500 |
HR-KKJ-2-600 |
HR-LSKJ-800 |
|
Capacity |
300KG/h |
500KG/h |
600KG/h |
800KG/h |
|
Motor |
7.5KW |
11KW |
2X7.5 KW |
2X11KW |
|
Pressure Grade |
16Mpa |
16Mpa |
16Mpa |
21Mpa |
|
Final Block Size |
125X105mm |
250X140mm |
125X105mm |
250X250mm |
|
Dimension(mm) |
1800X1000X1700 |
2600X1500X1900 |
1800X1600X1700 |
1500X1000X4300 |
|
Weight(KGS) |
1100 |
2300 |
1700 |
3500 |
Dry Ice Pellet Briquetting Machine
Function:through the different sizes of molds, dry ice particles can be converted into dry ice blocks directly.
|
Name |
Dry Ice Pellet Briquetting Machine |
||
|
Model |
HR-KLKJ-1-6-500 |
HR-KLKJ-1-6-1000 |
HR-KLKJ-1-1-2000 |
|
Capacity |
500KG/h |
1000KG/h |
2000KG/h |
|
Motor |
4KW |
7.5KW |
11KW |
|
Pressure Grade |
16Mpa |
16Mpa |
25Mpa |
|
Final Block Size |
95X95mm |
125X105mm |
250X250mm |
|
Final Block Weight |
250g |
500g |
25000g |
|
Dimension(mm) |
1800X1200X2300 |
1900X1430X1760 |
1800X1200X3100 |
|
Weight(KG) |
2100 |
2100 |
2800 |
25kg dry ice block presser
dry ice machine control system
Dry Ice Block Making Machine Production Line
The automatic dry ice block making machine production line consist by 3sets machine:
1. dry ice forming machine
2. dry ice pellet priquetting machine
3. dry ice packing system(with conveyor)
The dry ice block making machine production line just need 2 person to operate it and covers an area of 30-40m2.
dry ice making machine production line flowchart
Invest Less, Earn More.
Welcome all the customers come to visit our factory and dry ice block making machine working site. Thanks.
