Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TMAZTZ
-
Model Number:
-
TFS-302
Quick Details
-
Protection Level:
-
IP50
-
Max. Current:
-
15A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TMAZTZ
-
Model Number:
-
TFS-302
Product Overviews

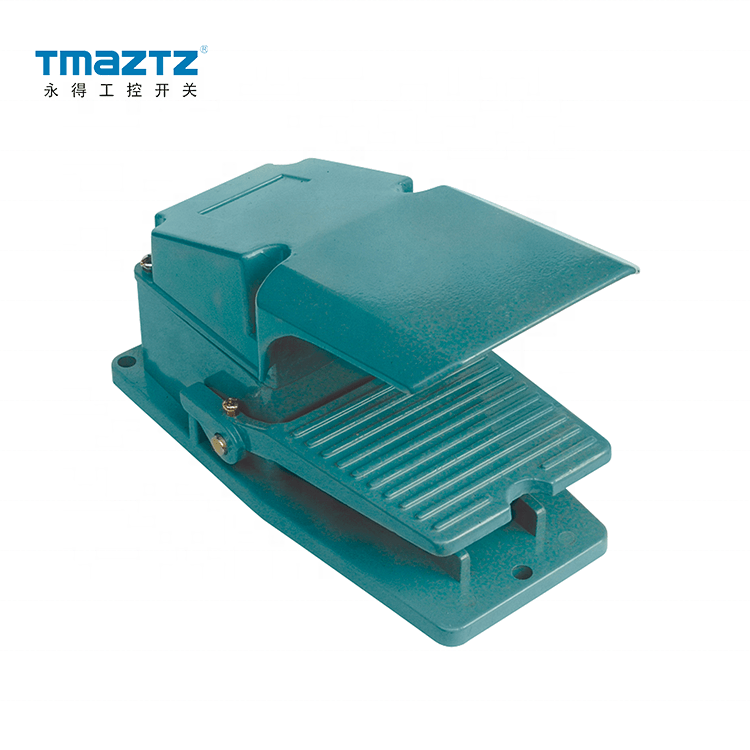

Product Show
The diffrence between Classic (←) and New(→) TFS switches.
-Completely aluminum alloy housing
-Metal shell use the stregenthening to reast the surfase, bears the impact, the wearability, thermostable;
-Switch bottom is equipped with the rubber pad, for skidproof;
-Widely used for control in industrial automation equipments, transport, pressing, medical treatment, test and etc.
| Item | Specification |
| Model Name | TFS-302 |
| Rating | 15A 250VAC |
| Contact | 1C |
| Material of Rind | Aluminium Shell+Aluminium or plastic base |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤25mΩ |
| Ui | 380V |
| Electrical life | ≥100,000 |
| Inner switch | TM-1704 micro switch(TuV,CCC,CE) |
| Temperature | -25-75°C |
| Humidity | <85% |
| Accessories | M20X1.5 Cable Gland |
