Quick Details
-
Application:
-
electronic door
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SMG
-
Model Number:
-
F0101
-
Material:
-
ABS Plastic
-
Frequency:
-
24.125GHz
-
Transmit Power:
-
20dBm EIRP
-
Transmission Frequency Density:
-
5mW / cm2
-
Certification:
-
ce
-
Smart home platform:
-
NONE
-
Kit Configuration:
-
Door Sensor
-
Connection Type:
-
wireless
-
Maximum Voltage:
-
42AC / 60V DC
-
Working Temperature:
-
-20 ° C ~ + 55 ° C
Quick Details
-
Warranty:
-
NONE
-
After-sale Service:
-
Return and Replacement
-
Project Solution Capability:
-
Others
-
Application:
-
electronic door
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SMG
-
Model Number:
-
F0101
-
Material:
-
ABS Plastic
-
Frequency:
-
24.125GHz
-
Transmit Power:
-
20dBm EIRP
-
Transmission Frequency Density:
-
5mW / cm2
-
Certification:
-
ce
-
Smart home platform:
-
NONE
-
Kit Configuration:
-
Door Sensor
-
Connection Type:
-
wireless
-
Maximum Voltage:
-
42AC / 60V DC
-
Working Temperature:
-
-20 ° C ~ + 55 ° C
Product Description
Automatic Sliding Gate glass Door Activation Sensor, Automatic Door Microwave Sensor ,Motion Presence Sensor
Features:
100% brand new and high quality .
It uses advanced motion tracking and 24.125GHz microwave sensor technology.
Optimizes sensors for all automatic door applications.
Adjust the sensor detection area by the four directions: left, right, up and down.
It is widely used in public places such as automatic doors, elevators, such as supermarkets, ATMs, airports, etc.
It uses advanced motion tracking and 24.125GHz microwave sensor technology.
Optimizes sensors for all automatic door applications.
Adjust the sensor detection area by the four directions: left, right, up and down.
It is widely used in public places such as automatic doors, elevators, such as supermarkets, ATMs, airports, etc.
Specifications:
Condition: Brand New
Material: ABS plastic
Color: Black , Silver
Technology: Microwave and Microwave Processors
Frequency: 24.125Ghz
Transmit Power: 20dBm EIRP
Transmission Frequency Density: 5mW / cm2
Installation Height:up to 3 Meters / 9.8 feet
Installation Angle: 0~90 Degrees (Longitudinal), -30~ + 30 Degrees (Horizontal)
Detection Mode: Exercise
Minimum Detection Speed: 5cm / s
Power: 2W (VA)
Detection Range: 4 (Width) * 2 (Depth) m (Mounting Height: 2m)
Maximum Voltage: 42AC / 60V DC
Maximum Current: 1A
Maximum Switching Power: 30W (DC) / 60VA (AC)
Retention Time: 0.5S
Guide Line: 2.5 m / 8.2 ft
Working Temperature: -20 ° C ~ + 55 ° C
Protection Level: IP54
Anti-jamming Performance: R&TTE1995 / 5 / EC, EMC 89/366 / EEC
Power Supply Voltage: 12-24V AC / DC
Packing Size: 15.8 * 11.5 * 6cm/6.2 * 4.5 * 2.4in
Note:
1. Please allow 1-3cm error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
1. Please allow 1-3cm error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.

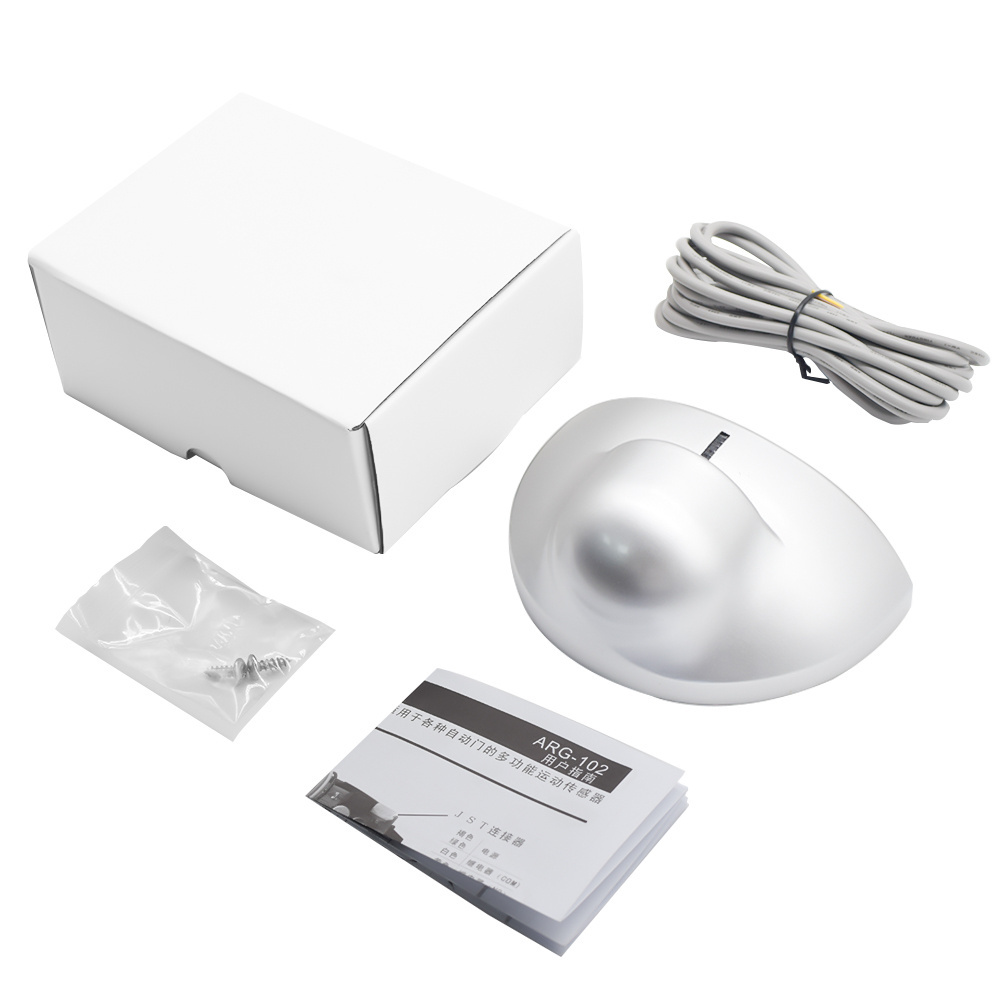

Package List:
1 * Microwave Sensor
1 * Connection Cable
1 * Positioning Jam
2 * Screws
1 * Instruction Manual
1 * Connection Cable
1 * Positioning Jam
2 * Screws
1 * Instruction Manual
Specification
|
item
|
value
|
|
Model Number
|
F0101
|
|
Type
|
Motion & Position Sensor
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
SMG
|
|
Usage
|
Ray Sensor
|
|
Theory
|
Microwave and Microwave Processors
|
|
Output
|
30W (DC) / 60VA (AC)
|
|
Description
|
SMG-F0101 Motion Presence Sensor
|
|
Material
|
ABS Plastic
|
|
Frequency
|
24.125GHz
|
|
Transmit Power
|
20dBm EIRP
|
|
Transmission Frequency Density
|
5mW / cm2
|
|
Certification
|
ce
|
|
Smart home platform
|
NONE
|
|
Kit Configuration
|
Door Sensor
|
|
Connection Type
|
wireless
|
|
Maximum Voltage
|
42AC / 60V DC
|
|
Working Temperature
|
-20 ° C ~ + 55 ° C
|
