* Input Voltage : 12-24V; DC Voltage : 30A; Rated voltage:12V 20A / 24V 10A; Operating temperature: -25°-80°; Waterproof rating:IP65.
* All in one design, no need to buy extra parts. Switch Control Box + 9 Gang Switch Panel + Mounting Brackets + Wiring Harness +Voltage Protection Breaker + Self-Adhesive Label + Screw Sets.
* The switch panel can control 8 kinds of led light bar at the same time under 12-24 Volts and a max power rating of 1201 Watts.Adopting Capacitive sensing technology with blue indicator light display, the switch panel has the features of high sensitivity, stability and strong anti-interference ability.
* Easy installation: Plug & play wiring harness with plenty of length. Panel installed by bracket, no need to cut a big hole.Labels attach easily, space saving and time saving. Application: Perfectly suitable for off road, powersports, marine, boat,yacht, trailers, bus, heavy duty etc.
* Installation Guide: Total power will go to 600w at 12V, 1200W at 24V and the maximum current is 60A. The maximum output current of ground 1 & 2 is 30A, the maximum output current of ground 3-8 is 20A. The recommended connection method is to decrease the current gradually from ground 1 to ground 8.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
PN-SP8100B
-
Max. Current:
-
30A
-
Mechanical Life:
-
10000
-
Product Type:
-
Electronic Relay System
-
Led color:
-
Seven Colors LED Light
-
Input Voltage:
-
12-24V
-
DC Voltage:
-
30A
-
Rated Voltage:
-
12V 20A / 24V 10A
-
Total Power:
-
600W 12V/1200W 24V
-
The Max Current:
-
60A
-
Waterproof Rating:
-
IP65
-
Operating temperature:
-
-25°-+80°
-
Weight:
-
2.7kgs
Quick Details
-
Max. Voltage:
-
24V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DAIER
-
Model Number:
-
PN-SP8100B
-
Max. Current:
-
30A
-
Mechanical Life:
-
10000
-
Product Type:
-
Electronic Relay System
-
Led color:
-
Seven Colors LED Light
-
Input Voltage:
-
12-24V
-
DC Voltage:
-
30A
-
Rated Voltage:
-
12V 20A / 24V 10A
-
Total Power:
-
600W 12V/1200W 24V
-
The Max Current:
-
60A
-
Waterproof Rating:
-
IP65
-
Operating temperature:
-
-25°-+80°
-
Weight:
-
2.7kgs
Products Description
|
Item
|

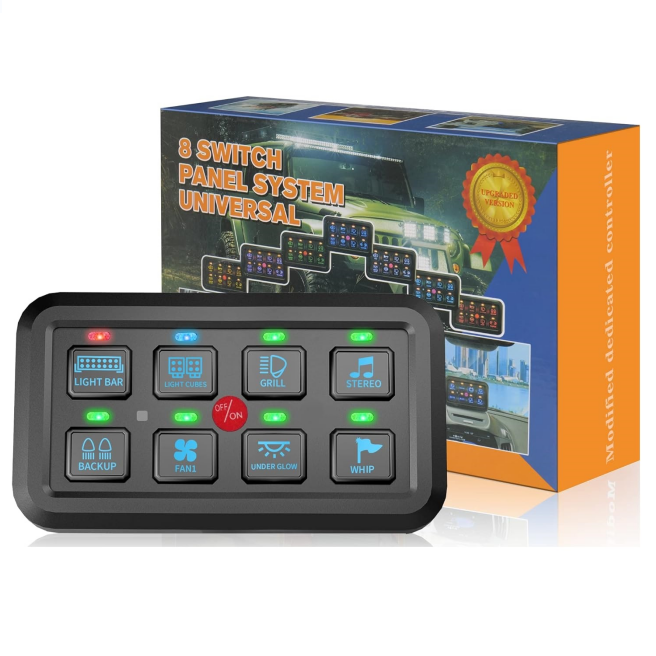

8 Gang Switch Panel Electronic Relay System with Circuit Control Box Waterproof Fuse Relay Box Wiring Harness Label Stickers
|
|
Input
|
DC 12V-24V
|
|
Input / Output Current
|
30A / 60A max. per circuit
|
|
Model
|
8 Gang Switch Panel Electronic Relay System
|
|
LED Display
|
Seven Colors
|
|
Broad Compalitity
|
Car, Boat, Marine, Motorcycle, Atv, Rv Etc
|
|
Package
|
8 Button Switch Panel*1
Circuit Control Box*1
60 Amp Circuit Breaker*1
Wiring Harness*1
Mounting Bracket Set*1
Back-up Fuse Replacement*6
Switch Labels*50
Strapping Tapes*10
Instruction*1
|
SP8100B
