Quick Details
Quick Details
-
Place of Origin:
-
Maharashtra, India
-
Certificate:
-
ISO9001-2008
-
Suitable gas:
-
Co2/lpg/air/propane/Acetylene/Argon/nitrogen
Features:
- Stainless Steel Diaphragm
- Standard 10 μm sintered bronze filter at inlet of main valve assembly
- Cleaned for Oxygen service
Specifications:
- Stainless Steel Diaphragm
- Standard 10 μm sintered bronze filter at inlet of main valve assembly
- 1.6 μm internal surface finish as standard
- Cleaned for Oxygen service
- Bubble tight shut-off
- Inlet pressure: 210 bar (3000 psi)
- Outlet range: 0 to 25 bar (360 psi)
- Supply pressure effect less than 0.05%
- Flow Coefficient: Cv 0.05
- Design Pressure: 1.5 times working pr.
- All connections: ¼” NPT (F)
- Seat: PTFE/PCTFE
- Max. Operating Temperature : PTFE – 66° C, PCTFE – 80° C
Additional Information:
- Minimum Order Quantity: 1 Unit
High pressure piston type cylinder regulator brass chromplated body. Inlet pressure gauge 0-280 kg/cm²Outlet pressure gauge 0-100 kg/cm² (as per requirement)
&
High pressure piston type cylinder regulator SS body. Inlet pressure gauge 0-280 kg/cm²Outlet pressure gauge 0-100 kg/cm² (as per requirement)
Athena manufacturers various kinds of Regulators. Athena Regulators have been designed to meet the demand of High Purity Corrosion Resistance Product Specially Suited for low level PPM Moisture

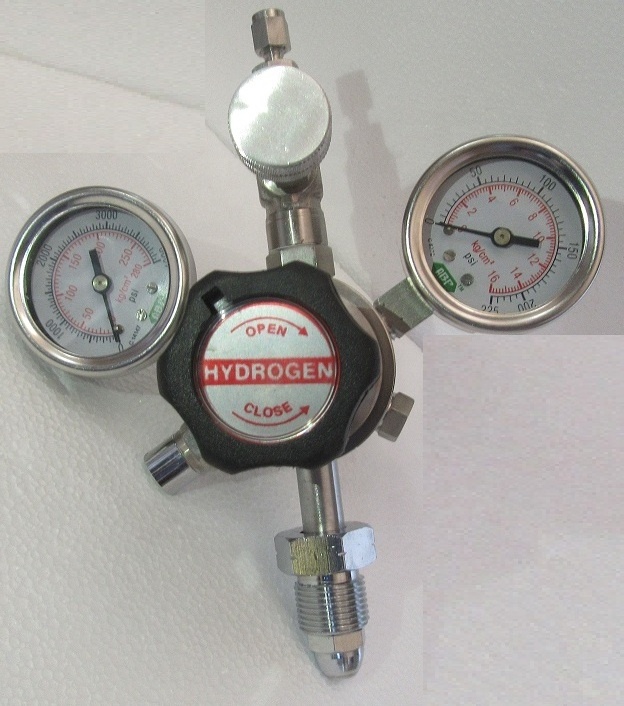

Two types of Cylinder Regulators available Brass Chrome Plated body with SS diaphragm and SS body with SS diaphragm.
Regulator consists of inlet & outlet pressure gauges. Inlet pressure gauge shows the total pressure of cylinder and outlet pressure gauge shows regulated pressure.
High pressure piston type Regulator & Regulators for corrosive gases like Ammonia, Clorine, etc. are also available.
Inlet pressure range: 0 - 240 kg/cm²
Outlet pressure range: 0 - 14 kg/cm² in diaphragm type
Outlet pressure range: 0 - 40, 0 - 70, 0 - 100 kg/cm² in piston type
Additional Information:
- Minimum Order Quantity: 1 Unit
