Quick Details
-
Productivity:
-
22M³/H
-
Place of Origin:
-
China
-
Brand Name:
-
Taizhe
-
Weight:
-
1000 kg
-
Dimension(L*W*H):
-
1700*750*1200mm
-
Engine type:
-
Motor power
-
Warranty period:
-
1 year
-
Vertical conveying distance:
-
20-120m
-
Maximum horizontal conveying distance:
-
500m
-
productivity:
-
22m3
Quick Details
-
Power Type:
-
Electric
-
Max. vertical conveying distance:
-
120M
-
Max. horizontal conveying distance:
-
500M
-
Productivity:
-
22M³/H
-
Place of Origin:
-
China
-
Brand Name:
-
Taizhe
-
Weight:
-
1000 kg
-
Dimension(L*W*H):
-
1700*750*1200mm
-
Engine type:
-
Motor power
-
Warranty period:
-
1 year
-
Vertical conveying distance:
-
20-120m
-
Maximum horizontal conveying distance:
-
500m
-
productivity:
-
22m3

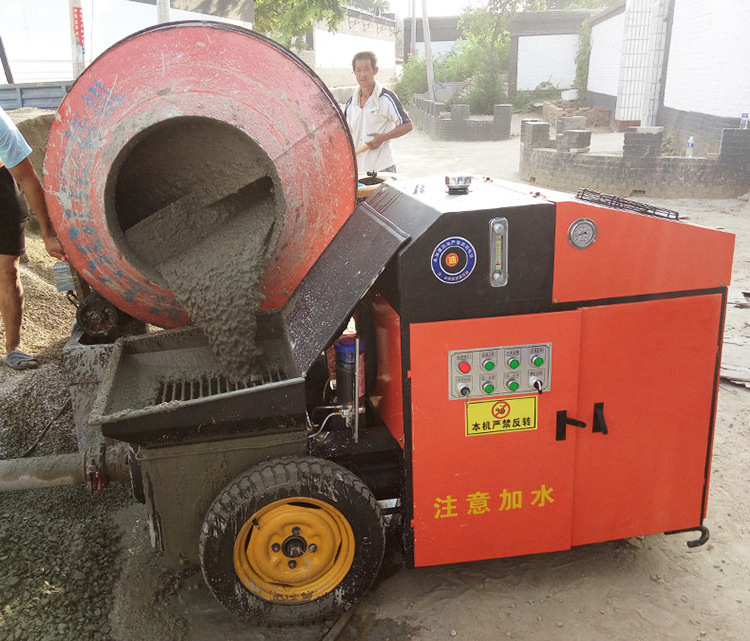

Mobile Diesel Engine Trailer Mounted Concrete Mixer Pump
Concrete pump: pump, hydraulic system and pipeline, it can convey ready concrete under pressure through the pipeline continuously and it mainly used in the building, bridge and tunnel construction.
|
No. |
ITEM |
UNIT |
TZ-30 |
TZ-40 |
TZ-40D |
|
1 |
Processing Aggregate sizes |
mm |
≤30 |
≤30 |
≤40 |
|
2 |
Capacity |
m³/h |
15 |
25 |
40 |
|
3 |
Vertical transport distance |
m |
25mts |
90mts |
100mts |
|
4 |
Horizontal transport distance |
m |
90mts |
180mts |
200mts |
|
5 |
Hopper height |
mm |
1100 |
1100 |
1200 |
|
6 |
Working pressure |
mpa |
10 |
12.5 |
12 |
|
7 |
Diesel engine power |
kw |
46 |
66 |
75 |
|
8 |
Dimension |
mm |
3500x1300x1650 |
4250x1620x1620 |
4550x1830x1720 |
|
9 |
Total Weight |
kg |
1650 |
2600 |
3200 |
|
10 |
Use condition |
|
Size ≤30
|
Size ≤30
|
Big |
