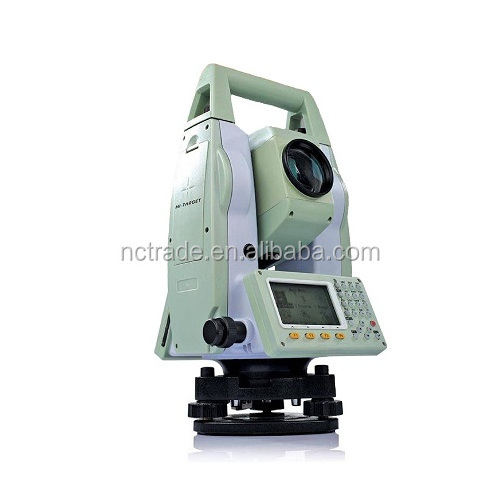

High performance Hi target total station HTS 420R station total

High performance Hi target total station HTS 420R station total

FOB Reference Price: Get Latest Price

≥1 Pieces

US $1350

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Name for reflectorless total station:: HTS-420R Total Station

Module for reflectorless total station:: HTS-420R

Reflectorless distance:: 350m, 600m (optional)

Single prism distance:: 3000m

Triple prism distance:: 6000m

Magnification:: 30X

Reflectorless accuracy:: 3mm+2ppm

Accuracy with reflector:: 2mm+2ppm

Angle accuracy:: 2"

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: Hi-target

Model Number:: HTS 420R

Name for reflectorless total station:: HTS-420R Total Station

Module for reflectorless total station:: HTS-420R

Reflectorless distance:: 350m, 600m (optional)

Single prism distance:: 3000m

Triple prism distance:: 6000m

Magnification:: 30X

Reflectorless accuracy:: 3mm+2ppm

Accuracy with reflector:: 2mm+2ppm

Angle accuracy:: 2"

Key features

1) Dual-aixs compensator

2) 600m reflectorless measuring range

3) Big data storage and bluetooth connection

Detail advantage functions

Dual-axis Compensation

The HTS-420R is configured with advanced dual-axis compensator for auto error elimination and auto

accuracy compensation.

Absolute Encoding

The absolute encoding disk ensures high accuracy, efficiency and stable performance. No need to initialize but

to measure the angle immediately as the HTS-420R is turned on. The previous data and setting are

automatically saved. No data or setting is missed even though the HTS-420R is power-off unexpectedly.

High-performance MCU

Based on ARM Cortex™-M processor, the SMT32 MCU enabling the HTS-420R extra high processing speed

and low-power consumption.

Diagonal Eyepiece

Support diagonal eyepiece for observations at steep line of sight.

Calibration Software

Real-time diagnosis can be run with HI-TARGET Calibration software, to find out the problem quickly to ensure trouble-free operation.

New Data Transfer Software

The newly easy-to-use data transfer software supports different type of output data format, which can be used in AutoCAD or other brands’post processing software.

Specification

Hi-target HTS-420R Total Station
Angle Measurement
Measurement Method:	Absolute Encoding
Minimum Readout:	1″/5″/10″(0.3mgon/1.5mgon/3mgon)optional
Accuracy1	2”
Distance Measurement (with Reflector)
Single Prism	3000m (9,842ft.) under good condition3
Three Prisms	6000m (19,685ft.) under good condition3
Reflective Sheet	800m (2,624 ft.)
Accuracy	2 mm +2ppm
Measuring Time (Fine/Quick/Tracking)	1.5s/1s/ 0.5s
Distance Measurement (Reflectorless)
Reflectorless2 Range	350m, 600m
Single Prism	>7500m (24606ft.)
Accuracy	3mm+2ppm
Measuring Time	1.5s
Telescope
Magnification	30X
Field of View	1°30′ (2.7m at 100m)
Minimum Focusing Distance	1.2m
Reticle	Illuminated
Compensator
System	Dual-axis (optional)
Working Range	±3′
Setting Accuracy	1″
Bluetooth
Interface	Standard RS232, SD card4, USB pen drive, mini-USB
Internal Data Memory	Approx. 20,000 Points
Data Format	ASCII
Operation
Operation system	Real-time Operating System
Display	High resolution backlight black and white display with contrast adjustment/ Graphics: 280 x 160 pixels / Character: 6 lines x 25 characters
Keyboard	2 sides Alphanumeric backlit crystal keyboard
Laser Plummet
Type	Laser point, 4 brightness levels adjustment / Optical plummet (optional)
Centering Accuracy	1 mm at 1.5m instrument height
Power Supply
Battery Type	Rechargeable Li-ion battery
Voltage/Capacity	ZBA-400: 7.4V (DC) / 3000mAh
Operating Time With ZBA-400	Optimal 16 hours5 (Continuous angle measurement every 30 seconds) / 10 hours (typical)
Measuring Times	Approx. 12000 times
Environmental
Operating Temperature	-20 ℃ ~+ 50 ℃ ( -4 ℉ to +122 ℉ )
Storage Temperature	-40 ℃ ~+ 70 ℃ (-40 ℉ to +158 ℉ )
Dust&Water Proof (IEC60529 Standard)/Humidity	IP54, 95%, non-condensing

Phisical Charactors:

Weight: Appprox. 5.5KG(12.1lb)

Product display:

Our Services

Our warranty policy:

1. For GNSS products we offer one year and half a year warranty. For optical instruments(total station, theodolite, Level), we offer 1 years warranty. For accessories we offer 6 months warranty.
2.Product in warranty please send us photos to show the problem . And then we will decide to send you parts or you send the instrument back to us to repair.We are responsible for the double-run freight and other cost.Please make sure to contact us first instead of sending the damaged parts directly to us.
3.For problem out of the warranty period or warranty liability,we will judge the problem and quoted for you.You need to pay double-run freight and the maintenance cost.
4.For all instrument we provide life-long technical support.

Remark: Improper use of the instrument and man-made damage of the instrument is not covered in warranty liability.Warranty only aimed at the problem caused by the product quality .
Our Technical Support:
Before any shipment we will have quality check person to give the instrument a careful quality check (software installation and test for GNSS product).
For all GNSS and optical instrument, you will get the user manual and operating video.
For green hand users we offer free online training (especially for GNSS products), regarding receiver configuration, survey software on controller and post process software operation. If customer needed we also offer charged on site training.
For all of the products we offer lifelong and 24 hours technical support.
Special services:
If you have a survey project, and you are finding a most cost-effective and efficient way to handle it. Just tell us your project specification, we will feedback with professional suggestions as reference.
We offer GNSS raw data process and CAD drawing for survey field end users.
If you have some broken instrument, and want to re-pick up into normal use, send it to use we offer professional repair service for all kinds of survey equipment.
