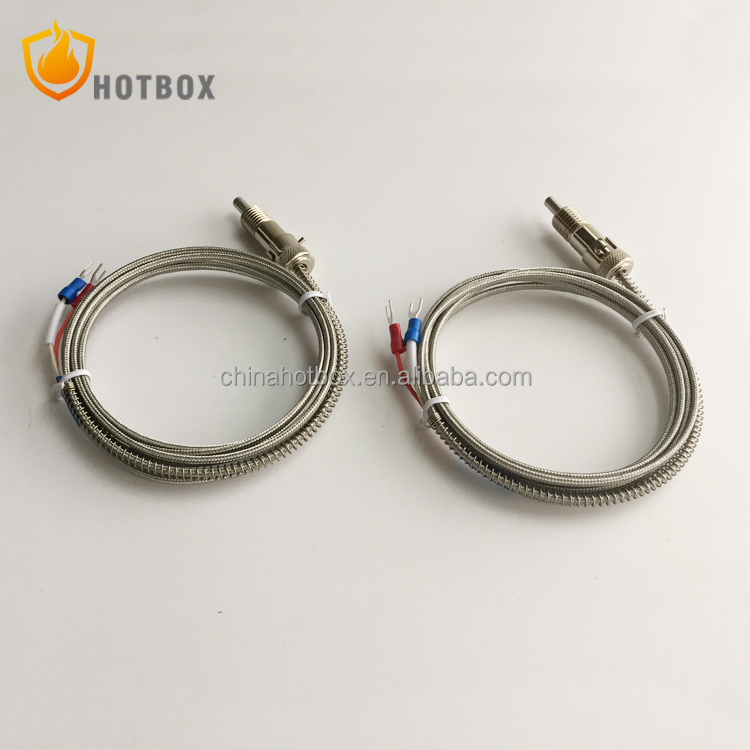

K J E T type thermocouple with bayonet adjusted spring prbe 4x30mm for injection molding machine PVC plastic extruder machine

K J E T type thermocouple with bayonet adjusted spring prbe 4x30mm for injection molding machine PVC plastic extruder machine

FOB Reference Price: Get Latest Price

≥10 Pieces

US $3.8

≥1000 Pieces

US $2.2

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Element material:: K/J/E/T/PT100

Mounting:: Thread/flange/none

Pairs quantity of element:: Simplex/duplex

Size:: Customized

Function:: Temperature sensor

Certificate:: CE ROHS

Types of terminal box:: Anti-spray/water-proof

Name:: extruder machine thermocouple

Quick Details

Place of Origin:: Jiangsu, China

Type:: K/J/E/T/PT100

Probe material:: Stainless steel

Element material:: K/J/E/T/PT100

Mounting:: Thread/flange/none

Pairs quantity of element:: Simplex/duplex

Size:: Customized

Function:: Temperature sensor

Certificate:: CE ROHS

Types of terminal box:: Anti-spray/water-proof

Name:: extruder machine thermocouple

Product Description

Thermocouples are used in industry for measuring the temperature of gases,liquids or solid surfaces etc.,It's usually assembled with indicators,recorders or computers.

A thermocouple consists of two dissimilar metals joined together at one end.When the junction of the two metals be cooled or heated and a voltage is produced that can be correlated back to the emperature.The calibrations are K,N,E,J,T,S,R,B.Each calibration has a different temperature range.

Working Principle:

Thermocouple is composed of temperature sensor and signal converter, signal converter is installed in the junction box of temperature sensor, temperature sensor produce resistance or potential effects made by the temperature affect, via transformation to create a differential voltage signal. The signal via the amplifier amplification, then through voltage and current transformation, output 4-20 mA current signal corresponding to the range.

Features:

Easy assembly and convenient for replacement;
Spring thermal element with good shock-proof performance;
Wide mesuring range (0~1600 degree Celsius);
High mechanical strength and good pressure-resistant performance

Measuring junction structure & advantages:

Grounded

1 rapid response

2 no suitable in case with interference

Ungrounded

1 It responses more slowly than that of the case-connected type.

2 Long service life

3 Resistance to electric interference

Exposed

1 rapid response

2 suitable to measure the temperature of gas

3 poor mechanical strength in contact with other measuring structures

Model:

Ref No.	WR	Temp
Thermal element materials	B: PtRh ₃₀ -Pt ₆ R: PtRh ₁₃ -Pt S: PtRh ₁₀ -Pt N: NiCrSi-NiSi K: NiCr-NiSi E: NiCr-CuNi J: Fe-CuNi T: Cu-CuNi	0~1600C 0~1300C 0~1300C 0~1000C 0~900C 0~600C 0~500C 0~350C
Ref No.	WZP	Temp
	PT100 PT1000 CU50	-200~+650C -200~+650C -200~+650C
Pairs quantity of sensor wire	Simplex Duplex
Ways of Mounting & Fixing	1: without fixing device 2: fixed thread 3: movable flange 4: fixed flange 5: right-angle movable flange 6: fixed thread in wimble shape protection tube
Types of connections box	2: anti-spray (Protection class: IP65) 3: water-proof (Protection class: IP55)
Types of sensor end	G: variable section K: sheathed elements T: flexible sheathed elements

Measuring Range and Accuracy:

Conductor material	Calibration	Accuracy
		ClassⅠ		ClassⅡ
		Accuracy	Temperature range( °C )	Accuracy	Temperature range( °C )
NiCr-NiSi	K	±1.5°C Or ±0.4%\|t\|	-40-1000	±2.5°C or ±0.75%\|t\|	-40-1000
NiCr Si-NiSi	N		-40-1100		-40-1200
NiCr-Konstantan	E		-40-800		-40-800
Fe-Konstantan	J		-40-750		-40-750
Cu-Konstantan	T	±0.5°C or ±0.4%\|t\|	-40-350	±1°C or 0.75%\|t\|	-40-350
PtRh ₁₀ -Pt	S	±1°C or ±[1+ ( t-1100 ) × 0.003]	0-1600	±1.5°C Or ±0.25%\|t\|	0-1400
PtRh ₁₃ -Pt	R	±1°C or ±[1+ ( t-1100 ) × 0.003]	0-1600		0-1400
PtRh ₃₀ -PtRh ₆	B	——	——		600-1700
