Quick Details
-
Brand Name:
-
Hiyoung
-
Voltage:
-
380V, 380V 50HZ
-
Power:
-
7-8.5kw, 7-8.5kw
-
Dimension(L*W*H):
-
2300X800X700mm
-
Weight:
-
1100 kg, 1100kg
-
Features:
-
Low cost fast construction
-
Name:
-
Concrete Precast Floor Slab Making Machine
-
Forming Speed:
-
1.3-1.5m/min
-
Longest Board Length:
-
4.2m, 6m
-
External Dimensions:
-
2100*800*800
-
Raw materials:
-
Water, Cement, Sand, Stone
-
Strength:
-
Wear Resistant Alloy
-
Maximum load capacity:
-
8.11-10.24KN/m2
Quick Details
-
Application:
-
Building Materials
-
Production Capacity:
-
1600mm/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Hiyoung
-
Voltage:
-
380V, 380V 50HZ
-
Power:
-
7-8.5kw, 7-8.5kw
-
Dimension(L*W*H):
-
2300X800X700mm
-
Weight:
-
1100 kg, 1100kg
-
Features:
-
Low cost fast construction
-
Name:
-
Concrete Precast Floor Slab Making Machine
-
Forming Speed:
-
1.3-1.5m/min
-
Longest Board Length:
-
4.2m, 6m
-
External Dimensions:
-
2100*800*800
-
Raw materials:
-
Water, Cement, Sand, Stone
-
Strength:
-
Wear Resistant Alloy
-
Maximum load capacity:
-
8.11-10.24KN/m2

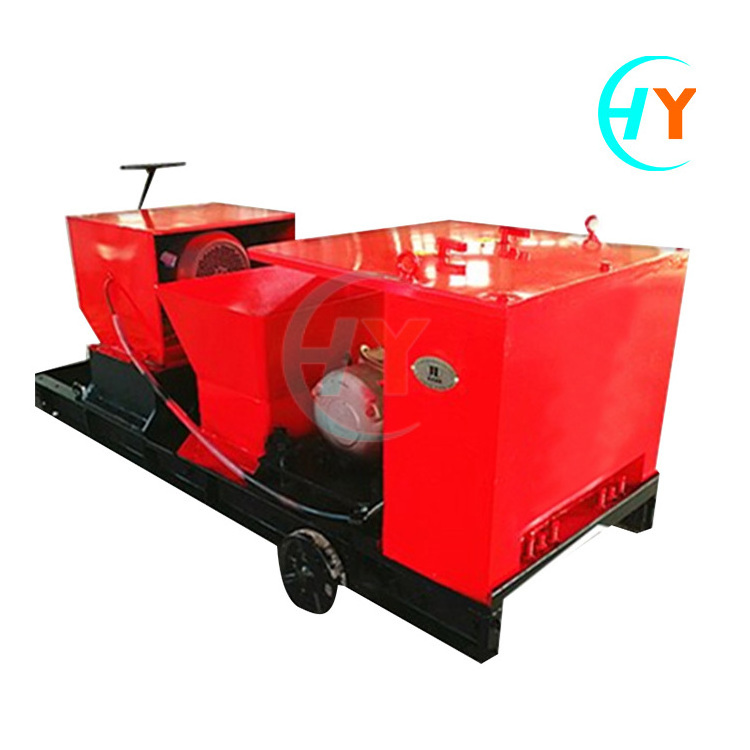

Concrete Hollow Roof Slab Moulding Forming Machine High Quality Prestressed Concrete Slab Machine
Specification
|
Model (thickness-width mm)
|
External dimensions（cm）
|
Weight（kg）
|
Total power (Kw)
|
Forming speed (m/min)
|
The longest board length (m)
|
Maximum load capacity (KN/m2)
|
Number of holes/shape
|
|
HY120-600
|
210X80X80
|
1100
|
8.5
|
1.3-1.5
|
6
|
8.86
|
5 /Round Hole
|
|
HY120-500
|
210X80X80
|
1100
|
7
|
1.3-1.5
|
6
|
10.24
|
4 /Round Hole
|
Product Description
Extrusion-propulsion production method
low labor intensity,
High production efficiency
single reinforced member
Stressed bar is rigid stranded wire
Strong toughness
high strength
Better than other similar plates
Hollow board can be without surface layer material
It can also make fake brick, dry sticky stone
and other finishes on the surface of the board
High bearing capacity
Large span
Superior seismic performance
Flame retardant
Thermal insulation
Sound insulation
