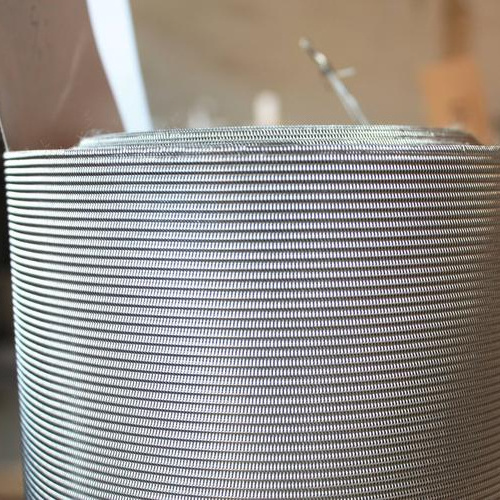

Twill Dutch Weave is produced with the weft wires packed together in the same principle as Plain Dutch Weave but with double the
number of weft wires woven in an over two, under two pattern.
The weft wires overlie each other creating a sinuous path of filtration. The cloth is very robust with a smooth surface and the finer weft wires and smaller pore sizes provide excellent flow characteristics.
The finest filtration rates are obtained with this type of weave.
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
gsy
-
Delivery Time:
-
3-7 days
-
Product name::
-
Round Steaming Rack
-
Technology:
-
Oven or welded/Baking paint
-
Delivery time:
-
25-40 days (According to customers' quantities)
-
Sample Time:
-
Usually 5-7 days
-
wire diameter::
-
0.4mm,0.3mm,0.2mm,0.1mm,0.06mm
-
Woven type::
-
Plain Weave,twill weave,dutch weave
Quick Details
-
Material:
-
STAINLESS STEEL WIRE
-
Type:
-
Weave Wire Mesh
-
Application:
-
Screen
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
gsy
-
Delivery Time:
-
3-7 days
-
Product name::
-
Round Steaming Rack
-
Technology:
-
Oven or welded/Baking paint
-
Delivery time:
-
25-40 days (According to customers' quantities)
-
Sample Time:
-
Usually 5-7 days
-
wire diameter::
-
0.4mm,0.3mm,0.2mm,0.1mm,0.06mm
-
Woven type::
-
Plain Weave,twill weave,dutch weave
Product Description
The plain Dutch weave is a type of weave with larger warp wires than the weft wires.
The weave is made up of a limited number of warp wires interwoven with the maximum number of weft wires, thereby producing a
stable and strong cloth. The plain Dutch weave has a high filtering level and high pressure load resistance.
In all types of Dutch weaves, the sum produced by multiplying the number of weft wires of a certain measurement with their
diameter results, in theory, in a specific opening. As the wires are positioned together during the weaving process in a
particular manner, the size of the opening cannot be calculated in the usual way.
The weave is made up of a limited number of warp wires interwoven with the maximum number of weft wires, thereby producing a
stable and strong cloth. The plain Dutch weave has a high filtering level and high pressure load resistance.
In all types of Dutch weaves, the sum produced by multiplying the number of weft wires of a certain measurement with their
diameter results, in theory, in a specific opening. As the wires are positioned together during the weaving process in a
particular manner, the size of the opening cannot be calculated in the usual way.
Specification
|
|
Dutch Wire Cloth Plain Woven
|
|
|
|
|
Gauge No.
|
Mesh/Inch
(Warp x Weft) |
Wire Diameter
(Warp x Weft) |
Reference Aperture (um)
|
Weight/sq
(kg) |
|
32#
|
8 x 62
|
0.63mm x 0.45mm
|
300
|
5.42
|
|
40#
|
10 x 79
|
0.50mm x 0.355mm
|
250
|
3.16
|
|
48#
|
12 x 64
|
0.58mm x 0.40mm
|
280
|
2.9
|
|
55#
|
14 x 88
|
0.40mm x 0.30mm
|
180
|
2.54
|
|
76#
|
19 x 140
|
0.315mm x 0.20mm
|
140
|
1.88
|
|
80#
|
20 x
|
0.35mm x 0.20mm
|
-
|
3.6
|
|
95#
|
24 x 300
|
0.355mm x 0.25mm
|
120
|
2.45
|
|
100#
|
25 x 140
|
0.28mm x 0.20mm
|
100
|
1.95
|
|
120#
|
30 x 150
|
0.25mm x 0.18mm
|
80
|
1.68
|
|
140#
|
35 x 175
|
0.224mm x 0.16mm
|
71
|
1.52
|
|
160#
|
40 x 200
|
0.20mm x 0.14mm
|
60
|
1.40
|
|
180#
|
45 x 250
|
0.16mm x 0.112mm
|
56
|
1.09
|
|
200#
|
50 x 250
|
0.14mm x 0.11mm
|
53
|
1.04
|
|
220#
|
55.5 x 280
|
0.14mm x 0.10mm
|
50
|
0.92
|
|
240#
|
65 x 330
|
0.11mm x 0.08mm
|
36
|
0.71
|
|
280#(1)
|
70 x 350
|
0.11mm x 0.08mm
|
35
|
0.72
|
|
280#(2)
|
70 x 385
|
0.11mm x 0.07mm
|
32
|
0.75
|
|
300#
|
78 x 700
|
0.11mm x 0.08mm
|
30
|
1.39
|
|
315#(1)
|
80 x 400
|
0.10mm x 0.065mm
|
40
|
0.62
|
|
315#(2)
|
80 x 600
|
0.10mm x 0.06mm
|
-
|
-
|
|
315#(3)
|
80 x 800
|
0.15mm x 0.04mm
|
-
|
|
|
|
Dutch Wire Cloth Twill Woven
|
|
|
|
||||
|
Gauge No.
|
Mesh/Inch
(Warp x Weft) |
Wire Diameter
(Warp x Weft) |
Reference Aperture (um)
|
Weight/sq
(kg) |
||||
|
320#
|
81 x 780
|
0.10mm x 0.07mm
|
30
|
1.22
|
||||
|
354#
|
90 x 550
|
0.12mm x 0.05
|
-
|
-
|
||||
|
360#
|
91 x 787
|
0.10mm x 0.10
|
25
|
1.24
|
||||
|
400#
|
101 x 900
|
0.10mm x 0.10
|
20
|
1.22
|
||||
|
472#
|
120 x 400
|
0.10mm x 0.10
|
-
|
-
|
||||
|
500#
|
127 x 1100
|
0.07mm x 0.07
|
17
|
0.81
|
||||
|
630#
|
160 x 1500
|
0.063mm x 0.063
|
15
|
0.62
|
||||
|
650#(1)
|
165 x 400
|
0.017mm x 0.017
|
-
|
-
|
||||
|
650#(2)
|
165 x 600
|
0.017mm x 0.017
|
-
|
-
|
||||
|
650#(3)
|
165 x 800
|
0.017mm x 0.017
|
25
|
-
|
||||
|
650#(4)
|
165 x 1100
|
0.017mm x 0.017
|
-
|
-
|
||||
|
650#(5)
|
165 x 1400
|
0.017mm x 0.017
|
16
|
0.76
|
||||
|
685#
|
174 x `700
|
0.063mm x 0.063
|
13
|
0.61
|
||||
|
787#(1)
|
200 x 600
|
0.071mm x 0.071
|
-
|
-
|
||||
|
787#(2)
|
200 x 800
|
0.071mm x 0.071
|
-
|
-
|
||||
|
787#(3)
|
200 x 1400
|
0.071mm x 0.071
|
12
|
0.8
|
||||
|
795#
|
202 x 1760
|
0.05mm x 0.05
|
10
|
0.6
|
||||
|
850#
|
216 x 1860
|
0.045mm x 0.045
|
9
|
-
|
||||
|
1000#
|
254 x 2000
|
0.04mm x 0.04
|
8
|
0.5
|
||||
|
1125#
|
285 x 2235
|
0.036mm x 0.036
|
7
|
-
|
||||
|
1228#
|
312 x 2100
|
0.035mm x 0.035
|
-
|
-
|
||||
|
1250#
|
318 x 2235
|
0.036mm x 0.036
|
-
|
-
|
||||
|
1280#
|
325 x 2300
|
0.035mm x 0.035
|
5
|
0.45
|
||||
|
1575#
|
400 x 33100
|
0.035mm x 0.035
|
3
|
-
|
||||
|
Roll width: 1-1.6m
|
|
|
|
|
||||
