Quick Details
-
Model Number:
-
TSH
-
Product name:
-
temperature controller
-
Color:
-
white
-
Application:
-
Freezers,motor starting,refrigeration equipment
-
Type:
-
HVAC Systems
-
Model:
-
TSH160,TSH160HM,TSH160LHM
-
Environment temperature:
-
-20°C - 70°C
-
Wire connection:
-
diameter of wire entrance hole 15mm
-
current:
-
20A,15A,72A
-
Certification:
-
UL
Quick Details
-
Warranty:
-
consult the seller
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LEFOO
-
Model Number:
-
TSH
-
Product name:
-
temperature controller
-
Color:
-
white
-
Application:
-
Freezers,motor starting,refrigeration equipment
-
Type:
-
HVAC Systems
-
Model:
-
TSH160,TSH160HM,TSH160LHM
-
Environment temperature:
-
-20°C - 70°C
-
Wire connection:
-
diameter of wire entrance hole 15mm
-
current:
-
20A,15A,72A
-
Certification:
-
UL

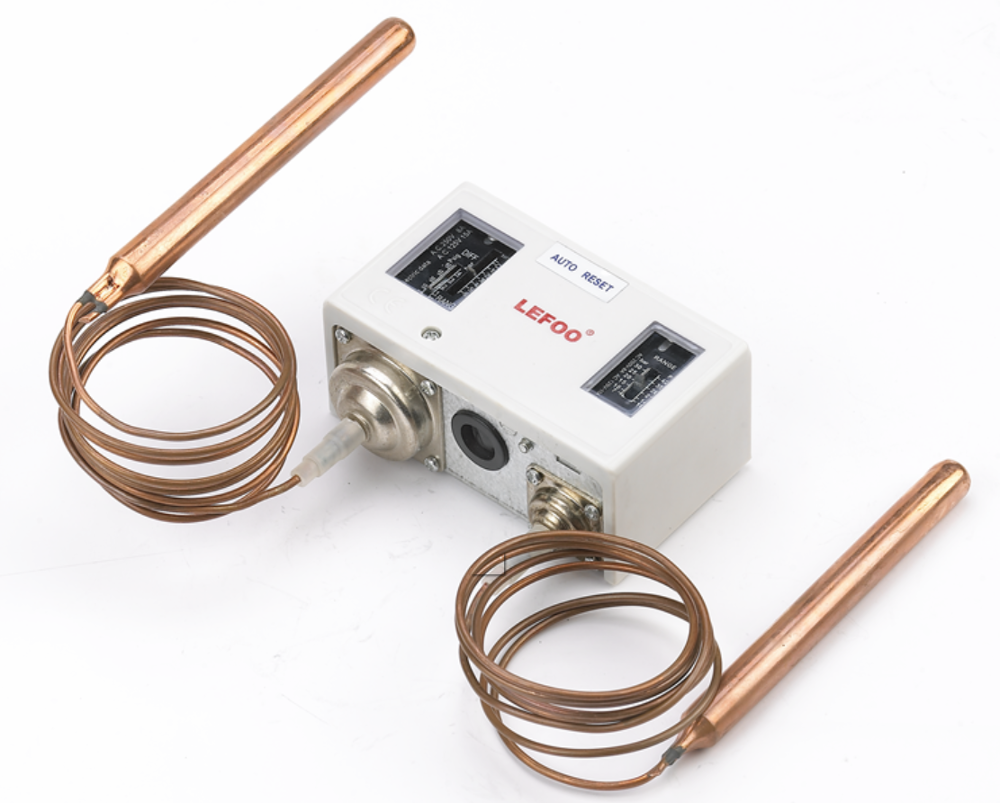

1. Product Pictures:
2. Product Specifications:
TSH is dual temperature controller with two independent temperature control functions. It’s used in refrigeration equipment to prevent high temperature of compressor’s discharge, at the same time to ensure proper temperature of compressor oil. One of high temperature thermo-bulb (HT) is put in pipe of compressor discharge, another one (OIL) is in compressor’s oil sump. Protective shutdown will be performed when any one of thermo-bulbs is over temperature limit.
Specification
|
Model |
Low side |
High side |
||||
|
Temperature setting rang |
Differential temperatureadjustable range |
The highest temperature of thermo-bulb |
Temperature setting range |
Differential temperatureadjustable range |
The highest temperature of thermo-bulb |
|
|
TSH160 |
50℃~110℃ |
10℃~30℃ |
130℃ |
80℃~160℃ |
≤15℃ |
180℃ |
|
TSH160HM |
50℃~110℃ |
10℃~30℃ |
130℃ |
80℃~160℃ |
Manual reset |
180℃ |
|
TSH160LHM |
50℃~110℃ |
Manual reset |
130℃ |
80℃~160℃ |
Manual reset |
180℃ |
Environment temperature: -20~70℃
Wire connection:diameter of wire entrance hole 15mm
Electrical Rating
|
Rated Voltage(V) Rated Current(A) |
A.C.110 |
A.C.220 |
|
|
Non-induced current |
20A |
10A |
|
|
Induced current |
Full load current |
15A |
8A |
|
Instantaneous current |
72A |
||
3. Product Dimensions(mm) :
4. Production Lines:
5. Patens:
6. Quality Control:
7. Why choose us?
25 patents
45 products were certified with UL,CSA,VDE,CCC and CE
50 engineers teamed for R&D
Coorperation experience with member in fortune global 500
8. LEFOO Exhibitions:
2019. 3 Acrex India
2019. 1 Ahr Expo
2018. 6 Aquatech Shanghai
2018. 4 Canton Fair
2018. 4 China Refrigeration show
2018.3 MCE Milano
2018.1 AHR Chicago
9. Packing and shipping:
If you are willing to know more
details, pls contact me freely!
