Quick Details
-
Weight:
-
330 KG
-
Product name:
-
High Precison Seedling Planting Machine
-
Function:
-
Seed Vegetable
-
Name:
-
Agricultural Manual Seeder
-
Keyword:
-
Bean Seeder Machine
Quick Details
-
Number of Rows:
-
2, 9, 10
-
Place of Origin:
-
France
-
Brand Name:
-
corn planter
-
Weight:
-
330 KG
-
Product name:
-
High Precison Seedling Planting Machine
-
Function:
-
Seed Vegetable
-
Name:
-
Agricultural Manual Seeder
-
Keyword:
-
Bean Seeder Machine
|

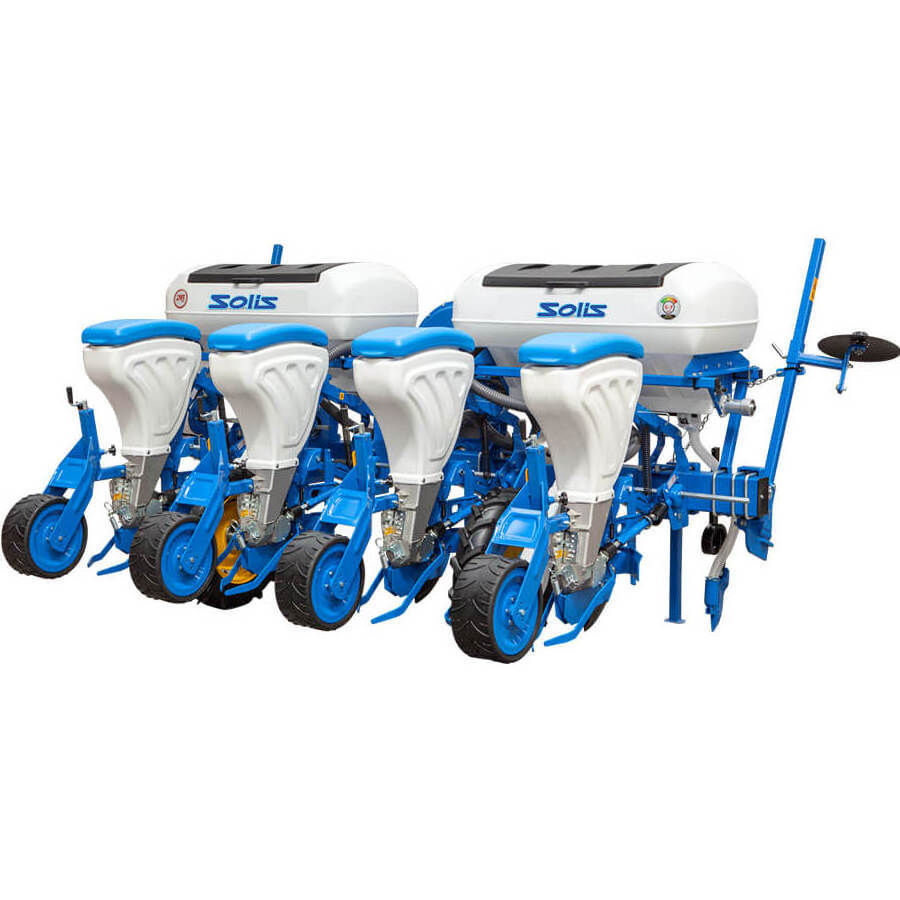

4rows small corn planter seeder
*Sowing by weight,no damage to seeds. *High precise seeds clearance,evenly sowing stable,seeds saving and less thin out seeding. *Mainly for sowing corn,can also sowing bean,cotton seeds,peanut and sunflower seeds.It has multifunction .The machine can spread the basis fertilizer during planting ,and can complete the suppression at the same time. *Feed outlet is driven by gear.There is an anti-reverse mechanism at the inside of driving gear to avoid troubles arising from machine reverse turning. *May adjust rows spacing by adjusting different driven gears.Can pick out the whole disc cover when clear the seeds. *Seeds clearance is convenient and thoroughly. |
Main specifications:
| Model | 2BCYF-3 | 2BCYF-4 | 2BCYF-5 | 2BCYF-6 | |||
| Driven power(hp) | 12~30 | 20-50 | 50-80 | 50-80 | |||
| Sowing seeds depth(mm) | 30-50 | ||||||
| Empty hole rate of seeds(%) | ≤2% | ||||||
| Sowing seeds quantity(pc/hole) | 1~3 | ||||||
| Working efficiency(ha/ar) | 0.2-0.3 | 0.4-0.5 | 0.65-0.85 | 0.8-1 | |||
| Theoretical rows spacing(cm) | 15.24,19.05,5.4,30.48 | ||||||
| Overall dimension(L×W×H)(mm) | 1330×1665×1000 | 1330×2015×1000 | 1330×2550×1000 | 1330×3100×1000 | |||
| Weight(kg) | 180 | 230 | 320 | 420 | |||
| Rows | 3 | 4 | 5 | 6 | |||
| Theoretical plant spacing(mm) | 200,250,310,380 | ||||||
| Fertilizer depth(mm) | 60-80 | 60-80 | 60-80 | 60-80 | |||
| Break seeds rate% | 0 | 0 | 0 | 0 | |||
| Capacity of fertilizer tank (L) | 16×3 | 16×4 | 16×5 | 16×6 | |||
| Capacity of seeds tank (L) | 9×3 | 9×4 | 9×6 | 9×6 | |||
| Min ground clearance during transporting(mm) | 300 | ||||||
