Quick Details
-
Brand Name:
-
hance
-
Model Number:
-
HCPT-H
-
Accuracy Class:
-
0.05 level
-
Working scope:
-
80%~120%
-
Measurement errors:
-
≤5.0%
-
Power consumption:
-
20VA
-
Certificate:
-
CNAS
-
Test range:
-
6kV-220kV
-
Secondary load:
-
0-300VA
-
Weight:
-
12kg
-
Dimension(mm):
-
470 (L)*370(W)*200(H)(mm)
-
Color:
-
Black
Quick Details
-
Warranty:
-
1 year
-
Power:
-
Electronic
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
hance
-
Model Number:
-
HCPT-H
-
Accuracy Class:
-
0.05 level
-
Working scope:
-
80%~120%
-
Measurement errors:
-
≤5.0%
-
Power consumption:
-
20VA
-
Certificate:
-
CNAS
-
Test range:
-
6kV-220kV
-
Secondary load:
-
0-300VA
-
Weight:
-
12kg
-
Dimension(mm):
-
470 (L)*370(W)*200(H)(mm)
-
Color:
-
Black
Product overview: The device was developed with high-end testing technology, large-scale electronic circuit design and accord with national related protocol . It has solved the of big working intensity,trival operation on-site test of current transformer, voltage transformer. Meanwhile the product has a reliable performance,and the function is strong.
Technical indicators
|
Test range |
6kV/100V 10kV/100v 20kV/100V 35kV/100V 6kV/√3 /100V/ √3 / 10kV/ √3 / /100v/ √3 / 20kV/ √3 / /100V/ √3 / 35kV/ √3 / /100V/ √3 / 66kV/ √3 / /100V/ √3 / 110kV/ √3 / /100v/ √3 / 220kV/ √3 / /100V/ √3V |
|
Tested voltage transformer work scope |
80%~ 120 % |
|
Second load |
0.0VA~ 300VA , COSφ = 0.1 ~ 1.0 |
|
Be tested voltage transformer accuracy range |
1.0, 0.5 , 0.2 , 0.1 |
|
Resistance, admittance measurement errors |
≤5.0% |
|
Measurement range |
R: 0.00Ω ~ 5.0Ω Y: 0.000mS ~ 200.0mS |
|
Basic error |
In-phase component: X=±( X×2%+Y×2% ) ±2words Y=±( X×2%+Y×2%×34.38 ) ±5words “X”, “Y”—— display value of Instrument “5words”—— quantizing error of Instrument Batches: grade 1 Measurement range: f:0.0000%~ 200.0%δ:0.000′ ~ 999.9 Rated voltage: 100/3V, 100/ V, 100V |
|
Power consumption |
20VA |
|
Accuracy level: |
0.05 level |
|
Shape dimension(mm) |
470 (L)×370(W)×200(H) |
|
Weight (kg) |
12 |
Product features:
1. HCPT-H Voltage Transformer Field Tester with recursive method to measure voltage transformer error, as well as potential difference method to measure voltage transformer error function, convenient for carrying out calibration work of field metering device.
2. HCPT-H Voltage Transformer Field Tester without using Standard Voltage Transformer, Voltage Source, Load Box and Double Adjustable Control Box, using extremely simple test connection and operation to realize the voltage transformer test, greatly reduce work intensity and improve the work efficiency, convenient to carry out voltage transformer field test work.
3. The interior of HCPT-H Voltage Transformer Field Tester is equivalent to the measured voltage transformer with the same ratio of the standard voltage transformer, the accuracy can reach 0.02 level, measure accurately the ratio of measured voltage transformer and load error. Then combined with the impedance and admittance test results to deduce the transformer error.
4. Measurement range is wide, can reach to 6kV/100V~220kV/ √3 / V /100/ √3 / V.
5. It has the function of voltage transformer ratio, dc resistance and voltage load box test.
6. It has the function of double winding voltage transformer test, has two load boxes.
7. It adopts 640×480 high resolution and large screen liquid crystal display, has humanization interface and operation design, uses touch screen for auxiliary operation, make the operation more convenient and swift.
8. It adopts precise software algorithms, make the accuracy of measurement data improve further.
9. It has intelligent judgment external connection state, tips for wiring error, ratio, polarity error and so on.
10. It breaks up the whole of test data automatically, and judges whether ultra difference, ultra difference data appears orange, and shows ultra difference in the lower right corner of the window, the transformer data characteristics is intuitive and clear.
11. Issue directly field verification conclusion, qualified or ultra difference.
12. Large memory can store up to 1000 field test data.
13. With printer, can print test data field.

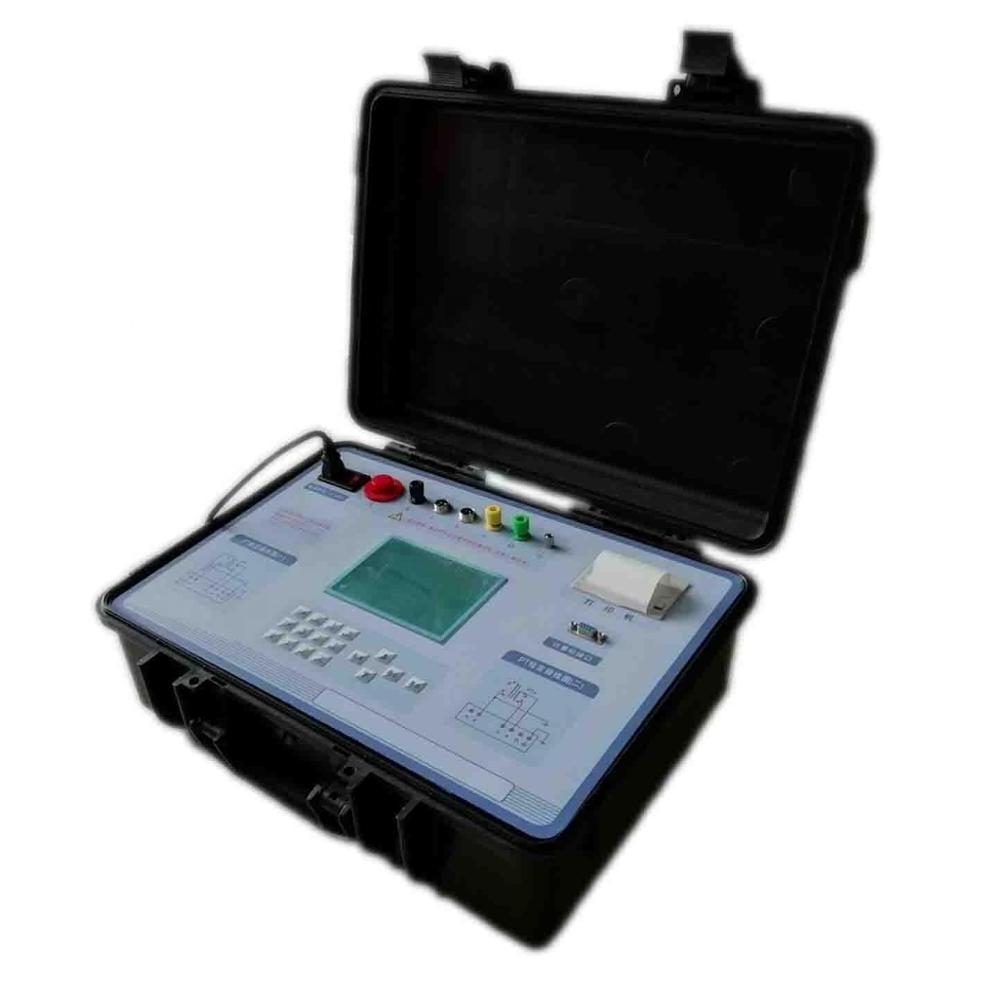

14. It adopts engineer plastic mold box to avoid shock and pressure, secure the safety of field operators and equipment.
