Product name:
-
Stainless Steel Wire Rope Mesh Net For Stair Railing
Quick Details
-
Material:
-
STAINLESS STEEL WIRE
-
Type:
-
Weave Wire Mesh
-
Application:
-
Protecting Mesh
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
EN-SSRM
-
Brand Name:
-
Enzar
-
Processing Service:
-
Weaving
-
Usage:
-
curtain wall,partition,ceiling,etc
-
color:
-
silver
-
Packing:
-
Carton
-
Product name:
-
Stainless Steel Wire Rope Mesh Net For Stair Railing

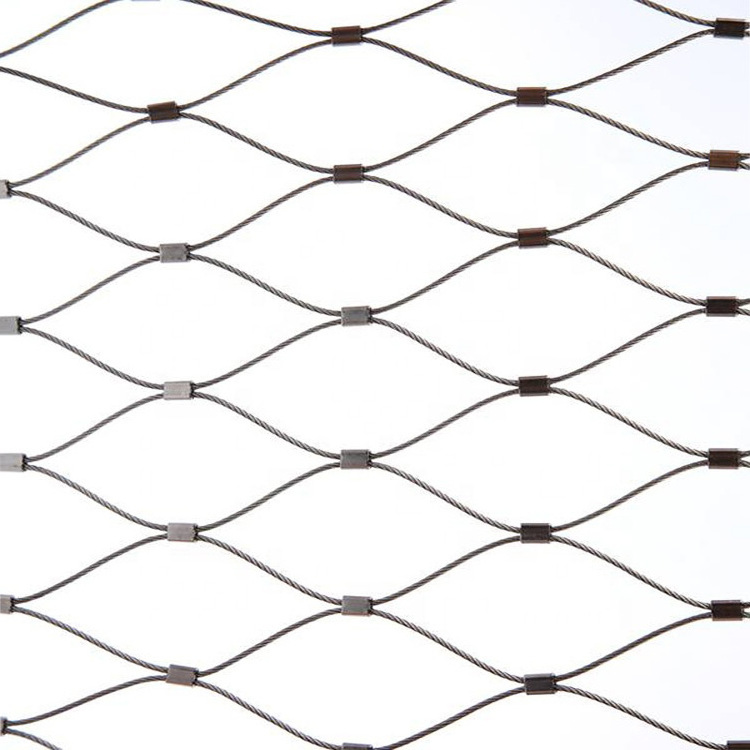

Decorative Ferrule Flexible Stainless Steel Wire Rope Mesh Net For Stair Railing
Material:304, 304L, 316, 316L.
Ferrule material:tinned copper, nickel plated copper, stainless steel.
Surface treatment:silver or black oxide finish.
Structures of wire cable:7 × 7, 7 × 19.
Cable diameter:1.0–5.0 mm.
Diamond sizes:20–200 mm.
Mesh opening angles:20°, 30°, 60°, 70°, 75°. Mesh aperture at 60° as standard opening.
Connection: ferrule or knotted.
Certification: certified to EN1263-1 for static and dynamic load capacity.
Feature:
- Stainless steel provides the highest corrosion resistance.
- Elegant and robust.
- Light, robust yet transparent.
- UV and weather resistant.
- Flexible and pliable.
- Climb resistant and prevents a secure foothold.
- The minimum visual impact on views.
- Recyclable.
- Good price-benefit-ratio.
- Easy installation and low maintenance.
- Weave opening, meet any exact specification.
The type of stainless steel rope mesh:
There are two types of flexible wire rope meshes in construction: ferrule type and knotted.
|
Flexible Stainless Steel Cable Mesh |
||
|
Type |
Knotted cable mesh |
Ferrule cable mesh |
|
Combination |
Inter-woven |
Seamless ferrule |
|
Hole pattern |
90 degree diamond hole |
60 degree diamond hole |
|
Material |
SS304, 316, 316L, etc |
|
|
Cable diameter |
1 ~ 4 mm |
|
|
Cable structure |
7 × 7 (1.5 mm, 2 mm or 2.5 mm), 7 × 19 (3 mm, 4 mm) |
|
Orientation Options
Stainless steel wire rope mesh can be installed horizontally or vertically depending on the actual engineering needs.
Horizontal Vertical
1. Green Facade - Cable System for Most Climbing Plants
2. Aviary Netting - Lightweight, Durable and Long Lasting
3. Cable Zoo Mesh - Solution to Enclosing Most Animals
4. Helipad Safety Net - Modular Heliport Webbing
5. Safety Net - Structural Measure to Prevent Suicide
6. Cable Mesh - Excellent Solution to Safety
7. Steel Mesh Balustrade - bridge, stair, balcony, path
